Wholesale QN series :CFM45QN-09 Face Milling Cutter

Home / Product / Milling Cutter / Face Milling Cutter / QN series :CFM45QN-09 Face Milling Cutter
FACE MILL CUTTER;Kr=45°

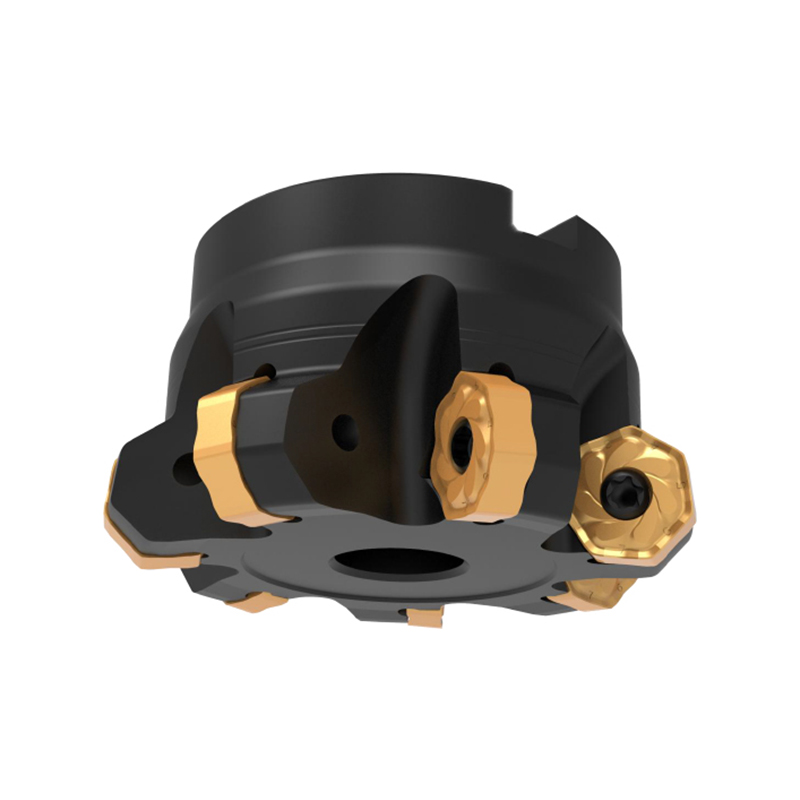

QN series :CFM45QN-09 Face Milling Cutter

FACE MILL CUTTER;Kr=45°
  • FEATURE
  • INQUIRY
FEAURES

  • Cutter DIA φ63~φ250mm
  • The blade is double-sided 14-edge type, which is economical
  • Suitbale for steel, stainless steel, cast iron etc.

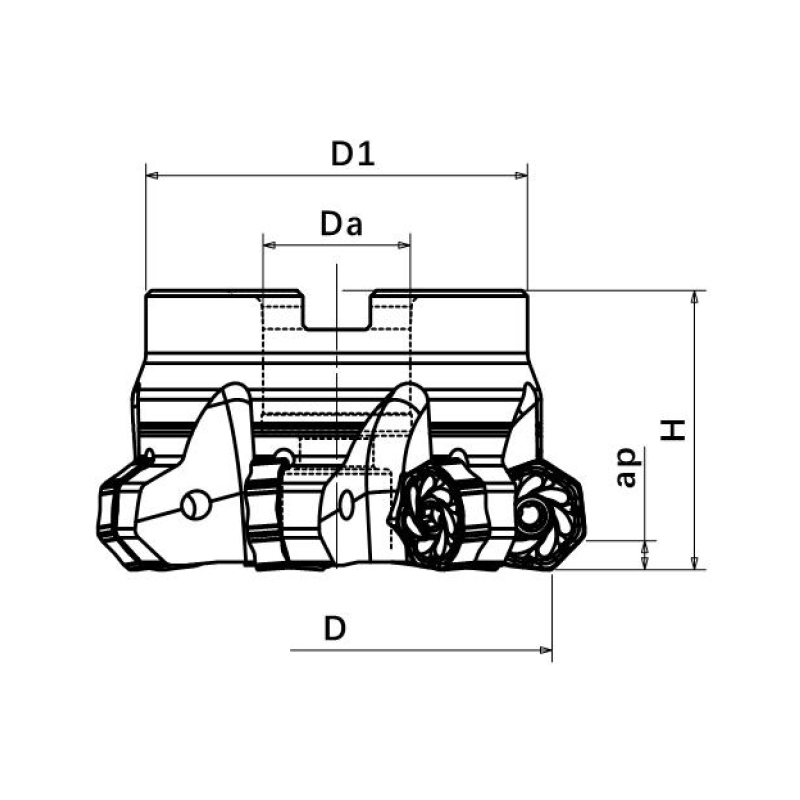

MODEL



DIMENSION MM

CONNE

CTOR

KG

INSERT

D

D1

H

ap

Da

CFM45QN-563A22R-09

5

63

74.9

50

5

22

A

0.9

 QNKU 0906

CFM45QN-663A22R-09

6

63

74.9

50

5

22

A

0.9

CFM45QN-680A27R-09

6

80

91.9

50

5

27

A

1.4

CFM45QN-780A27R-09

7

80

91.9

50

5

27

A

1.5

CFM45QN-7100B32R-09

7

100

112

55

5

32

B

2.4

CFM45QN-9100B32R-09

9

100

112

55

5

32

B

2.5

CFM45QN-8125B40R-09

8

125

137

63

5

40

B

3.5

CFM45QN-10125B40R-09

10

125

137

63

5

40

B

3.6

CFM45QN-12125B40R-09

12

125

137

63

5

40

B

3.4

CFM45QN-10160C40R-09

10

160

172

63

5

40

C

4.8

CFM45QN-12160C40R-09

12

160

172

63

5

40

C

4.8

CFM45QN-14160C40R-09

14

160

172

63

5

40

C

4.8

CFM45QN-12200C60R-09

12

200

212

63

5

60

C

6.8

CFM45QN-16200C60R-09

16

200

212

63

5

60

C

6.9

CFM45QN-16250C60R-09

16

250

262

63

5

60

C

11.5

CFM45QN-20250C60R-09

20

250

262

63

5

60

C

11.5


◎Standard cutter head without internal coolant; inserts to be ordered separately

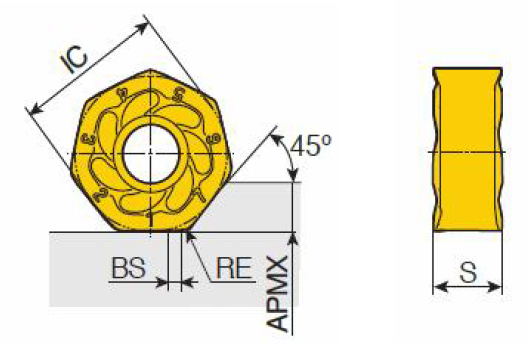

INSERT MODEL

EDGE

LONG

DIMENSION MM

GRADE

IC

S

ap

r

CT5320

CT5420

CT7320

CT7420

CT8320

CT8330

CT8420

QNKU 0906NB-MM

09

18.5

6. 35

5.5

1.0










ACCESSORY
MODEL SCREW WRENCH
CFM45QN-09 CSG5016 CTS20W
