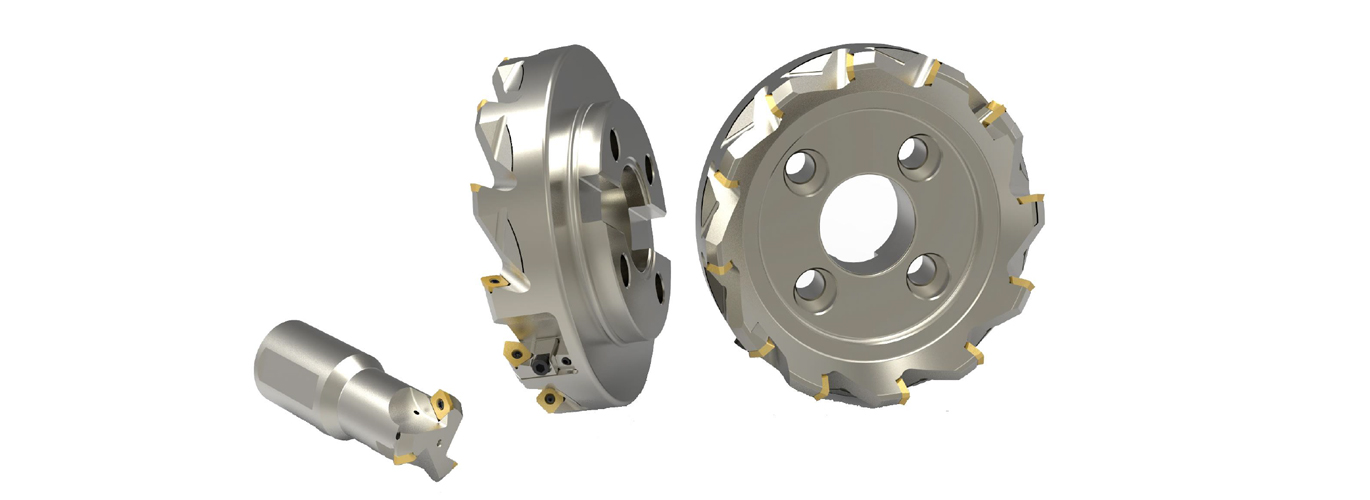

SE SERIES：CFM45SE Face Milling Cutter

FACE MILL CUTTER，Kr=45°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ50～φ250mm
Positive large rake angle inserts for faster cutting and wiper inserts to improve the surface quality of the workpiece

MODEL		DIMENSION MM					CONNE CTOR	KG	FOR INSERT
MODEL		D	D1	Da	L	ap	CONNE CTOR	KG	FOR INSERT
CFM45SE-450A22R-12	4	50	62	22	40	6	A	0.3	SEKT 12T3
CFM45SE-563A22R-12	5	63	75	22	40	6	A	0.5
CFM45SE-680A27R-12	6	80	92	27	50	6	A	1.2
CFM45SE-7100B32R-12	7	100	112	32	50	6	B	1.2
CFM45SE-8125B40R-12	8	125	137	40	63	6	B	2.6
CFM45SE-10160C40R-12	10	160	172	40	63	6	C	4.3
CFM45SE-12200C60R-12	12	200	212	60	63	6	C	7.6
CFM45SE-14250C60R-12	14	250	262	60	63	6	C	13.5

◎Standard cutter head without internal coolant

◎Blades to be ordered separately

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CFM45SE	CSC3580	CTS15W

MODEL	EDGE LENGTH	DIMENSION MM						GRADE
MODEL	EDGE LENGTH	L	OI.C	S	Od	bs	R	CT5320	CT7420	CT8240	CT8420
SEKT 12T3M-PM	12	13.4	13.4	3.97	4. 1	2. 55	—	•	•	•	•
