Three-sided edge milling cutter: Fixed flange type

ZNV Vertical three-sided INSERT series:CSMZN…R Milling Cutter

Three-sided edge milling cutter: Fixed flange type
  • FEATURE
  • INQUIRY
FEAURES

  • Cutter DIAφ80~φ160mm
  • Flange type three-sided milling cutter The strength of the vertical blade is good, which makes the tool safer
  • Suitable for all kinds of slot milling

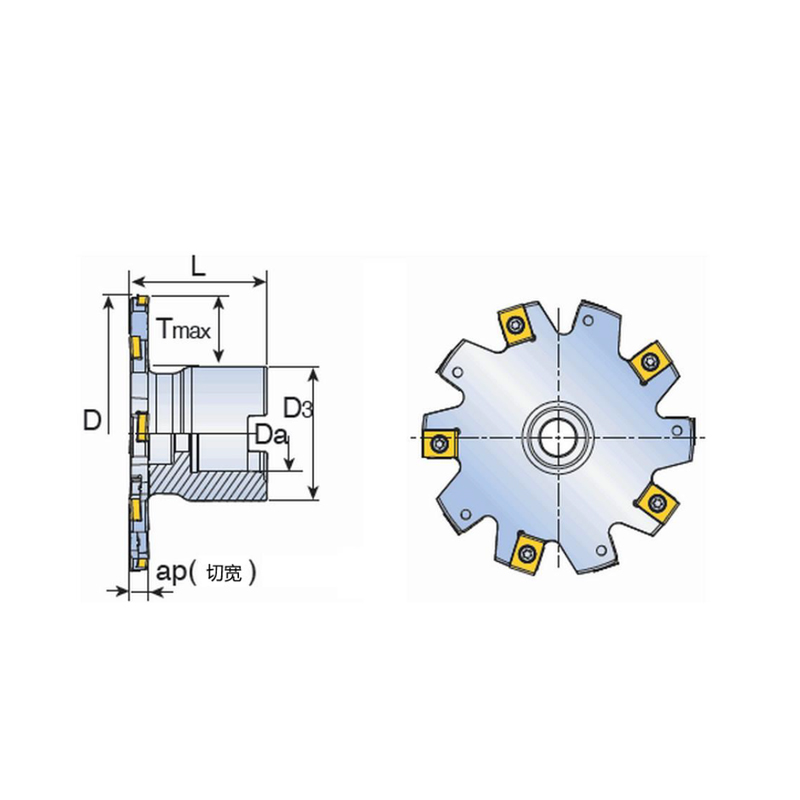

MODEL



ap

(mm)

DIMENSION MM

CONNE

CTOR

kg

INSERTS

D

Da

D3

L

Tmax

CSMZN-1080W04A22R-023

5+5

4

80

22

40

50

20.0

A

0.4

ZNHT 023

CSMZN-12100W04A27R-023

6+6

4

100

27

48

50

26.0

A

0.6

CSMZN-1080W05A22R-028

5+5

5

80

22

40

50

20.0

A

0.5

ZNHT 028

CSMZN-12100W05A27R-028

6+6

5

100

27

48

50

26.0

A

0.7

CSMZN-1080W06A22R-033

5+5

6

80

22

40

50

20.0

A

0.6

ZNHT 033

CSMZN-12100W06A27R-033

6+6

6

100

27

48

50

26.0

A

0.7

CSMZN-14125W06B40R-033

7+7

6

125

40

70

50

25.0

B

1.2

CSMZN-18160W06B40R-033

9+9

6

160

40

70

50

43.0

B

1.5


◎STANDARD CUTTER WITHOUT I C
◎INSERTS TO BE ORDERED SEPARATELY



ACCESSORY

MODEL

SCREW

WRENCH





CSMZN-023

CSX2531

CTS08W

CSMZN-028

CSX2542

CTS08W

CSMZN-033

CSX2553

CTS08W
