CH…3D-C Head changeable drill

Solid Carbide Internal Cooling Twist Drill

Contact now

FEATURE
INQUIRY

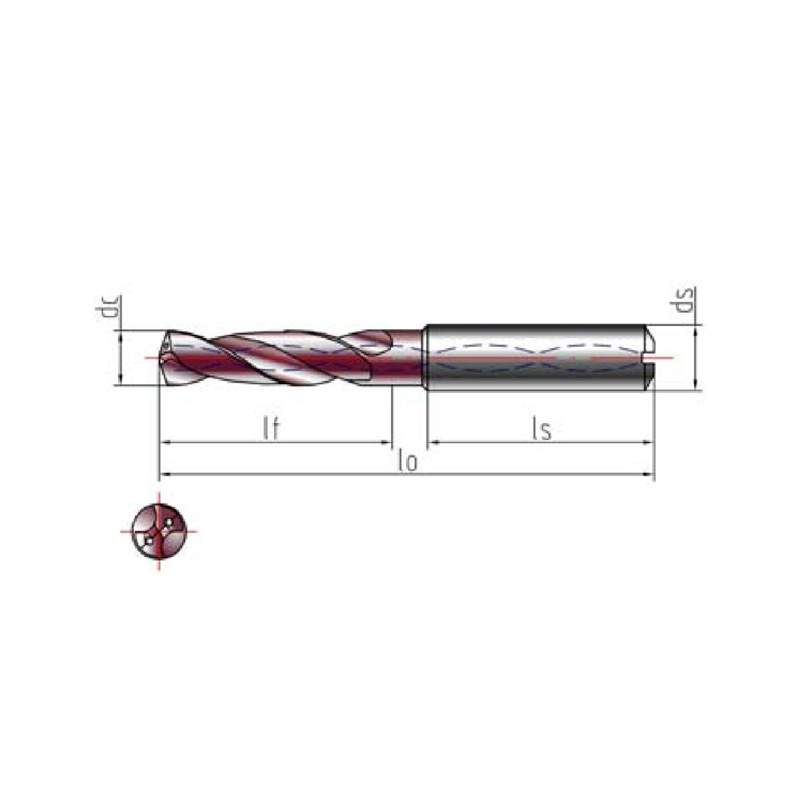

PRODUCT MODEL	DIMENSION					threaded bottom hole
PRODUCT MODEL	dc	If	ds	Is	lo	cutting tap	extrusion tap
CH-D033-3D-C	3.3	20	4	28	54	M4x0. 7	一
CH-D034-3D-C	3.4	20	4	28	54	NO. 8-32UNC	一
CH-D035-3D-C	3.5	20	4	28	54	M4x0. 5 NO. 8-36UNC	一
CH-D036-3D-C	3.6	20	4	28	54	一	一
CH-D037-3D-C	3.7	20	4	28	54	一	M4x0.7
CH-D038-3D-C	3.8	24	4	28	58	一	M4x0.5
CH-D039-3D-C	3.9	24	4	28	58	NO. 10-24UNC	一
CH-D040-3D-C	4.0	24	4	28	58	一	一
CH-D041-3D-C	4. 1	24	6	36	66	NO. 10-32UNF	一
CH-D042-3D-C	4.2	24	6	36	66	M5x0. 8	一
CH-D043-3D-C	4.3	24	6	36	66	一	一
CH-D044-3D-C	4.4	24	6	36	66	一	一
CH-D045-3D-C	4.5	24	6	36	66	M5x0. 5 NO. 12-24UNC	一
CH-D046-3D-C	4.6	24	6	36	66	NO. 12-28UNF	M5x0. 8
CH-D047-3D-C	4.7	24	6	36	66	NO. 12-32UNEF	一
CH-D048-3D-C	4.8	28	6	36	66	一	一
CH-D049-3D-C	4.9	28	6	36	66	一	一
CH-D050-3D-C	5.0	28	6	36	66	M6xl	一
CH-D051-3D-C	5.1	28	6	36	66	1/4-20UNC	一
CH-D052-3D-C	5.2	28	6	36	66	一	一
CH-D053-3D-C	5.3	28	6	36	66	M6x0. 75	一

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional CH…3D-C Head changeable drill suppliers and Wholesale CH…3D-C Head changeable drill company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
