MICRO-ADJUST CLAMP

CDJ Boring Cutter

MICRO-ADJUST CLAMP
  • FEATURE
  • INQUIRY
FEAURES

  • Fine adjustment tool holder Fine-tuning precision radius 0.005/div The maximum radial adjustment is 1mm in diameter, and the axial adjustment is 1mm

PRODUCT MODEL

LEFT/RI

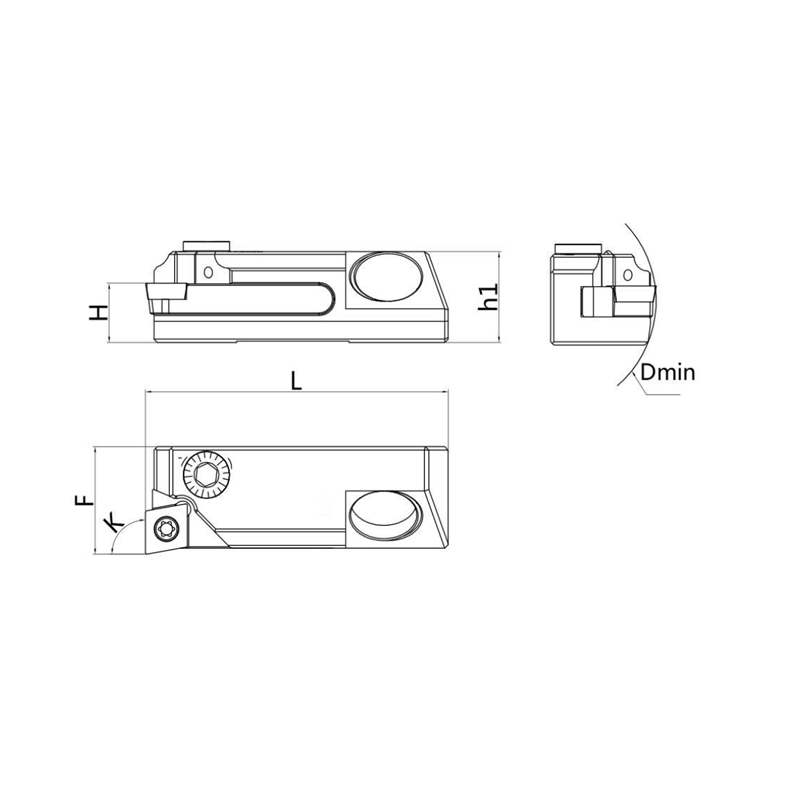

DIMENSIONS

INSERT

SCREW

WRENC

GHT

K

H

F

L

hi

Drain

R

H

CDJ90_L16_CC06R

RIGHT

HAND

90。

8.5

16

45.8

13.5

28

0.4

CC…0602

CSC2560

CTS08W

CDJ95_L16_CC06R

95。

8.5

16

45.8

13.5

28

0.4

CDJ90_L22_CC09R

90。

10.5

22

48.3

15.5

36

0.4

CC…09T3

CSC4090

CTS15W

CDJ95_L22_CC09R

95。

10.5

22

48.3

15.5

36

0.4

CDJ90_L16_TP09R

90。

8.5

16

45.8

13.5

28

0.4

TP…0902

CSC2250

CTS07W

CDJ95_L16_TP09R

95。

8.5

16

45.8

13.5

28

0.4

CDJ90_L16_TC09R

90。

8.5

16

45.8

13.5

28

0.4

TC…0902

CDJ95_L16_TC09R

95。

8.5

16

45.8

13.5

28

0.4

CDJ90_L20_TC11R

90。

8.5

20

45.8

13.5

36

0.4

TC…1102

CSC2560

CTS08W

CDJ95_L20_TC11R

95。

8.5

20

45.8

13.5

36

0.4

CDJ90_L20_TF11R

90。

9.3

20

45.8

13.5

36

0.4

TP…1103

CDJ95_L20_TP11R

95。

9.3

20

45.8

13.5

36

0.4

CDJ90_L16_CC06L

left hand

90。

8.5

16

45.8

13.5

28

0.4

CC…0602

CSC2560

CTS08W

CDJ95_L16_CC06L

95。

8.5

16

45.8

13.5

28

0.4

CDJ90_L22_CC09L

90。

10.5

22

48.3

15.5

36

0.4

CC…09T3

CSC4090

CTS15W

CDJ95_L22_CC09L

95。

10.5

22

48.3

15.5

36

0.4

CDJ90_L16_TP09L

90。

8.5

16

45.8

13.5

28

0.4

TP…0902

CSC2250

CTS07W

CDJ95_L16_TP09L

95。

8.5

16

45.8

13.5

28

0.4

CDJ90_L16_TC09L

90。

8.5

16

45.8

13.5

28

0.4

TC…0902

CDJ95_L16_TC09L

95。

8.5

16

45.8

13.5

28

0.4

CDJ90_L20_TC11L

90。

8.5

20

45.8

13.5

36

0.4

TC…1102

CSC2560

CTS08W

CDJ95_L20_TC11L

95。

8.5

20

45.8

13.5

36

0.4

CDJ90_L20_TF11L

90。

9.3

20

45.8

13.5

36

0.4

TP…1103

CDJ95_L20_TP11L

95。

9.3

20

45.8

13.5

36

0.4


◎Inserts to be ordered separately;MIC. DIA0.01/div;MAX RADIAL 1mm,AXIAL ADJU. 1mm。

ACCESSORY
PRODUCT MODEL SCREW AXIAL SCREW Axial ring WRENCH WRENCH
CDJ CLA0502008 CLY0502008 CDJ12 CBL40 CBL30
