Boring Cutter

Equal Diameter Extension Adapter

CK

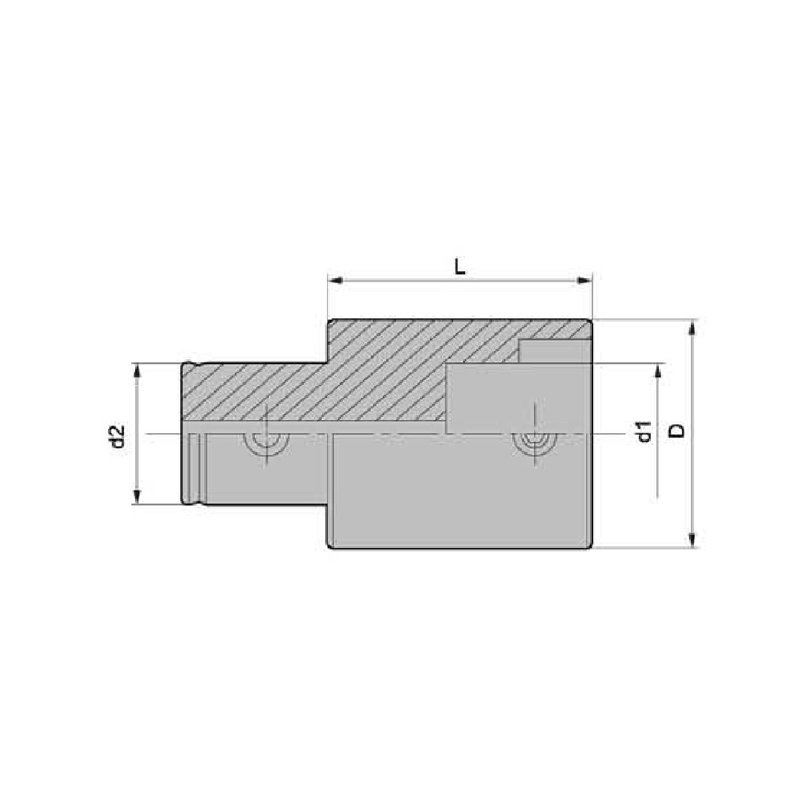

Equal Diameter Extension Adapter
  • FEATURE
  • INQUIRY
FEAURES

  • Equal diameter extension handle
  • Interface type CK1 ~CK7
  • Reducer extension adaptor
  • Interface type CK1 ~CK6

PRODUCT SERIES

TYPE

DIMENSION

CKCK side screw

WRENCH

KG

D

dl

d2

L

CK1-1-30

CK1

19

11

11

30

M050Z050-30P-D

L025

0. 06

CK2-2-30

CK2

24

14

14

30

M050Z060-30P-D

L025

0.09

CK3-3-30

CK3

31

18

18

30

M060Z090-30P-D

L03

0.14

CK4-4-45

CK4

39

22

22

45

M080Z120-30P-D

L04

0.29

CK4-4-60

CK4

39

22

22

60

M080Z120-30P-D

L04

0.47

CK5-5-60

CK5

50

28

28

60

M100Z160-30P-D

L05

0. 75

CK5-5-90

CK5

50

28

28

90

M100Z160-30P-D

L05

1. 18

CK6-6-60

CK6

64

36

36

60

M120Z200-30P-D

L06

1.46

CK6-6-100

CK6

64

36

36

100

M120Z200-30P-D

L06

2. 35

CK7-7-105

CK7

80

36

36

105

M200Z300-30P-D

L10

5.28



Unequal Diameter Extension Adapter

PRODUCT SERIES

DIMENSION

CKCK side screw

WRENC

H

KG

D1

D2

dl

d2

LI

L

CK2-1-36

11

19

14

24

30

36

M050Z050-30P-D

L025

0. 08

CK3-1-41

11

19

18

31

30

41

M050Z050-30P-D

L025

0.12

CK3-2-37

14

24

18

31

25

37

M050Z060-30P-D

L025

0.13

CK4-1-58

11

19

22

39

40

58

M050Z050-30P-D

L025

0.24

CK4-2-50

14

24

22

39

36

50

M050Z060-30P-D

L025

0.22

CK4-3-50

18

31

22

39

37

50

M060Z090-30P-D

L03

0. 30

CK5-1-60

11

19

28

50

40

60

M050Z050-30P-D

L025

0. 38

CK5-2-54

14

24

28

50

35

54

M050Z060-30P-D

L025

0. 38

CK5-2-74

14

24

28

50

55

74

M050Z060-30P-D

L025

0.45

CK5-3-47

18

31

28

50

29

47

M060Z090-30P-D

L03

0.46

CK5-3-72

18

31

28

50

54

72

M060Z120-30P-D

L03

0. 54

CK5-4-42

22

39

28

50

25

42

M080Z120-30P-D

L04

0.43

CK5-4-67

22

39

28

50

50

67

M080Z050-30P-D

L04

0. 62

CK6-1-70

11

19

36

64

40

70

M050Z060-30P-D

L025

0. 90

CK6-2-63

14

24

36

64

45

63

M050Z060-30P-D

L025

0. 66

CK6-2-93

14

24

36

64

75

93

M050Z090-30P-D

L025

0.71

CK6-3-56

18

31

36

64

39

56

M060Z090-30P-D

L03

0. 70

CK6-3-96

18

31

36

64

79

96

M060Z120-30P-D

L03

0.91

CK6-4-51

22

39

36

64

35

51

M080Z120-30P-D

L04

0. 76

CK6-4-101

22

39

36

64

85

101

M080Z160-30P-D

L04

1.19

CK6-5-41

28

50

36

64

25

41

M100Z160-30P-D

L05

0. 72

CK6-5-91

28

50

36

64

75

91

M100Z050-30P-D

L05

1.46

CK7-6-106

28

50

36

64

75

91

M100Z050-30P-D

L05

3.12
