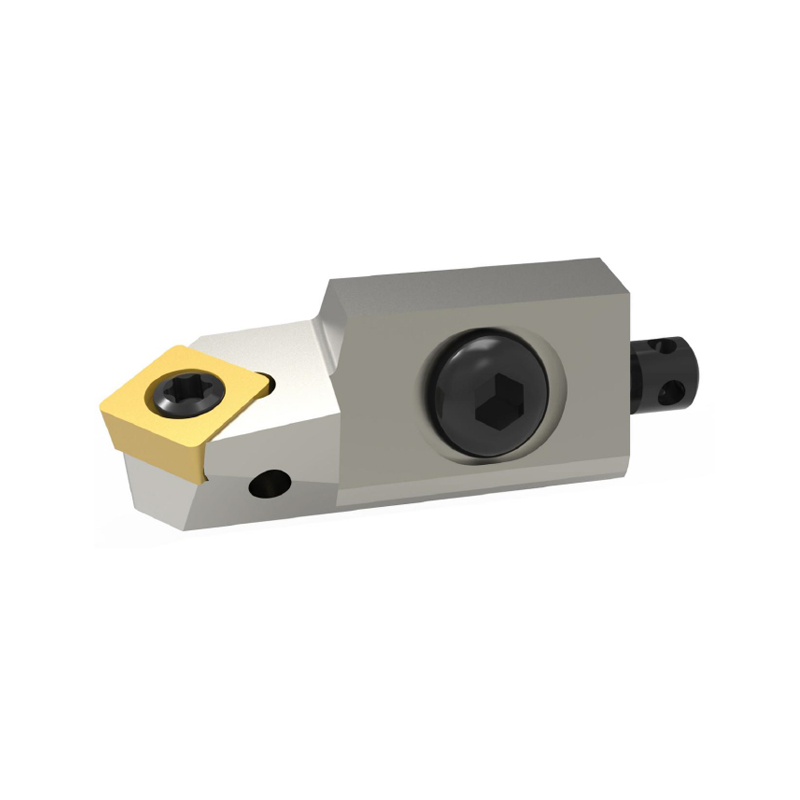

SSKCR/L 、 SSSCR/L Boring Cutter

CLAMP

Contact now

FEATURE
INQUIRY

FEAURES

Ordinary boring holder

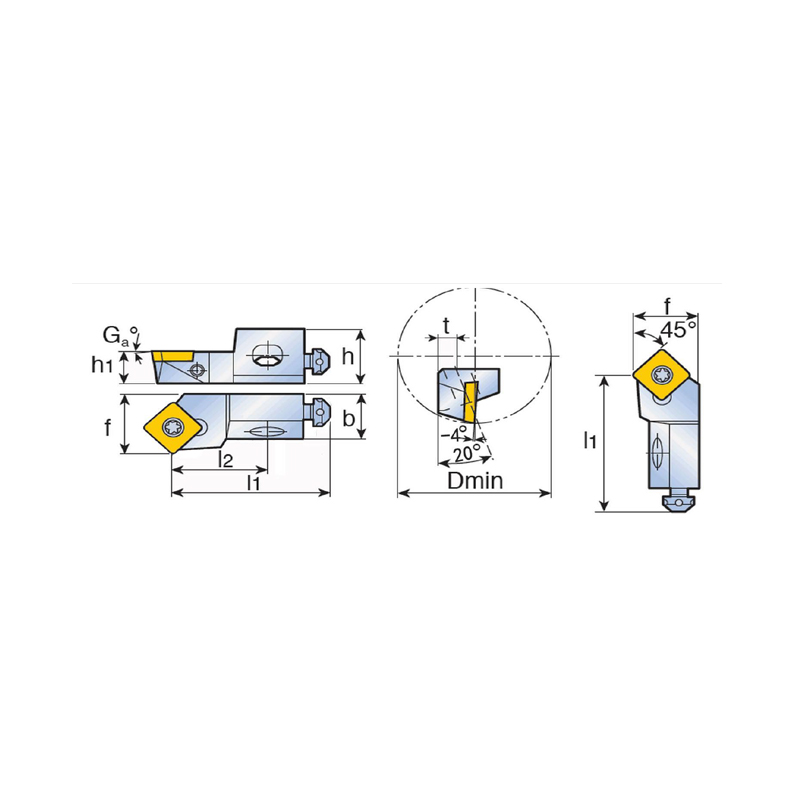

SSSCR/L, 45°

MODEL		L/R	DIMENSIONS									INSERTS
MODEL		L/R	h	hi	b	11	12	f	Ga	t	Dmin	INSERTS
SSSCR	10CA-09	RIGHT	15	10	11	44	24	14	-4	5	40	SC…09T3
SSSCR	12CA-12	RIGHT	20	12	15	47	27	20	-4	6	50	SC…1204
SSSCL	10CA-09	LEFT	15	10	11	44	24	14	-4	5	40	SC…09T3
SSSCL	12CA-12	LEFT	20	12	15	47	27	20	-4	6	50	SC…1204

◎INSERT to be ordered separately； For acces

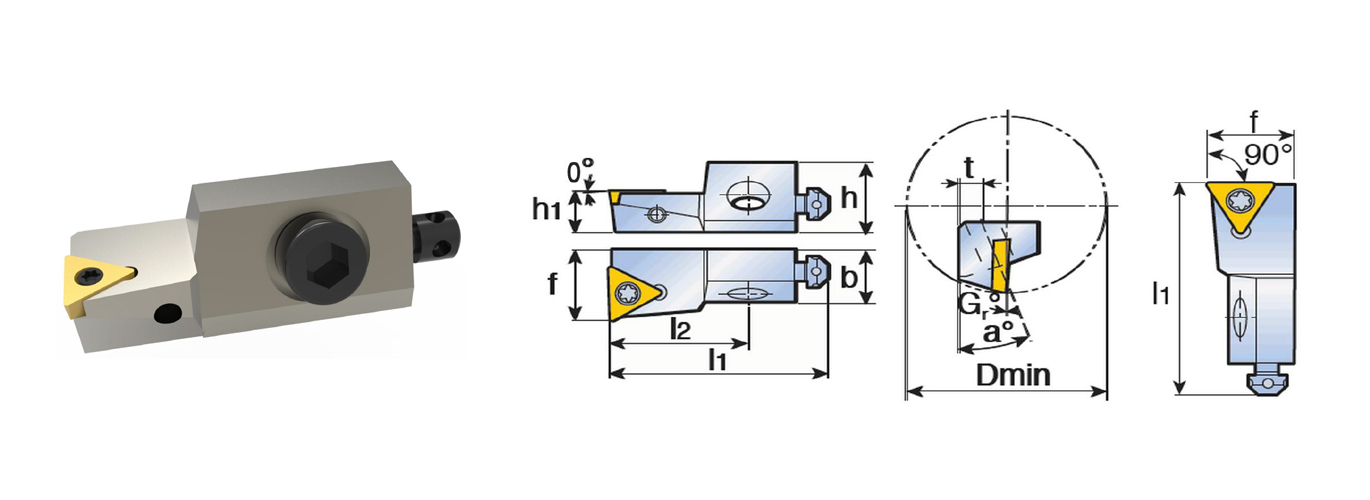

STFCR/L, 90°

MODEL	L/R	DIMENSIONS									INSERTS
MODEL	L/R	h	hi	b	11	12	f	Gr	t	Dmin	INSERTS
STFCR 10CA 09	RIGHT	15	10	10	50	30	14	-3	5		TC…0902
STFCR 10CA 11		15	10	11	50	30	14	-3	5	40	TC…1102
STFCR 12CA 16		20	12	15	55	35	20	-3	6	50	TC…16T3
STFCR 16CA 16		21	16	20	63	38	25	- 6	—	50	TC…16T3
STFCL 10CA 09	LEFT	15	10	10	50	30	14	-3	5		TC…0902
STFCL 10CA 11		15	10	11	50	30	14	-3	5	40	TC…1102
STFCL 12CA 16		20	12	15	55	35	20	-3	6	50	TC…16T3
STFCL 16CA 16		21	16	20	63	38	25	- 6	—	50	TC…16T3

◎INSERT to be ordered separately； For acces

NOTE：10CA ,α=20°

D16

12CA ,α=20°

16CA ,α=45°
