LN SERIES：CCM490LN Milling Cutter

CORN TYPE MILL CUTTER HOLDER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Blade turning diameterφ50 ～φ100mm
The insert has 4 right-hand 90° cutting edges, a combination of helical cutting edges and a large positive rake angle, making cutting easier.

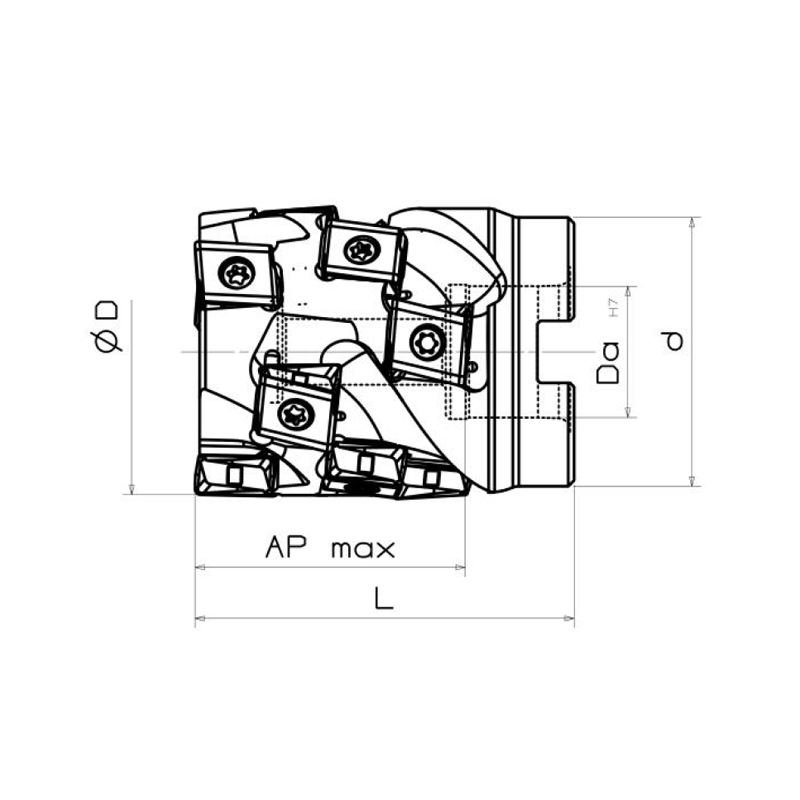

MODEL	kr		TEETH	DIMENSION					INSERT
MODEL	kr		TEETH	D	APmax	d	L	Da	INSERT
CCM490LN-3350A22R-12	90°	3	9	50	31.5	45	55	22	LNHU 1206
CCM490LN-3450A22R-12		3	12	50	42.0	45	65	22
CCM490LN-4463A27R-12		4	16	63	42.0	58	70	27
CCM490LN-4563A27R-12		4	20	63	52.5	58	80	27
CCM490LN-5580A32R-12		5	25	80	52.5	74	85	32
CCM490LN-54100A40R-16		5	20	100	57.0	94	90	40	LNHU 1608

◎STANDARD CUTTER WITHOUT INTERNAL COOLANT;INSERTS TO BE ORDERED SEPARATELY

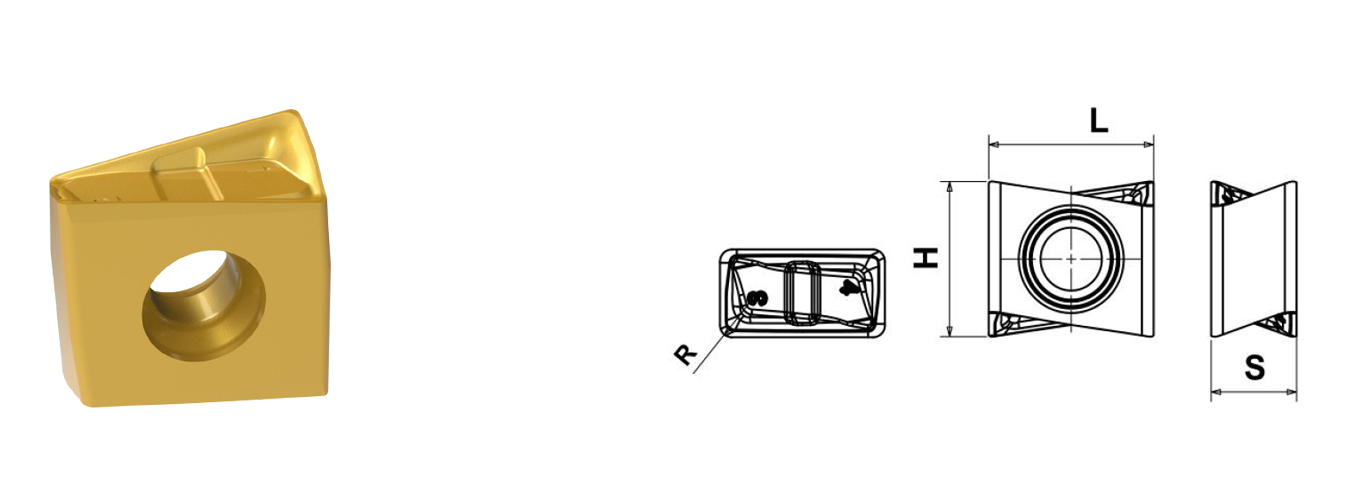

MODEL	EDGE LONG	KR (° )	DIMENSION					GRADE
MODEL	EDGE LONG	KR (° )	L	H	S	R	APmax	CT5320	CT7320	CT8320	CT101
LNHU 120608-M	12	90	12.7	13.0	6. 75	0.8	11.5	•	•	•
LNHU 120608-AL	12		12.7	13.0	6. 75	0.8	11.5				•
LNHU 160808-M	16		16.4	16.2	8.0	0.8	15.0	•	•	•

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CCM490LN-12	CSG4013-P	CTS15W-P
CCM490LN-16	CSG5016	CTS20W

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional LN SERIES：CCM490LN Milling Cutter suppliers and Wholesale LN SERIES：CCM490LN Milling Cutter company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.
