Threaded end mill shank,Kr=90°

ANSERIES:CE90AN-M End Milling Cutter

Threaded end mill shank,Kr=90°
  • FEATURE
  • INQUIRY
FEAURES

  • Blade turning diameterφ20~φ 40mm
  • Flat-mount clamping with 4 cutting edges, large positive rake angle helical cutting edge design, light cutting;
  • For roughing to finishing of steel, stainless steel, high temperature alloy and cast iron

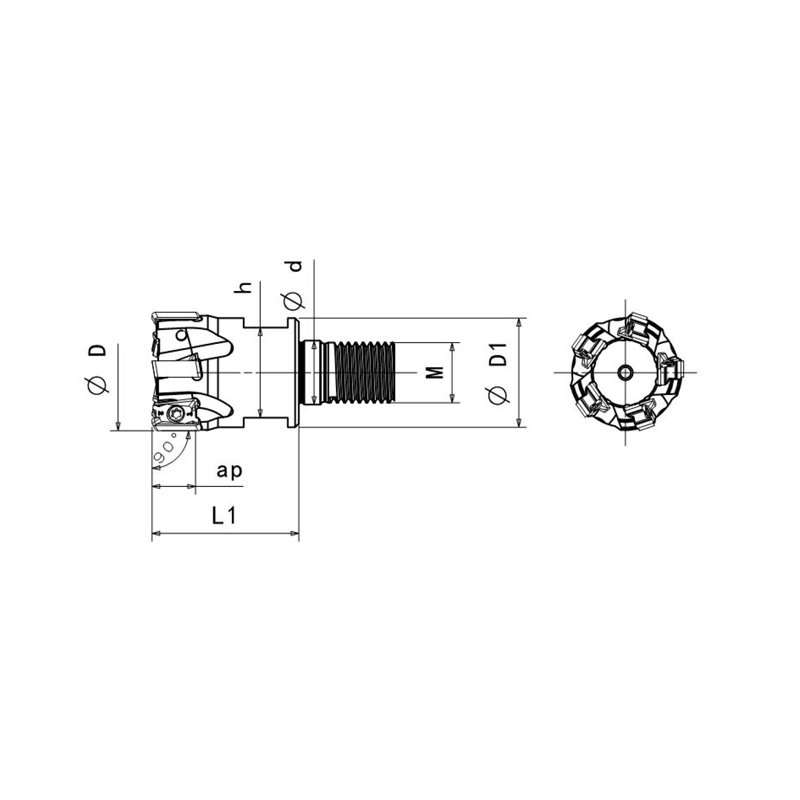

MODEL



DIMENSION

SUITABLE INSERT

D

D1

d

M

LI

h

ap

CE90AN-220M10R-12

2

20

18

10.5

M10

28

15

11.5

ANKU 1204

CE90AN-325M12R-12

3

25

21

12.5

M12

40

17

CE90AN-432M16R-12

4

32

29

17.0

M16

40

24

CE90AN-532M16R-12

5

32

29

17.0

M16

40

24

CE90AN-225M12R-17

2

25

21

12.5

M12

32

17

16.5

ANKU 17T6 ANHU 17T6

CE90AN-332M16R-17

3

32

29

17.0

M16

40

24

CE90AN-432M16R-17

4

32

29

17.0

M16

40

24

CE90AN-435M16R-17

4

35

29

17.0

M16

40

24

CE90AN-540M16R-17

5

40

29

17.0

M16

40

24



ACCESSORY

MODEL

DIA

SCREW

WRENCH





CE90AN-**-12

20、25、32、40

CSC3080

CTS10W

CE90AN-**-17

25、32

CSD4010

CTS15W

CE90AN-**-17

40

CSC4013

CTS15W
