End Milling Cutter

Home / Product / Milling Cutter / End Milling Cutter / ANSERIES:CE90AN-Y End Milling Cutter

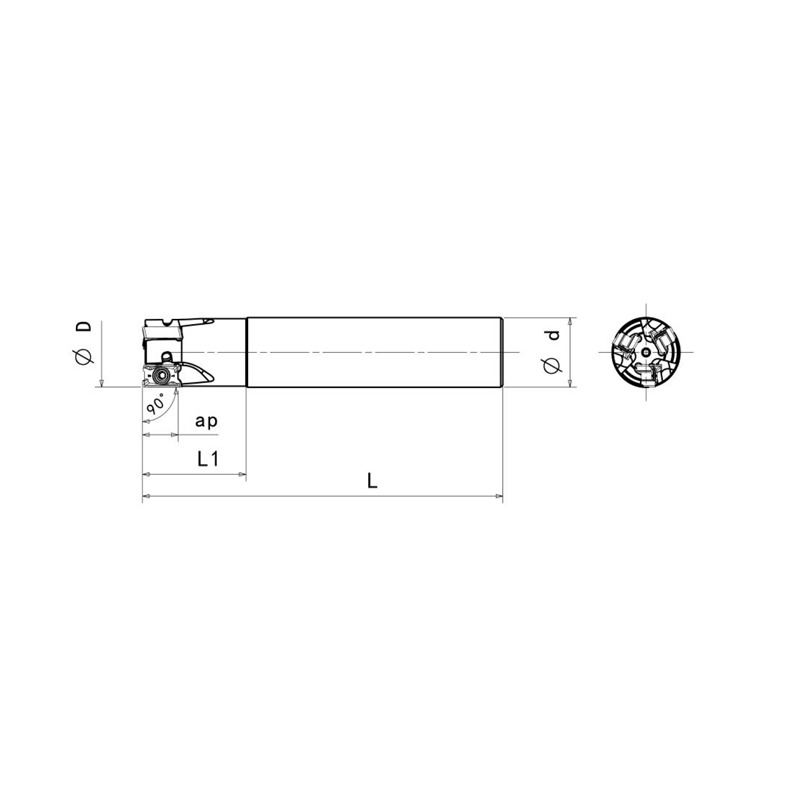

END MILL CUTTER,Kr=90°

ANSERIES:CE90AN-Y End Milling Cutter

END MILL CUTTER,Kr=90°
  • FEATURE
  • INQUIRY

MODEL

KR



DIMENSION



SUITABLE INSERT

D

d

L

LI

ap

CE90AN-220L150Y20R-12

90°

2

20

20

150

28

11.5

0. 33

ANKU 1204

CE90AN-320L90Y20R-12

3

20

20

90

28

0.21

CE90AN-320L150Y20R-12

3

20

20

150

28

0. 33

CE90AN-325L170Y25R-12

3

25

25

170

43

0. 63

CE90AN-425L100Y25R-12

4

25

25

100

43

0. 33

CE90AN-425L170Y25R-12

4

25

25

170

43

0. 59

CE90AN-432L200Y32R-12

4

32

32

200

49

1.16

CE90AN-532L110Y32R-12

5

32

32

110

49

0.61

CE90AN-532L200Y32R-12

5

32

32

200

49

1.17

CE90AN-540L200Y32R-12

5

40

32

200

49

1.22

CE90AN-225L100Y25R-17

2

25

25

100

43

16.5

0. 28

ANKU 17T6 ANHU 17T6

CE90AN-225L170Y25R-17

2

25

25

170

43

0. 58

CE90AN-332L110Y32R-17

3

32

32

110

49

0. 58

CE90AN-332L200Y32R-17

3

32

32

200

50

1.14

CE90AN-432L110Y32R-17

4

32

32

110

49

0. 58

CE90AN-432L200Y32R-17

4

32

32

200

50

1.14

CE90AN-340L200Y32R-17

3

40

32

200

50

1.21

CE90AN-440L200Y32R-17

4

40

32

200

50

1.20

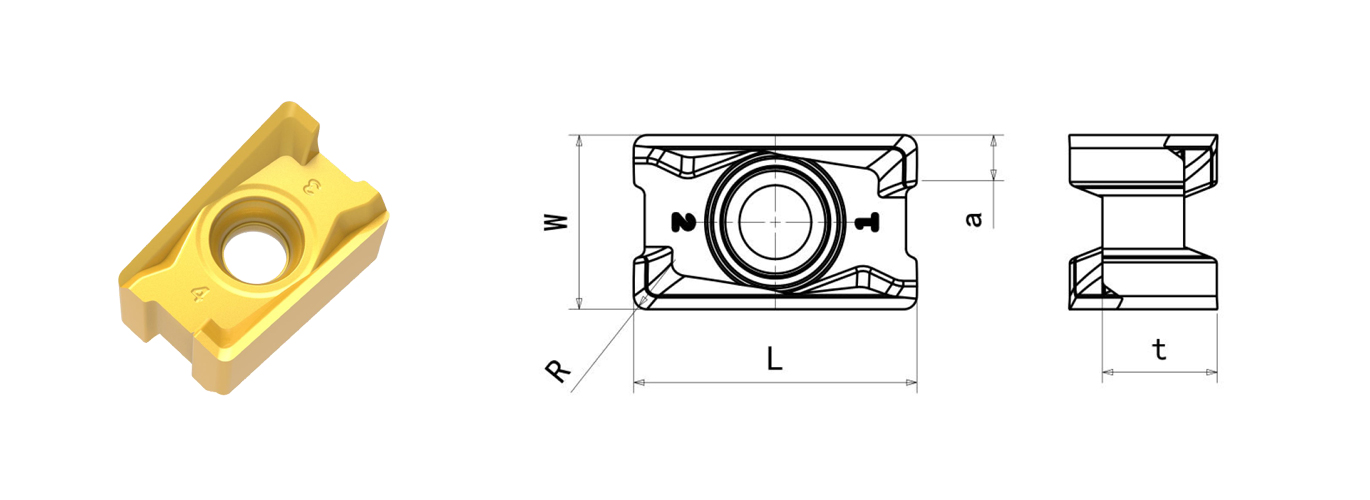

MODEL

EDGE

LEONG

KR

DIMENSION

GRADE

L

W

t

a

R

CT5320

CT7320

CT7420

CT8320

CT9320

ANKU

120404PFR-M

12

90°

12. 55

7.0

4. 84

1.7

0.4





ANHU

120404FFR-M

0.4

ANKU

120408PFR-M

0.8

ANKU

120408PER-MM

0.8

ANKU

120412PFR-M

1.2

ANKU

17T608PFR-M

17

90°

17.3

10.4

7. 03

2.7

0.8





ANKU

17T608PER-MM

0.8

ANHU

17T608PER-MM

0.8

ANHU

17T608PER-M

0.8

ANHU

17T608FER-SM

0.8

ANKU

17T616PFR-M

1.6



ACCESSORY

MODEL

DIA

SCREW

WRENCH





CE90AN-**-12

20、25、32、40

CSC3080

CTS10W

CE90AN-**-17

25、32

CSD4010

CTS15W

CE90AN-**-17

40

CSC4013

CTS15W
