Wholesale AP17SERIES:CE90AP End Milling Cutter

Home / Product / Milling Cutter / End Milling Cutter / AP17SERIES:CE90AP End Milling Cutter
END MILL CUTTER HOLDER

AP17SERIES:CE90AP End Milling Cutter

END MILL CUTTER HOLDER
  • FEATURE
  • INQUIRY
FEAURES

  • Blade turning diameterφ25 ~φ40mm
  • 90 degree for clearance angle, for shoulder milling, ramp milling

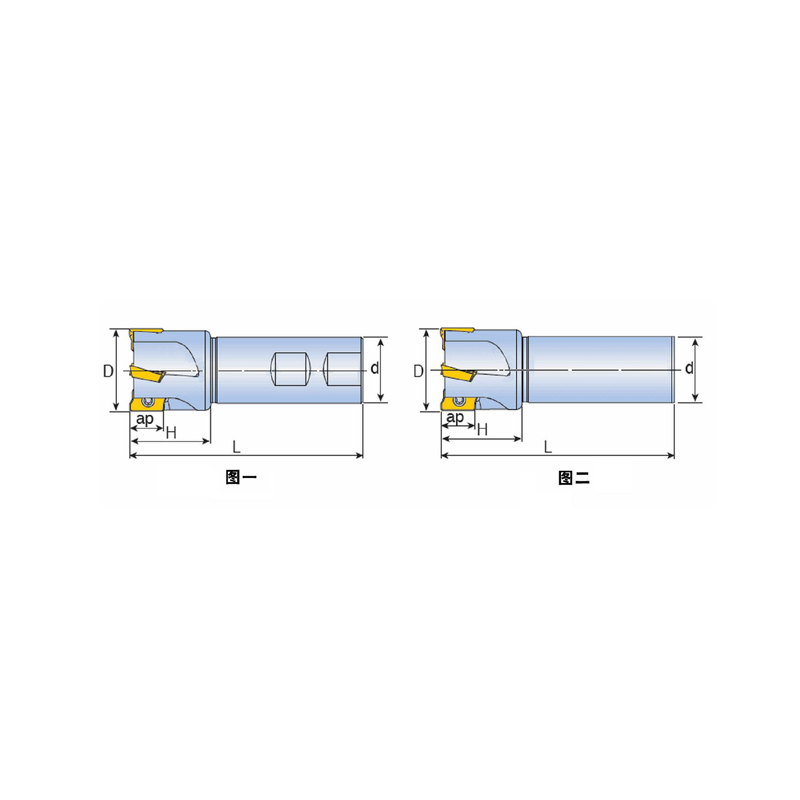

MODEL



DIMENSION

PIC

SUITABLE INSERT

D

d

L

H

ap

CE90AP-225L210Y24R-17

2

25

24

210

40

16.1

APKT 1705

CE90AP-225L210Y25R-17

2

25

25

210

40

16.1

CE90AP-226L200Y25R-17

2

26

25

200

40

16.1

CE90AP-226L250Y25R-17

2

26

25

250

40

16.1

CE90AP-232L250Y32R-17

2

32

32

250

65

16.1

CE90AP-233L300Y32R-17

2

33

32

300

40

16.1

CE90AP-332L200Y32R-17

3

32

32

200

65

16.1

CE90AP-333L200Y32R-17

3

33

32

200

55

16.1

CE90AP-333L250Y32R-17

3

33

32

250

55

16.1

CE90AP-240L250Y32R-17

2

40

32

250

54

16.1

CE90AP-340L200Y32R-17

3

40

32

200

54

16.1

CE90AP-440L200Y32R-17

4

40

32

200

57

16.1


ACCESSORY

MODEL

SCREW

WRENCH





CE90AP

CSC4090

CTS15W

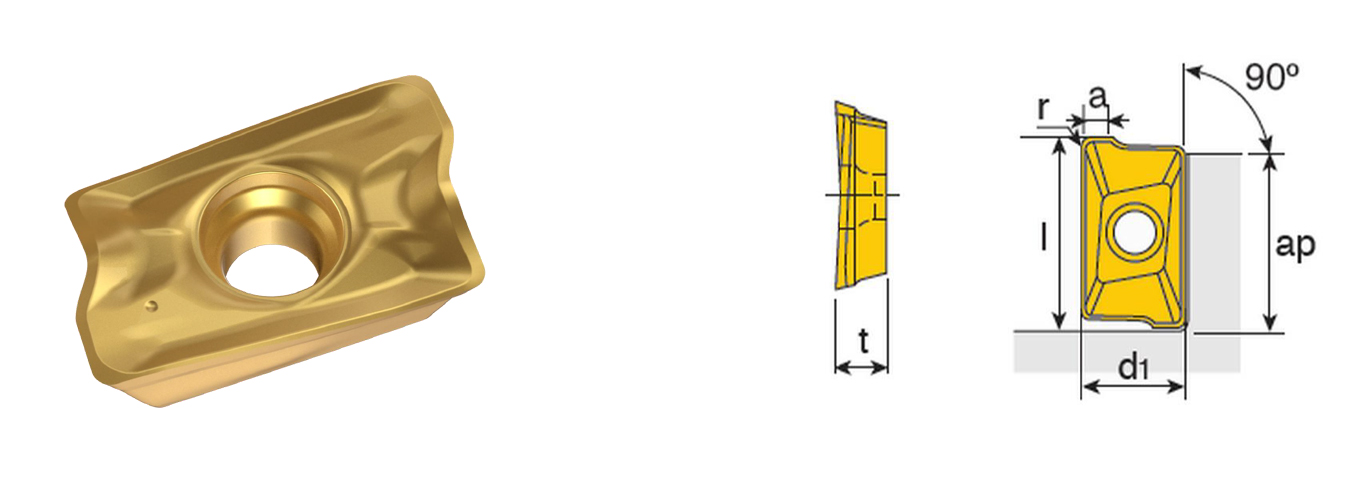

MODEL

EDGE LENGTH

DIMENSION

GRADE

d

ap

L

t

a

r

CT5320

CT7420

CT8320

CT9320

APKT 1705PER-EM

17

10.7

16. 1

18.5

5. 56

3.0

0.8



Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional AP17SERIES:CE90AP End Milling Cutter suppliers and Wholesale AP17SERIES:CE90AP End Milling Cutter company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

  • Industry experience: Over 20 years
  • Product Category: 10000+
  • Number of patents: 41
  • Plant area: 3000m²+
  • Technician: 30+
  • Annual Production Capacity: 90 million (100,000 steel products,
    10 million blades)
