AN SERIES：CFM90AN Face Milling Cutter

FACE MILL CUTTER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ40～φ160mm
Flat-mount clamping with 4 cutting edges, large positive rake angle helical cutting edge design,for fast cutting;
For roughing to finishing of steel, stainless steel, superalloy and cast iron.

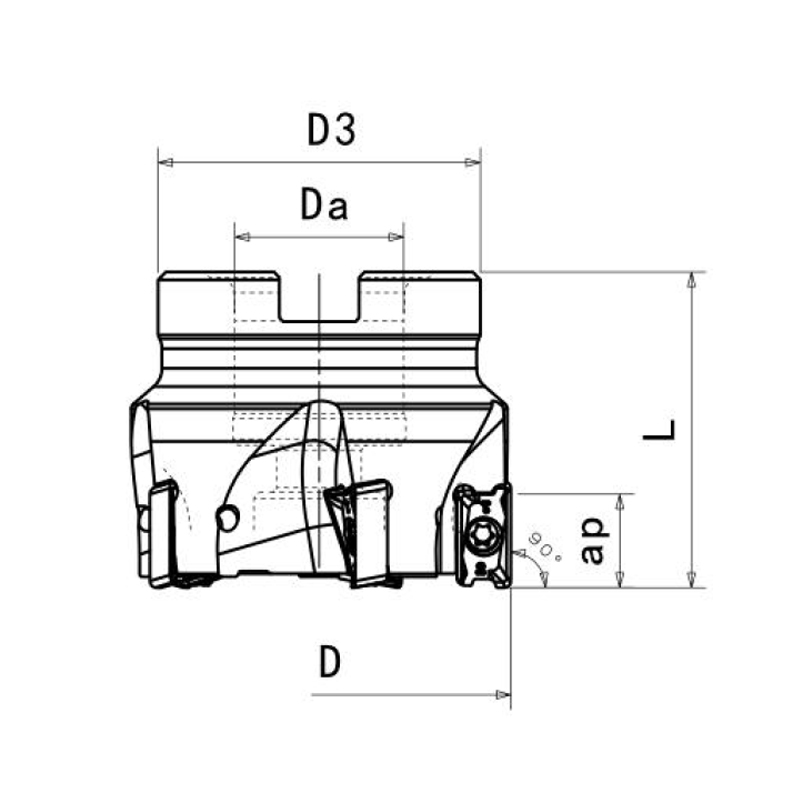

MODEL	KR		DIMENSION					kg	SUITABLE INSERT
MODEL	KR		D	Da	D3	L	ap	kg	SUITABLE INSERT
CFM90AN-440A16R-12	90。	4	40	16	37	40	11.5	0. 23	ANKU 1204
CFM90AN-640A16R-12		6	40	16	37	40	11.5	0. 22
CFM90AN-740A16R-12		7	40	16	37	40	11.5	0. 23
CFM90AN-550A22R-12		5	50	22	42	40	11.5	0.31
CFM90AN-750A22R-12		7	50	22	42	40	11.5	0. 32
CFM90AN-950A22R-12		9	50	22	42	40	11.5	0. 32
CFM90AN-663A22R-12		6	63	22	50	40	11.5	0. 56
CFM90AN-963A22R-12		9	63	22	50	40	11.5	0. 56
CFM90AN-880A27R-12		8	80	27	60	50	11.5	1.12
CFM90AN-1080A27R-12		10	80	27	60	50	11.5	1.11

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CFM90AN-**-12	CSC3080	CTS10W

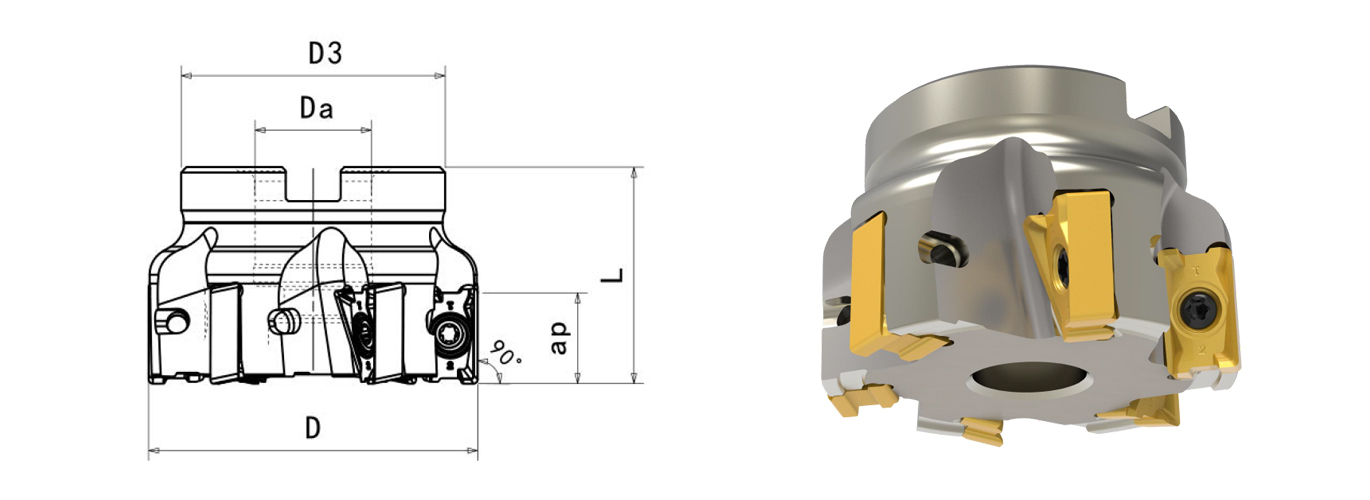

MODEL	KR		DIMENSION					kg	SUITABLE INSERT
MODEL	KR		D	Da	D3	L	ap	kg	SUITABLE INSERT
CFM90AN-440A16R-17	90°	4	40	16	38	40	16.5	0. 20	ANKU 17T6 ANHU 17T6
CFM90AN-540A16R-17		5	40	16	38	40	16.5	0.19
CFM90AN-450A22R-17		4	50	22	45	40	16.5	0. 28
CFM90AN-550A22R-17		5	50	22	45	40	16.5	0. 28
CFM90AN-650A22R-17		6	50	22	45	40	16.5	0. 27
CFM90AN-563A22R-17		5	63	22	47	40	16.5	0. 50
CFM90AN-663A22R-17		6	63	22	47	40	16.5	0. 49
CFM90AN-763A22R-17		7	63	22	47	40	16.5	0. 50
CFM90AN-580A27R-17		5	80	27	58	50	16.5	1.03
CFM90AN-780A27R-17		7	80	27	58	50	16.5	1.02
CFM90AN-980A27R-17		9	80	27	58	50	16.5	1.04
CFM90AN-6100B32R-17		6	100	32	85	50	16.5	1.58
CFM90AN-8100B32R-17		8	100	32	85	50	16.5	1.57
CFM90AN-11100B32R-17		11	100	32	85	50	16.5	1.64
CFM90AN-7125B40R-17		7	125	40	85	63	16.5	2. 93
CFM90AN-9125B40R-17		9	125	40	85	63	16.5	2. 98
CFM90AN-12125B40R-17		12	125	40	85	63	16.5	3. 00
CFM90AN-8160C40R-17		8	160	40	110	63	16.5	4. 67
CFM90AN-12160C40R-17		12	160	40	110	63	16.5	4. 78
CFM90AN-16160C40R-17		16	160	40	110	63	16.5	4. 75

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CFM90AN-**-17	CSC4013	CTS15W
