AP17 SERIES：TFM90AP Face Milling Cutter

FACE MILL CUTTER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ50～φ200mm

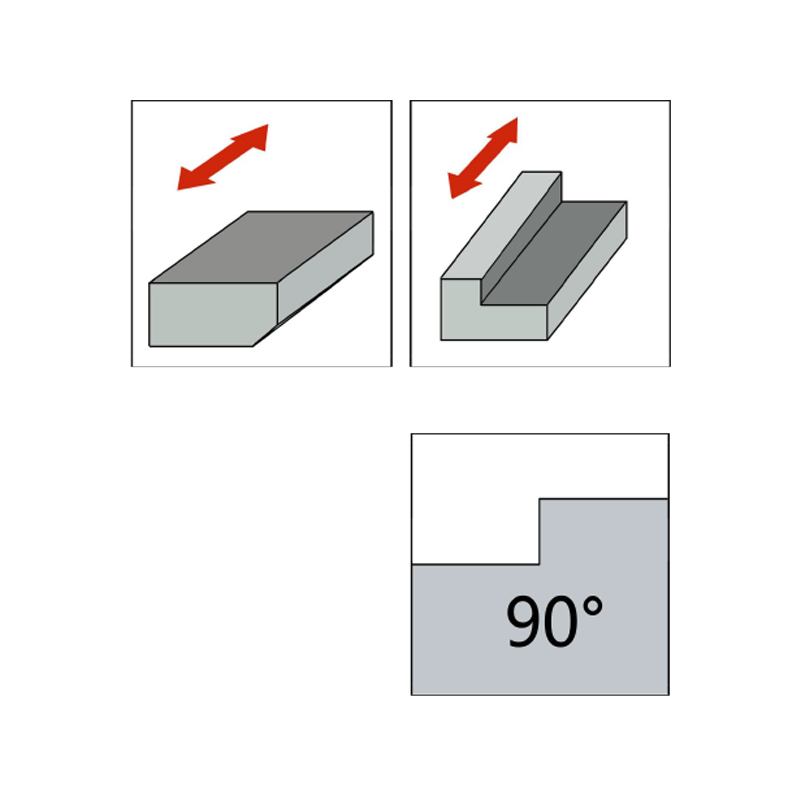

90 degree cutting edge angle, can be used for shoulder milling, ramping milling
Cutting edge length up to 16mm

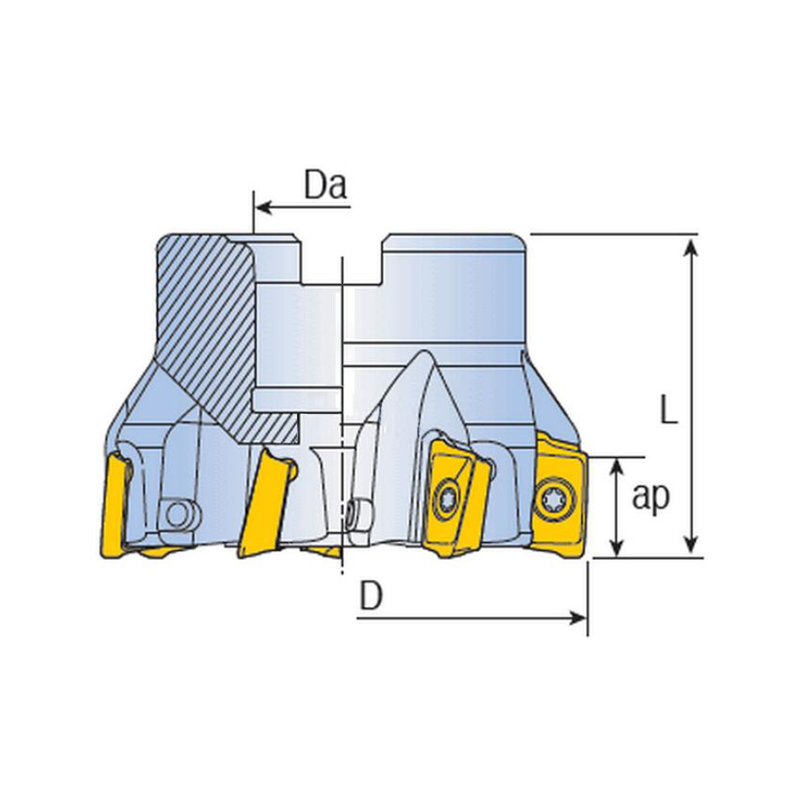

MODEL		DIMENSION				CONNECTOR	kg	SUITABLE INSERT
MODEL		D	Da	L	ap	CONNECTOR	kg	SUITABLE INSERT
TFM90AF 350-22R-17-B	3	50	22	40	16. 1	A	0.4	APKT 1705
TFM90AP 450-22R-17-B	4	50	22	40	16. 1	A	0.3
TFM90AP 550-22R-17	5	50	22	40	16. 1	A	0.4
TFM90AP 463-22R-17-B	4	63	22	40	16. 1	A	0.5
TFM90AF 663-22R-17	6	63	22	40	16. 1	A	0.5
TFM90AP 480-27R-17-B	4	80	27	50	16. 1	A	0.8
TFM90AF 680-27R-17	6	80	27	50	16. 1	A	0.9
TFM90AP 780-27R-17	7	80	27	50	16. 1	A	0.9
TFM90AP 6100-32R-17-B	6	100	32	50	16. 1	B	1.3
TFM90AP 8100-32R-17	8	100	32	50	16. 1	B	1.5
TFM90AF 7125-40R-17-B	7	125	40	63	16. 1	B	2.9
TFM90AP 8125-40R-17	8	125	40	63	16. 1	B	3.0
TFM90AF 9125-40R-17	9	125	40	63	16. 1	B	3. 1
TFM90AP 8160-40R-17-B	8	160	40	63	16. 1	C	4. 1
TFM90AF 10160-40R-17	10	160	40	63	16. 1	C	4.2
TFM90AP 12200-60R-17	12	200	60	63	16. 1	C	6. 1

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
TFM90AF	CSC4090	CTS15W
