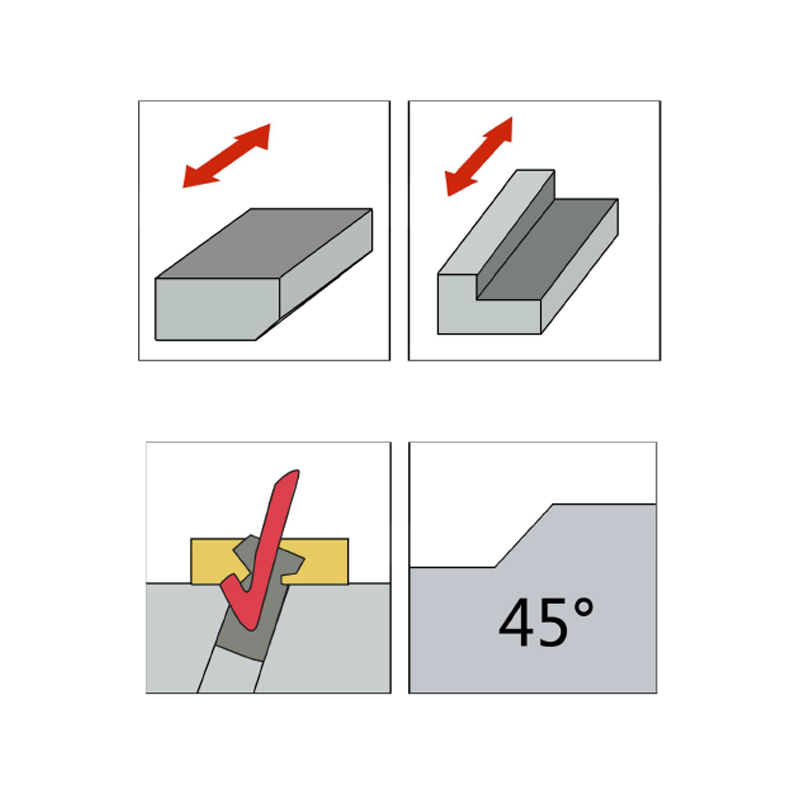

FACE MILL CUTTER,Kr=45°

HN SERIES:TFM45HNS Face Milling Cutter

FACE MILL CUTTER,Kr=45°
  • FEATURE
  • INQUIRY
FEAURES

  • Cutter DIAφ63~φ250mm
  • The insert is a doublesided slotting insert with 12 cutting edges, which is  economical


MODEL



DIMENSION (mm)

CONNE

kg

FOR INSERT

D

Dl

Da

L

ap

CTOR

TFM45HNS-563-22R-10

5

63

77

22

50

6. 1

A

0.8

HNKX 1006

TFM45HNS-663-22R-10

6

63

77

22

50

6. 1

A

0.9

TFM45HNS-680-27R-10

6

80

94

27

55

6. 1

A

1.6

TFM45HNS-780-27R-10

7

80

94

27

55

6. 1

A

1.6

TFM45HNS-7100-32R-10

7

100

114

32

63

6.1

B

2.7

TFM45HNS-9100-32R-10

9

100

114

32

63

6.1

B

2.8

TFM45HNS-8125-40R-10

8

125

139

40

63

6.1

B

3.4

TFM45HNS-10125-40R-10

10

125

139

40

63

6.1

B

3.4

TFM45HNS-12125-40R-10

12

125

139

40

63

6.1

B

3.4

TFM45HNS-10160-40R-10

10

160

174

40

63

6.1

C

4.8

TFM45HNS-12160-40R-10

12

160

174

40

63

6.1

C

4.8

TFM45HNS-14160-40R-10

14

160

174

40

63

6.1

C

4.9

TFM45HNS-12200-60R-10

12

200

214

60

63

6.1

C

6.9

TFM45HNS-16200-60R-10

16

200

214

60

63

6.1

C

7.0

TFM45HNS-16250-60R-10

16

250

264

60

63

6.1

C

11.8

TFM45HNS-20250-60R-10

20

250

264

60

63

6.1

C

12.0


ACCESSORY

MODEL

SCREW

WRENCH





TFM45HNS

CSG5016

CTS20W
