Face Milling Cutter

Home / Product / Milling Cutter / Face Milling Cutter / HN SERIES:TFM55AHNS Face Milling Cutter

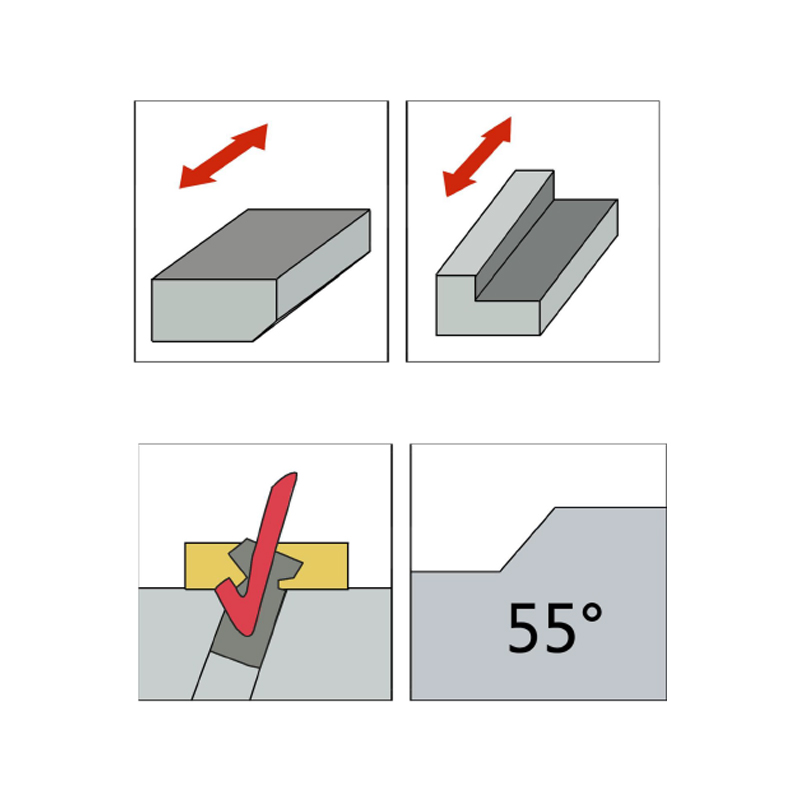

FACE MILL CUTTER,Kr=55°

HN SERIES:TFM55AHNS Face Milling Cutter

FACE MILL CUTTER,Kr=55°
  • FEATURE
  • INQUIRY
FEAURES

  • Cutter DIAφ50~φ160mm
  • The insert is a doublesided slotting insert with 12 cutting edges, which is  economical

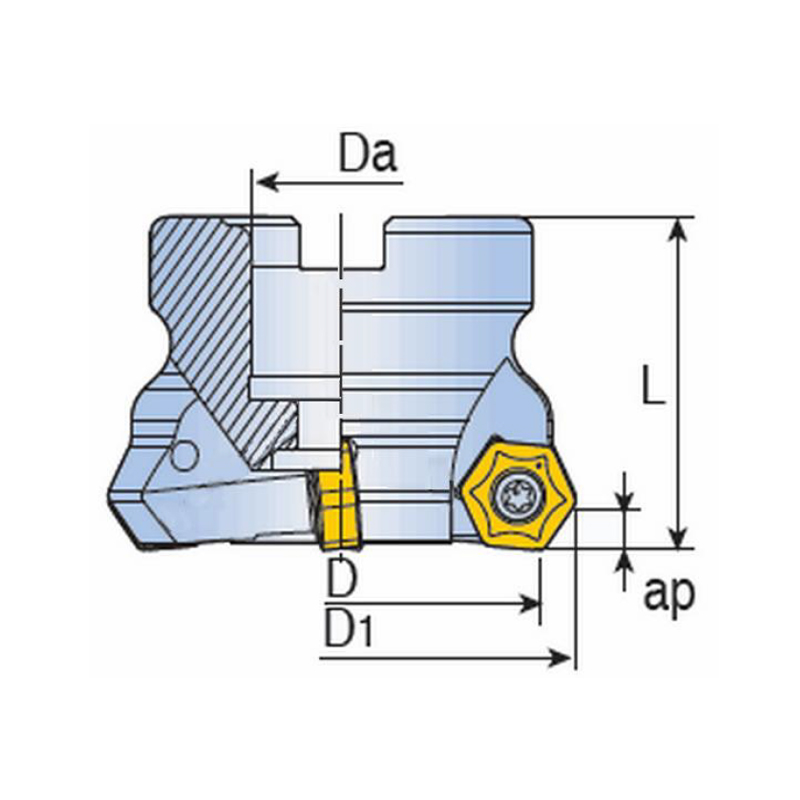

MODEL



DIMENSION MM

CONNE

CTOR

kg

FOR INSERT

D

D1

Da

L

ap

TFM55AHNS 450-22R-05B

4

50

58. 16

22

40

5

A

0.4

HNKX 0504

TFM55AHNS 650-22R-05

6

50

58. 16

22

40

5

A

0.4

TFM55AHNS 563-22R-05B

5

63

71. 16

22

40

5

A

0.6

TFM55AHNS 863-22R-05

8

63

71. 16

22

40

5

A

0.5

TFM55AHNS 680-27R-05B

6

80

88. 16

27

50

5

A

1.3

TFM55AHNS 880-27R-05

8

80

88. 16

27

50

5

A

1.2

TFM55AHNS 1080-27R-05

10

80

88. 16

27

50

5

A

1.2

TFM55AHNS 7100-32R-05B

7

100

108. 16

32

50

5

B

2.0

TFM55AHNS 10100-32R-05

10

100

108. 16

32

50

5

B

2.0

TFM55AHNS 12100-32R-05

12

100

108. 16

32

50

5

B

2.0

TFM55AHNS 10125-40R-05B

10

125

133. 16

40

63

5

B

3.2

TFM55AHNS 12125-40R-05

12

125

133.16

40

63

5

B

3.4

TFM55AHNS 16125-40R-05

16

125

133. 16

40

63

5

B

3.2

TFM55AHNS 12160-40R-05B

12

160

168.16

40

63

5

C

4.7


ACCESSORY

MODEL

SCREW

WRENCH





TFM55AHNS

CST4010

CTS15W
