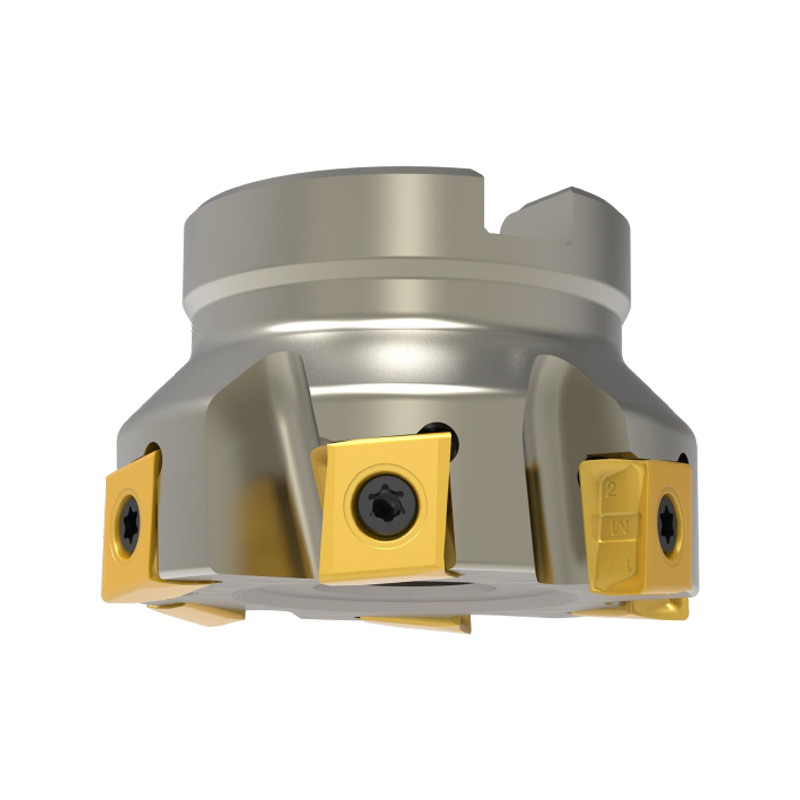

LN SERIES：CFM490LN Face Milling Cutter

FACE MILL CUTTER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ50～φ200mm
4 righ hand 90°inserts
Design combination of helical cutting edge and large positive rake angle makes cutting easier
P/M/K/S materials with very high metal removal rates

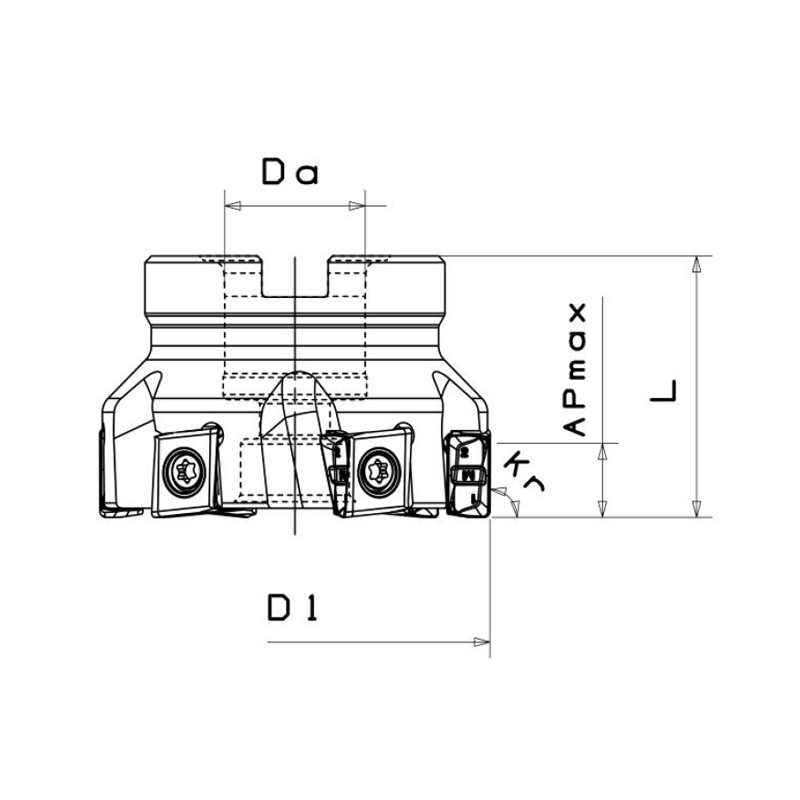

MODEL	kr		DIMENSION				CONNE CTOR		SUITABLE INSERT
MODEL	kr		Dl	Da	L	APraax	CONNE CTOR		SUITABLE INSERT
CFM490LN-550A22R-09	90°	5	50	22	40	8.5	A	0.3	LNHU 0904
CFM490LN-750A22R-09		7	50	22	40		A	0.4
CFM490LN-663A22R-09		6	63	22	40		A	0.5
CFM490LN-1063A22R-09		10	63	22	40		A	0.5
CFM490LN-450A22R-12		4	50	22	40	11.5	A	0.3	LNHU 1206
CFM490LN-650A22R-12		6	50	22	40		A	0.3
CFM490LN-663A22R-12		6	63	22	40		A	0.5
CFM490LN-863A22R-12		8	63	22	40		A	0.5
CFM490LN-780A27R-12		7	80	27	50		A	1.0
CFM490LN-1080A27R-12		10	80	27	50		A	1.2
CFM490LN-8100B32R-12		8	100	32	50		B	2.0
CFM490LN-12100B32R-12		12	100	32	50		B	2. 1
CFM490LN-10125B40R-12		10	125	40	63		B	3. 1
CFM490LN-14125B40R-12		14	125	40	63		B	3.4
CFM490LN-11160C40R-16		11	160	40	63	15.0	C	4. 1	LNHU 1608
CFM490LN-14160C40R-16		14	160	40	63		C	4.3
CFM490LN-12200C60R-16		12	200	60	63		C	5.7
CFM490LN-16200C60R-16		16	200	60	63		C	5.8

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CFM490LN-09	CSC3010	CTS08W
CCFM490LN-12	CSG4013-P	CTS15W-P
CFM490LN-16	CSG5016	CTS20W

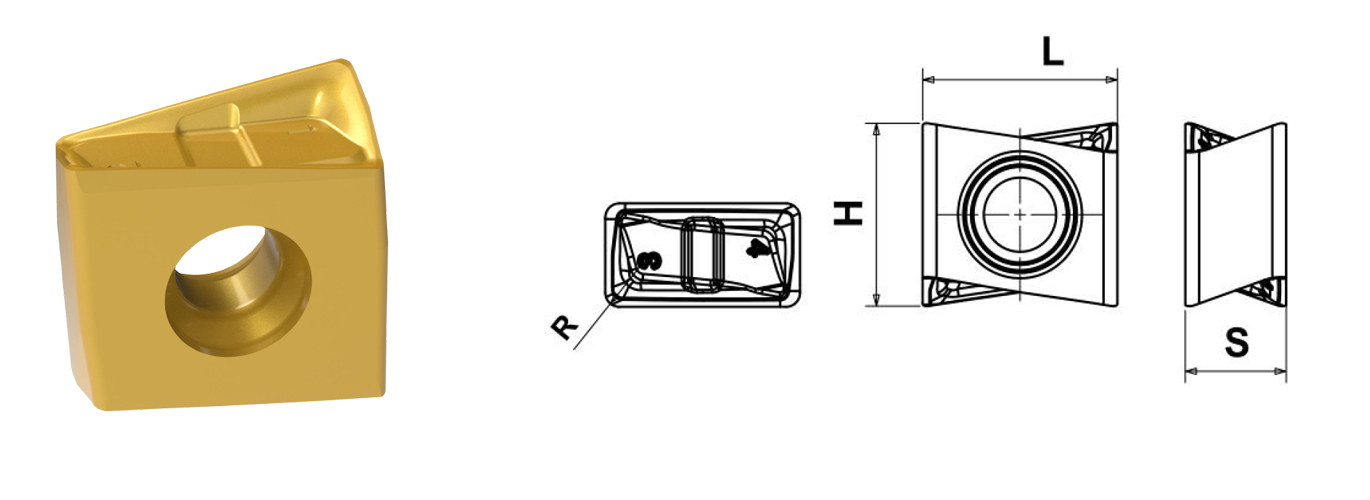

LNHU INSERT

MODEL	EDGE LONG	KR (° )	DIMENSION					GRADE
MODEL	EDGE LONG	KR (° )	L	H	S	R	APmax	CT5320	CT7320	CT8320	CT101
LNHU 090404-M	09	90	9.02	8. 55	4. 48	0.4	8.5	•	•	•
LNHU 120608-M	12		12.7	13.0	6. 75	0.8	11.5	•	•	•
LNHU 120612-M	12		12.7	13.0	6. 75	1.2	11.5	•	•	•
LNHU 120608-AL	12		12.7	13.0	6. 75	0.8	11.5				•
LNHU 160808-M	16		16.4	16.2	8.0	0.8	15.0	•	•	•
