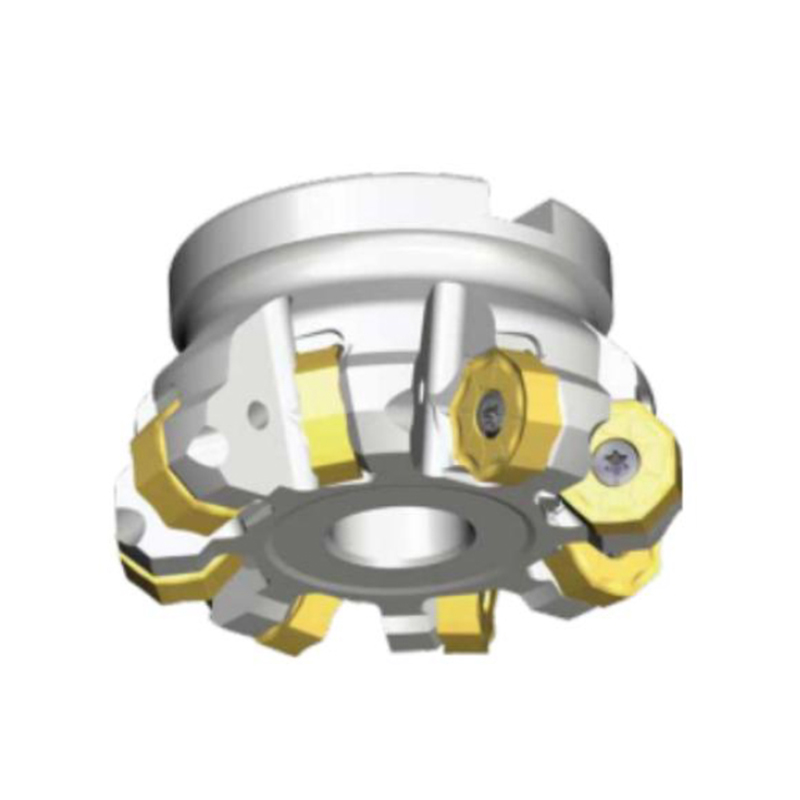

ON SERIES：CFM43ON-07 Face Milling Cutter

FACE MILL CUTTER；Kr=43°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ63～φ160mm
The blade is double-sided 16-edge type, economical good, large rake design of the insert, cutting fast

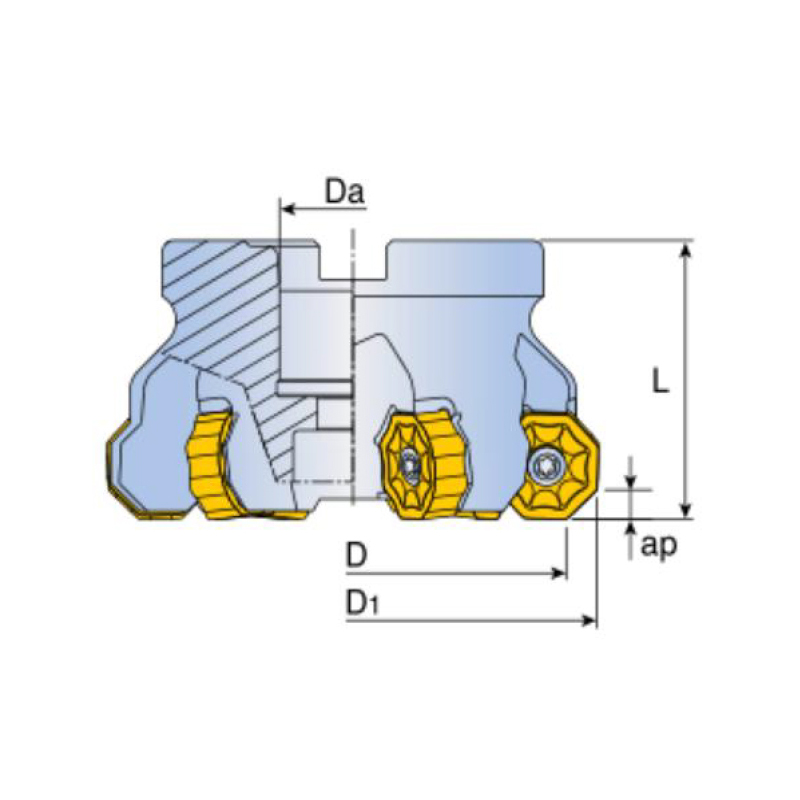

MODEL		DIMENSION					CONNE CTOR	KG	INSERT
MODEL		D	D1	L	ap	Da	CONNE CTOR	KG	INSERT
CFM430N-563A22R-07	5	63	75.2	50	4	22	A	0.8	ONKX 0706
CFM430N-680A27R-07	6	80	92.2	50	4	27	A	1.2
CFM430N-780A27R-07	7	80	92.2	50	4	27	A	1.2
CFM430N-7100B32R-07	7	100	112.2	60	4	32	B	2.5
CFM430N-8100B32R-07	8	100	112.2	60	4	32	B	2.5
CFM430N-8125B40R-07	8	125	137.2	63	4	40	B	3.0
CFM430N-10125B40R-07	10	125	137.2	63	4	40	B	3. 1
CFM430N-10160C40R-07	10	160	172.2	63	4	40	C	5.2
CFM430N-12160C40R-07	12	160	172.2	63	4	40	C	5.4

◎Standard cutter head without internal coolant

◎INSERT to be ordered separately

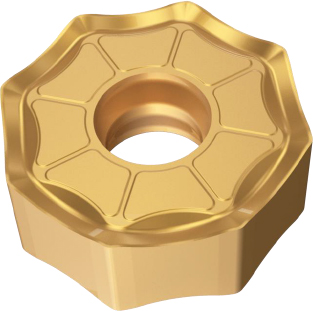

INSERT MODEL

EDGE

LONG

(° )

DIMENSION

GRADE

CT5320

CT7420

CT8320

CT8420

ONKX 070608N-M

19. 05

7.9

0.8

1.1

•

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CFM43ON-07	CSG5016	CSG5016 CTS20W
