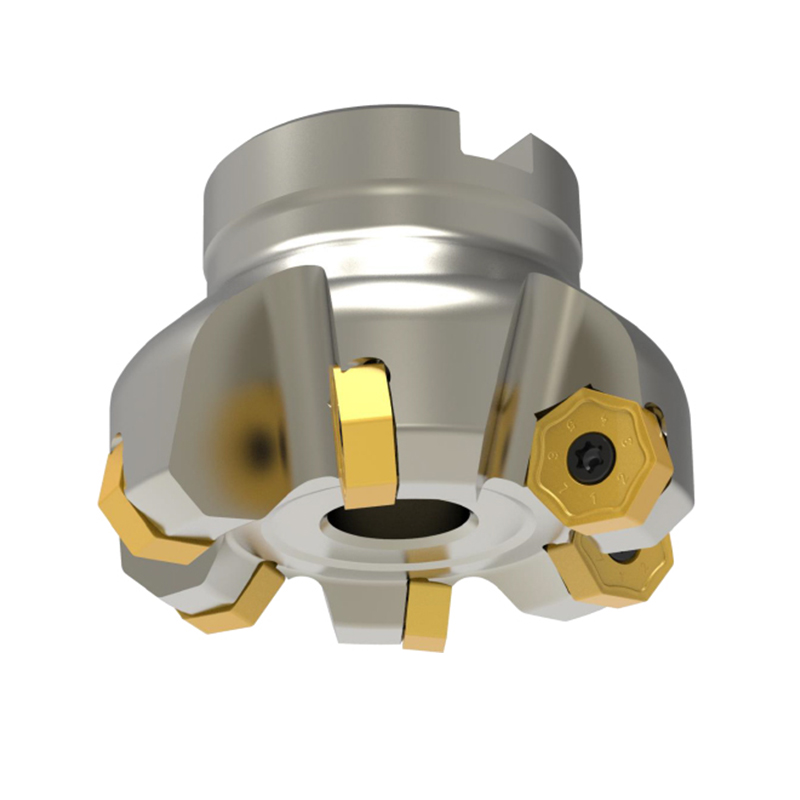

FACE MILL CUTTER;Kr=45°

QN series:CFM45QN-07 Face Milling Cutte

FACE MILL CUTTER;Kr=45°
  • FEATURE
  • INQUIRY
FEAURES

  • Cutter DIA φ40~φ250mm
  • The blade is double-sided 14-edge type, which is economical
  • Suitbale for steel, stainless steel, cast iron etc.

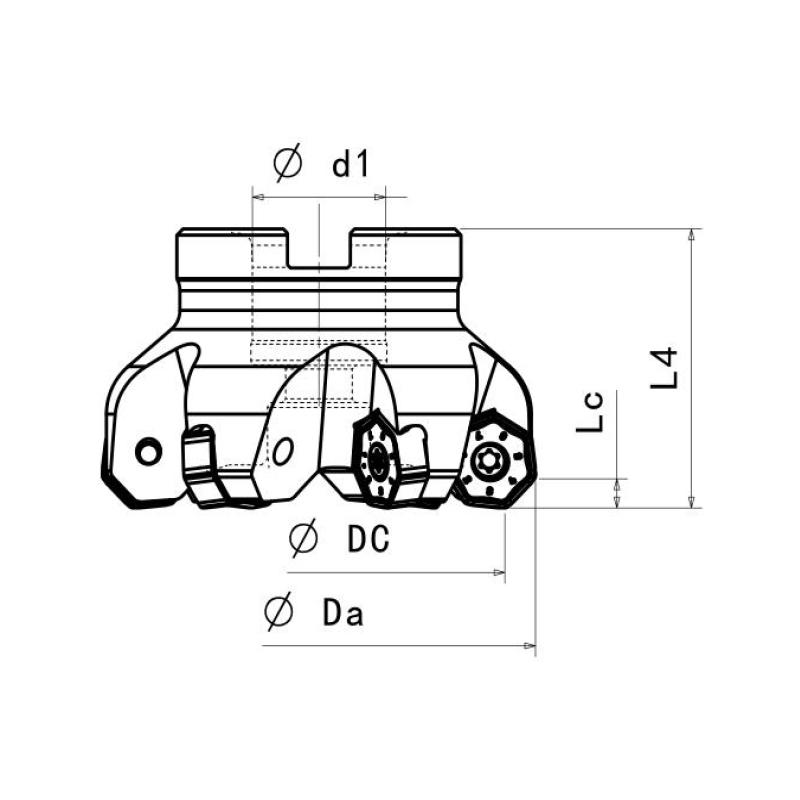

MODEL



DIMENSION MM

CONNE

CTOR

KG

INSERT

Dc

Da

dl

L4

Lc

CFM45QN-340A16R-07

3

40

50

16

40

4

0

A

0.5

 QNKX 0705

CFM45QN-450A22R-07

4

50

60

22

45

4

0

A

0.5

CFM45QN-550A22R-07

5

50

60

22

45

4

0

A

0.5

CFM45QN-563A22R-07

5

63

73

22

45

4

0

A

0.8

CFM45QN-663A22R-07

6

63

73

22

45

4

0

A

0.8

CFM45QN-680A27R-07

6

80

90

27

50

4

0

A

1.5

CFM45QN-780A27R-07

7

80

90

27

50

4

0

A

1.5

CFM45QN-7100B32R-07

7

100

110

32

50

4

0

B

2.7

CFM45QN-8100B32R-07

8

100

110

32

50

4

0

B

2.7

CFM45QN-8125B40R-07

8

125

135

40

63

4

0

B

4.3

CFM45QN-10125B40R-07

10

125

135

40

63

4

0

B

4.3

CFM45QN-9160C40R-07

9

160

170

40

63

4

0

C

6.5

CFM45QN-12160C40R-07

12

160

170

40

63

4

0

C

6.5

CFM45QN-18250C60R-07

18

250

260

60

63

4

0

C

10.5

  • ◎Standard cutter head without internal coolant; inserts to be ordered separately
  • ◎Note that the mounting screw of this type of cutter head is M3.5, and it can MATCH the WT.

    INSERT

    SHAPE

    INTRODUCTION





    Double-sided 14 blades 45° main declination angle, maximum depth of cut 4. Omm It is recommended to control the depth of cut below 3. 0mm during processing

    INSERT MODEL

    DIMENSION MM

    GRADE

    SCREW

    WREN

    1

    d

    b

    s

    r

    CT5320

    CT5420

    CT7320

    CT7420

    CT8420

    CSG

    3585-P

    CTS

    10W-P

    QNKX 070508N-M

    6. 98

    14.5

    5.4

    0.8

     •

     •

     •

     •

     •

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional CNC tool manufacturers in China.

The following information is help you to understand more:

  • Industry experience: Over 20 years
  • Product Category: 10000+
  • Number of patents: 41
  • Plant area: 3000m²+
  • Technician: 30+
  • Annual Production Capacity: 90 million (100,000 steel products,
    10 million blades)
