FACE MILL CUTTER;Kr=45°

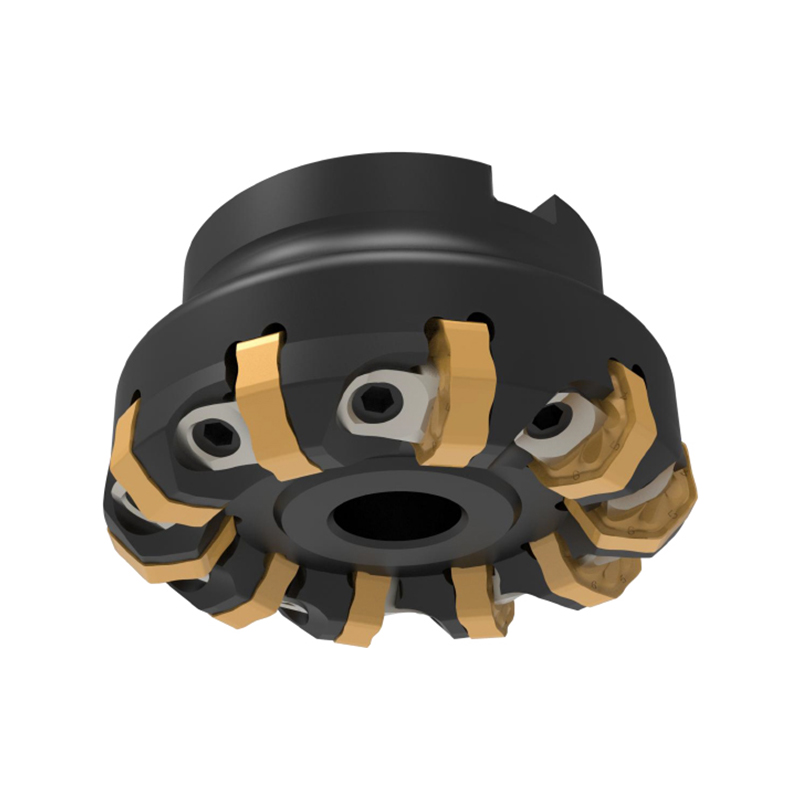

QNW SERIES:CFM45QNW-09 Face Milling Cutter

FACE MILL CUTTER;Kr=45°
  • FEATURE
  • INQUIRY
FEAURES

  • Cutter DIAφ80~φ315mm
  • The blade is double-sided 14-edge type, which is economical
  • Suitable for processing steel, stainless steel, cast iron and other materials

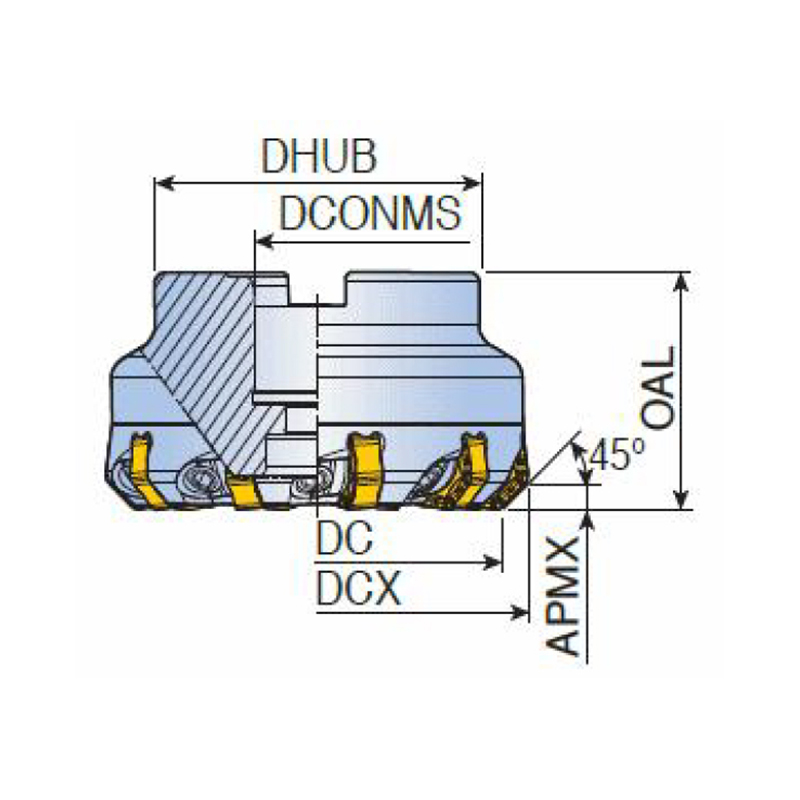

MODEL



DIMENSION MM

CONNE

CTOR

KG

INSERT

Dc

DCX

DCONM

DHUB

OAL

APMAX

CFM45QNW-1080A27R-09

10

80

91.9

27

70

50

5.0

A

1.5

QNKU 0906

CFM45QNW-13100B32R-09

13

100

112

32

85

55

5. 1

B

2.9

CFM45QNW-17125B40R-09

17

125

137

40

85

63

5.0

B

3.8

CFM45QNW-18160C40R-09

18

160

172

40

110

63

5. 1

C

5.6

CFM45QNW-21160C40R-09

21

160

172

40

110

63

5.0

C

5.6

CFM45QNW-26200C60R-09

26

200

212

60

130

63

5. 1

C

7.9

CFM45QNW-34250C60R-09

34

250

262

60

160

63

5.0

C

12.7

CFM45QNW-42315D60R-09

42

315

327

60

220

63

5. 1

D

19.9


◎Standard cutter head without internal coolant; inserts to be ordered separately

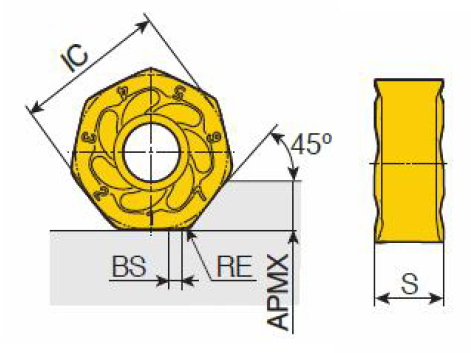

INSERT MODEL

EDGE

LONG

DIMENSION MM

GRADE

IC

S

ap

r

CT5320

CT5420

CT7320

CT7420

CT8320

CT8330

CT8420

QNKU 0906NB-MM

09

18.5

6. 35

5.5

1.0










ACCESSORY
MODEL WEDGE SCREW(SMALL) WRENCH
CFM45QNW-09 CYX8H-X CLD0802010 CBL40
