Face Milling Cutter

Home / Product / Milling Cutter / Face Milling Cutter / SN SERIES:CFM45SN Face Milling Cutter

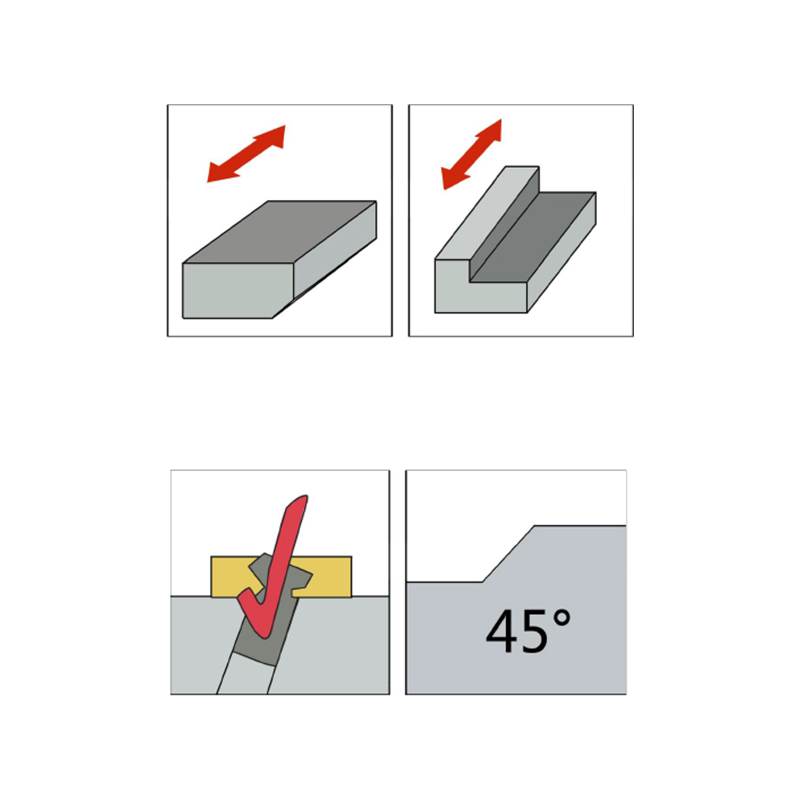

FACE MILL CUTTER,Kr=45°

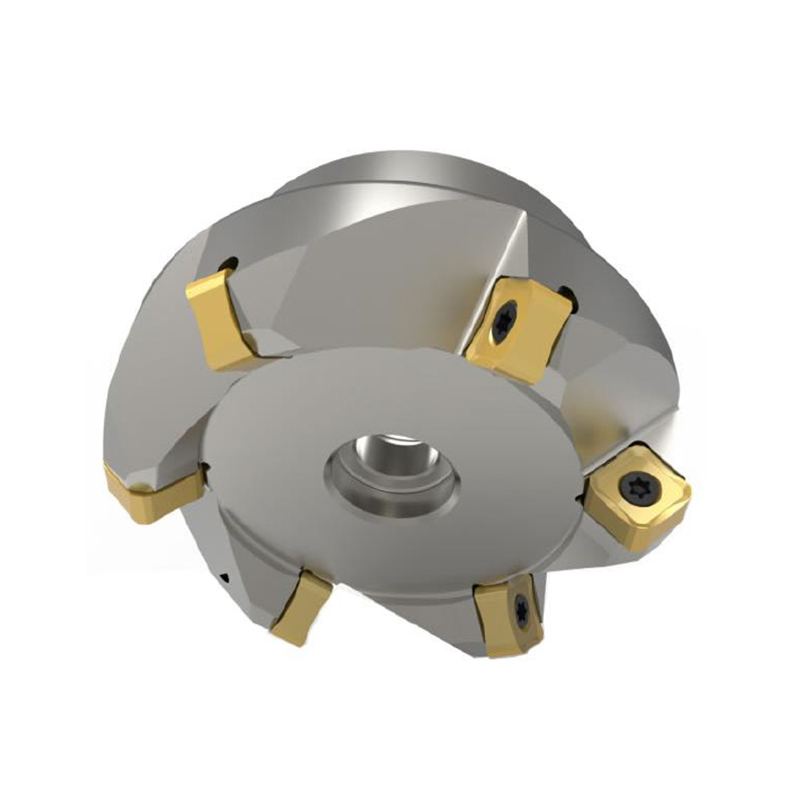

SN SERIES:CFM45SN Face Milling Cutter

FACE MILL CUTTER,Kr=45°
  • FEATURE
  • INQUIRY
FEAURES

  • Cutter DIAφ63~φ250mm
  • The blade is double-sided and eight-edged type, which is economical, and the blade is designed with a large rake angle for fast cutting.
  • With the wiper blade to improve surface quality.

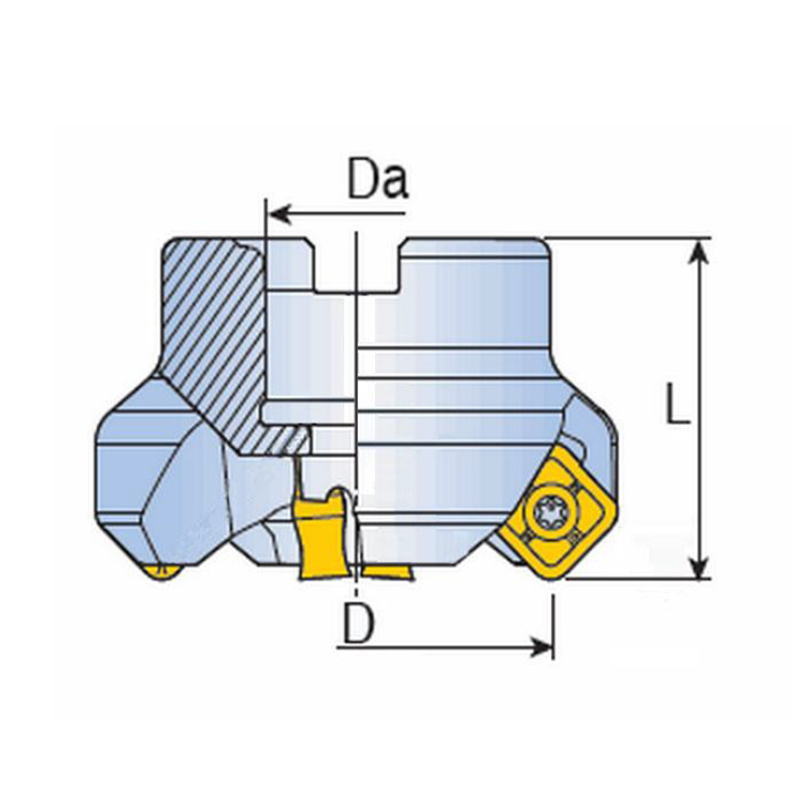

MODEL



DIMENSION (MM)

MAX

DEPTH

CONNE

CTOR

KG

SUITABLE INSERT

D

Da

L

CFM45SN-463A22R-17

4

63

22

50

7.8

A

1.0

SNKX 1707

CFM45SN-580A27R-17

5

80

27

50

A

1.5

CFM45SN-7100B32R-17

7

100

32

50

B

2.3

CFM45SN-8125B40R-17

8

125

40

63

B

4.0

CFM45SN-10125B40R-17

10

125

40

63

B

4.0

CFM45SN-10160C40R-17

10

160

40

63

C

5.4

CFM45SN-12160C40R-17

12

160

40

63

C

5.4

CFM45SN-12200C60R-17

12

200

60

63

C

7.5

CFM45SN-14250C60R-17

14

250

60

63

C

13.0


◎Inserts to be ordered separately, standard cutter without collant.

insert

shape

introduction





• Flat mount double-sided 8- edged blade

• Large rake angle design of blade, cutting lightly

The trial effect and life of the tool are highly recognized by customers

insert model

edge

LONG



grade

d

t

a

b

r



CT5320

CT7320

CT8330

CT9320

CT101

SNKX 1707XTN-M

17

17.2

7.8

1.6

1.5

0.5








ACCESSORY
MODEL SCREW WRENCH
CFM45SN-17 CSG5016 CTS20W
