SN series：CFM90SN SN series：CFM90SN

FACE MILL CUTTER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ50～φ125mm
The blade is double-sided and eight-edged type, which is economical. The large rake angle of the blade is designed for FAST cutting.
Divided into M and ML models.

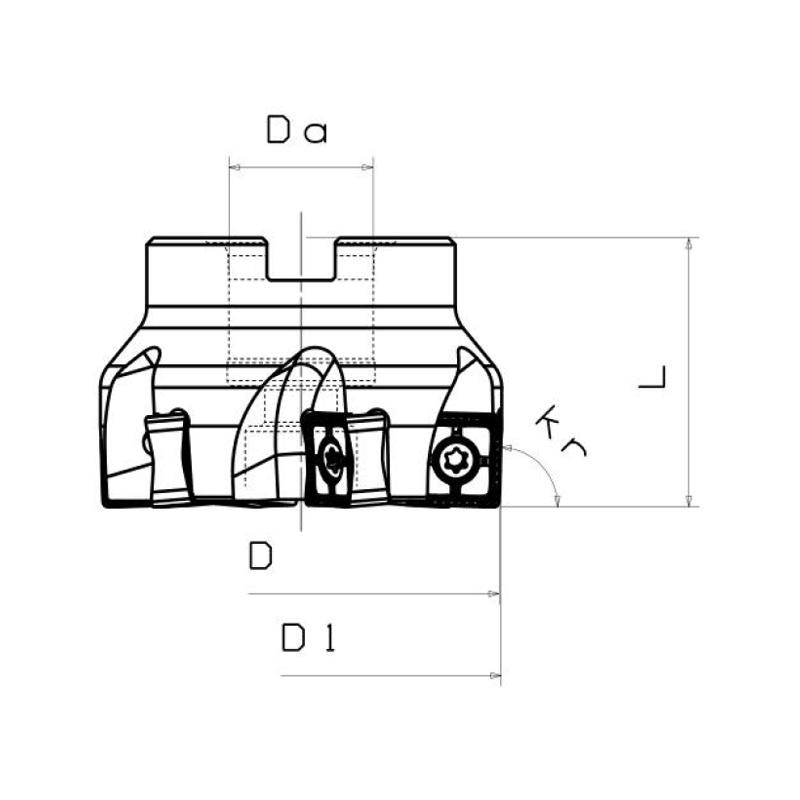

MODEL	kr		DIMENSION (mm)				CONNE CTOR	Kg	SUITABLE INSERT
MODEL	kr		D	Dl	Da	L	CONNE CTOR	Kg	SUITABLE INSERT
CFM90SN-450A22R-13-B	90°	4	50	50.84	22	40	A	0.4	SNGX 130608
CFM90SN-550A22R-13		5	50	50.84	22	40	A	0.4
CFM90SN-563A22R-13-B		5	63	63. 52	22	40	A	0.6
CFM90SN-663A22R-13		6	63	63. 52	22	40	A	0.6
CFM90SN-680A27R-13-B		6	80	80.6	27	50	A	1.3
CFM90SN-780A27R-13		7	80	80.6	27	50	A	1.3
CFM90SN-980A27R-13		9	80	80.6	27	50	A	1.3
CFM90SN-7100B32R-13-B		7	100	100. 58	32	50	B	1.8
CFM90SN-8100B32R-13		8	100	100. 58	32	50	B	1.8
CFM90SN-13100B32R-13		13	100	100. 58	32	50	B	1.9
CFM90SN-10125B40R-13		10	125	125. 72	40	63	B	3.0
CFM90SN-16125B40R-13		16	125	125. 72	40	63	B	3.0

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
CFM90SN	CST4010	CTS15W
