FACE MILL CUTTER,Kr=45°

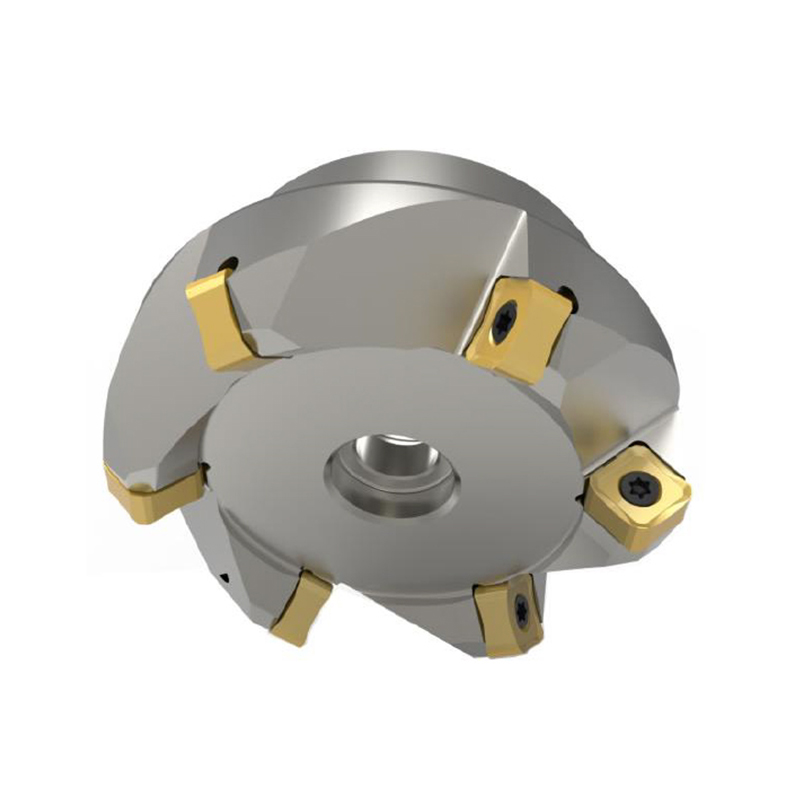

SN SERIES:TFM45SN Face Milling Cutter

FACE MILL CUTTER,Kr=45°
FEAURES

  • Cutter DIAφ50~φ315mm
  • The blade is double-sided and eight-edged type, which is economical, and the blade is designed with a large rake angle for fast cutting.
  • With the wiper blade to improve surface quality of workpiece.

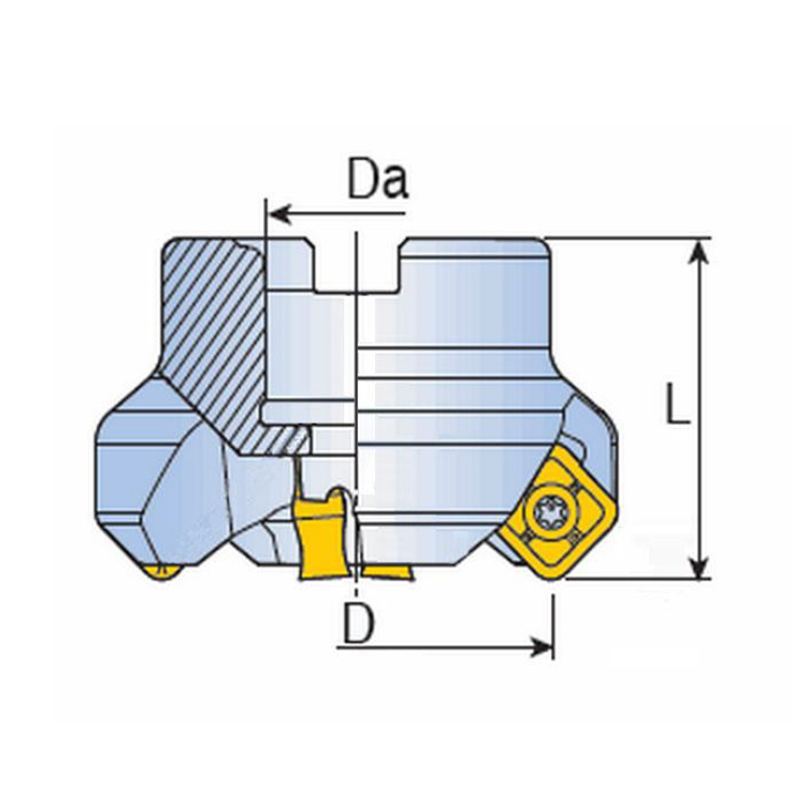

MODEL



DIMENSION MM

MAX

DEPTH

CONNE

CTOR



SUITABLE INSERT

D

Da

L

TFM45SN-350-22R-12

3

50

22

40

 6.0

A

0.3

SNKX 1206

TFM45SN-450-22R-12

4

50

22

40

A

0.3

TFM45SN-550-22R-12

5

50

22

40

A

0.3

TFM45SN-463-22R-12

4

63

22

40

A

0.5

TFM45SN-563-22R-12

5

63

22

40

A

0.5

TFM45SN-663-22R-12

6

63

22

40

A

0.5

TFM45SN-580-27R-12

5

80

27

50

A

1.2

TFM45SN-680-27R-12

6

80

27

50

A

1.2

TFM45SN-1080-27R-12

10

80

27

50

A

1.2

TFM45SN-6100-32R-12

6

100

32

50

B

1.8

TFM45SN-8100-32R-12

8

100

32

50

B

1.8

TFM45SN-12100-32R-12

12

100

32

50

B

1.8

TFM45SN-7125-40R-12

7

125

40

63

B

3.0

TFM45SN-10125-40R-12

10

125

40

63

B

3.0

TFM45SN-16125-40R-12

16

125

40

63

B

3.0

TFM45SN-8160-40R-12

8

160

40

63

C

4.6

TFM45SN-12160-40R-12

12

160

40

63

C

4.6

TFM45SN-20160-40R-12

20

160

40

63

C

4.6

TFM45SN-10200-60R-12

10

200

60

63

C

6.5

TFM45SN-18200-60R-12

18

200

60

63

C

6.5

TFM45SN-22200-60R-12

22

200

60

63

C

6.5

TFM45SN-12250-60R-12

12

250

60

63

C

10.2

TFM45SN-20250-60R-12

20

250

60

63

C

10.2

TFM45SN-24250-60R-12

24

250

60

63

C

10.2

TFM45SN-15315-60R-12

15

315

60

63

D

18.0

TFM45SN-22315-60R-12

22

315

60

63

D

18.0

TFM45SN-26315-60R-12

26

315

60

63

D

18.0


◎Standard cutter head without internal coolant
◎Inserts to be ordered separately

ACCESSORY
MODEL SCREW WRENCH
TFM45SN CST4010 CTS15W

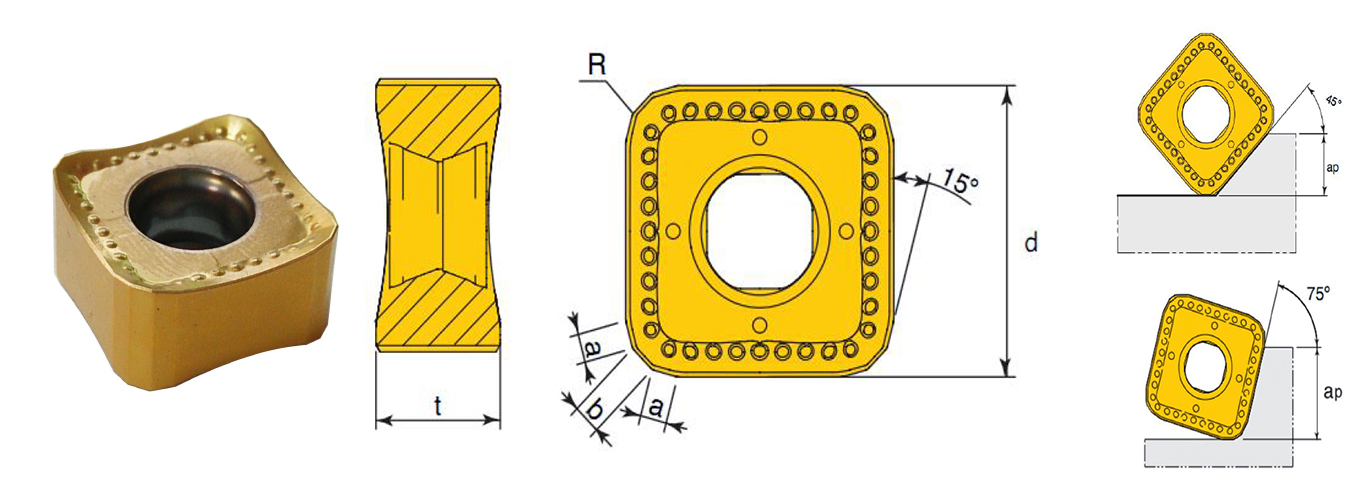

SNKX INSERTS

INSERT MODEL

EDGE

LONG

DIMENSION

GRADE

d

t

a

b

r



CT5320

CT7320

CT8330

CT9320

CT101

SNKX 1206XTN

12

12.7

6. 35

1.25

1.3

0.4





SNHX 1206XTN-ML



SNHX 1206XTN-AL

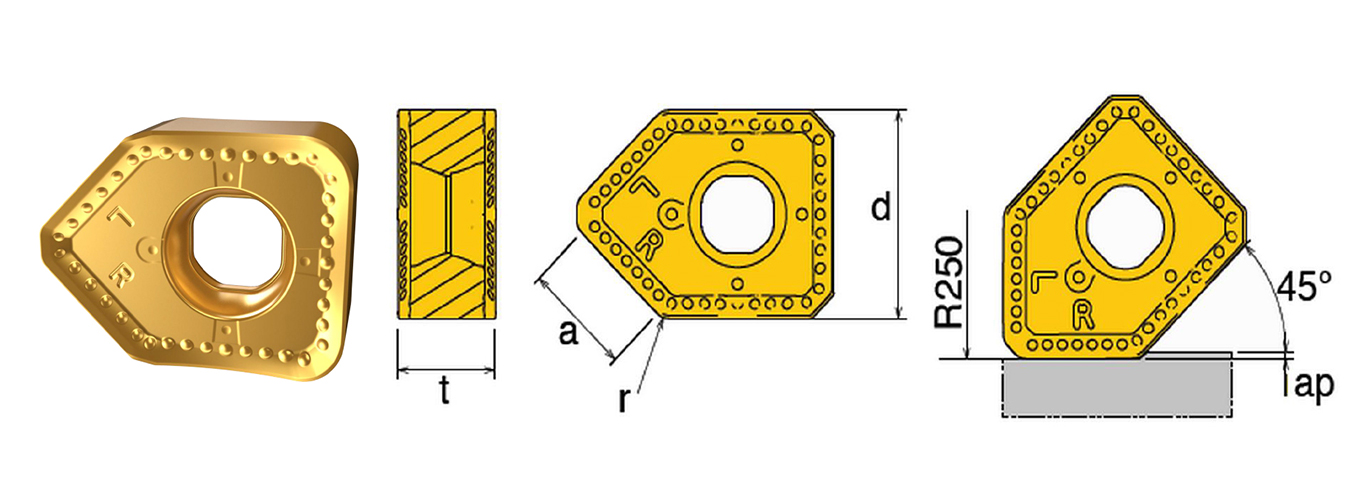

SNKX-W WIPER INSERT

MODEL

DIMENSION

COATING

d

t

a

R



CT5320

CT7320

CT9320

SNKX 1206ANSN-W

12.7

6. 45

6.9

0.4
