SNHX SERIES：CFM90SN Face Milling Cutter

FACE MILL CUTTER，Kr=90°

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ50～φ160mm
Insert double sided eight edge, very ecnonmical. large positive clearance angle for fast cutting.·Inserts integral wiper design, more suitable for bottom surface finishing
steel, ss steel, cast iron etc.

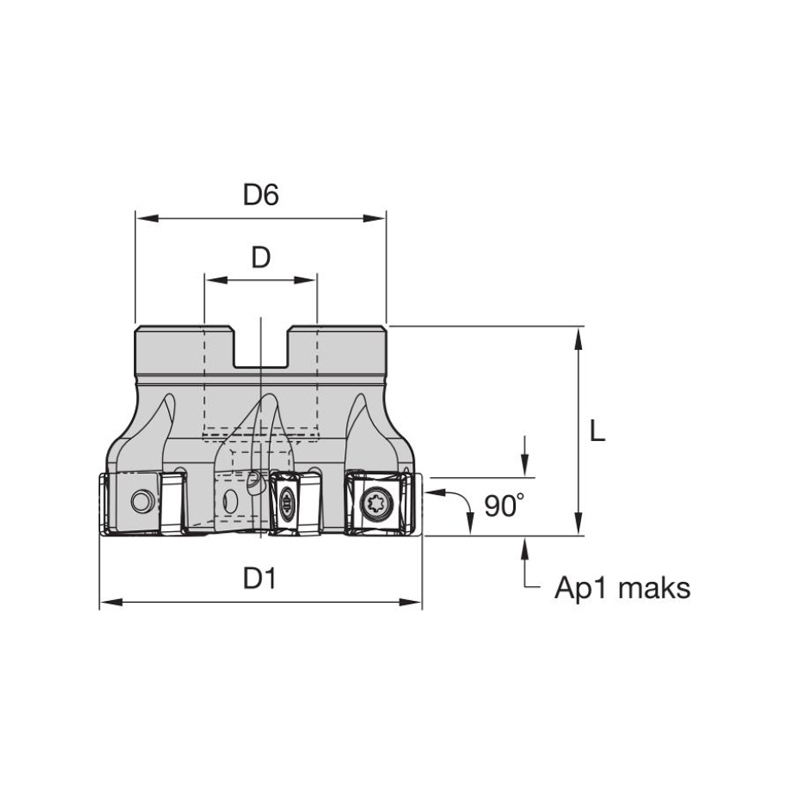

MODEL		DIMENSION MM					CONNE CTOR	Kg	SUITABLE INSERT
MODEL		D	Da	L	ap	d6	CONNE CTOR	Kg	SUITABLE INSERT
CFM90SN-450A22R-12	4	50	22	40	10	47	A	0. 32	SNHX 1205
CFM90SN-550A22R-12	5	50	22	40	10	47	A	0. 32
CFM90SN-563A22R-12	5	63	22	40	10	47	A	0. 48
CFM90SN-663A22R-12	7	63	22	40	10	47	A	0. 45
CFM90SN-580A27R-12	5	80	27	50	10	58	A	0. 96
CFM90SN-780A27R-12	7	80	27	50	10	58	A	1.03
CFM90SN-6100B32R-12	6	100	32	50	10	70	B	1.69
CFM90SN-8100B32R-12	8	100	32	50	10	70	B	1.58
CFM90SN-7125B40R-12	7	125	40	63	10	85	B	2. 79
CFM90SN-10125B40R-12	10	125	40	63	10	85	B	2. 98
CFM90SN-8160C40R-12	8	160	40	63	10	110	C	4.10
CFM90SN-12160C40R-12	12	160	40	63	10	110	C	4.15

INSERTS	SHAPE							introduction
								Positive large rake angle inserts Blade Integral Wiper Design



MODEL	DIMENSION					GRADE			SCREW	WRENCH
	LI	D	S	Bs	R	CT5420	CT7420	CT8420
SNHX 120508-M	12.7	12.7	4.6	1.34	0.8	參	•	•	CSG4013-P	CTS15W-P
