Face Milling Cutter

Home / Product / Milling Cutter / Face Milling Cutter / XN SERIES:CFM90XN Face Milling Cutter

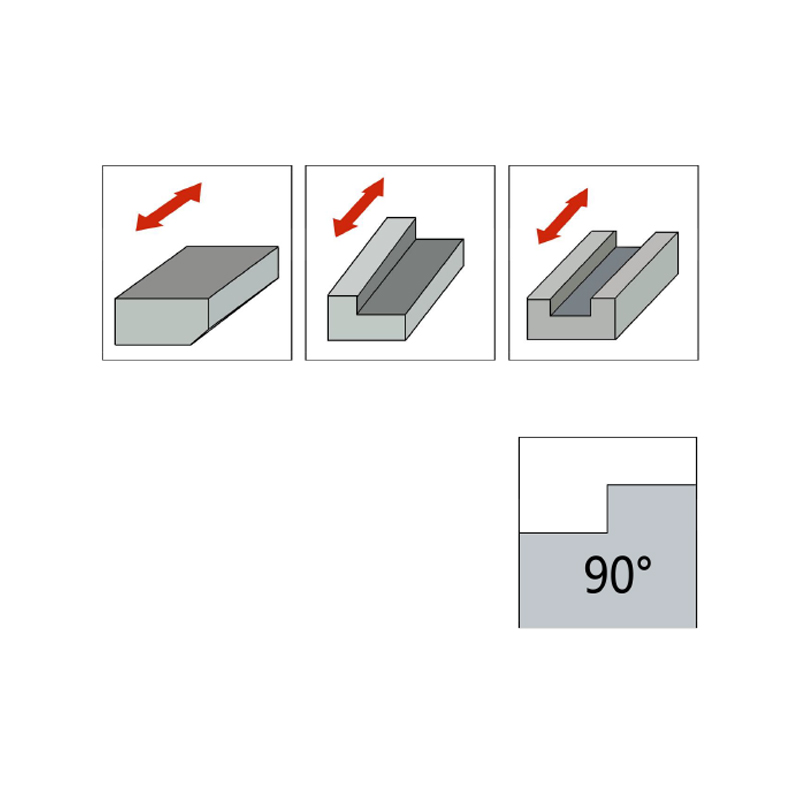

FACE MILL CUTTER,Kr=90°

XN SERIES:CFM90XN Face Milling Cutter

FACE MILL CUTTER,Kr=90°
  • FEATURE
  • INQUIRY
FEAURES

  • Cutter DIAφ40~φ250mm
  • Inserts double side 6 edges. ·insert large clearance angle, cutting fast
  • Wiper inserts for better surface processing

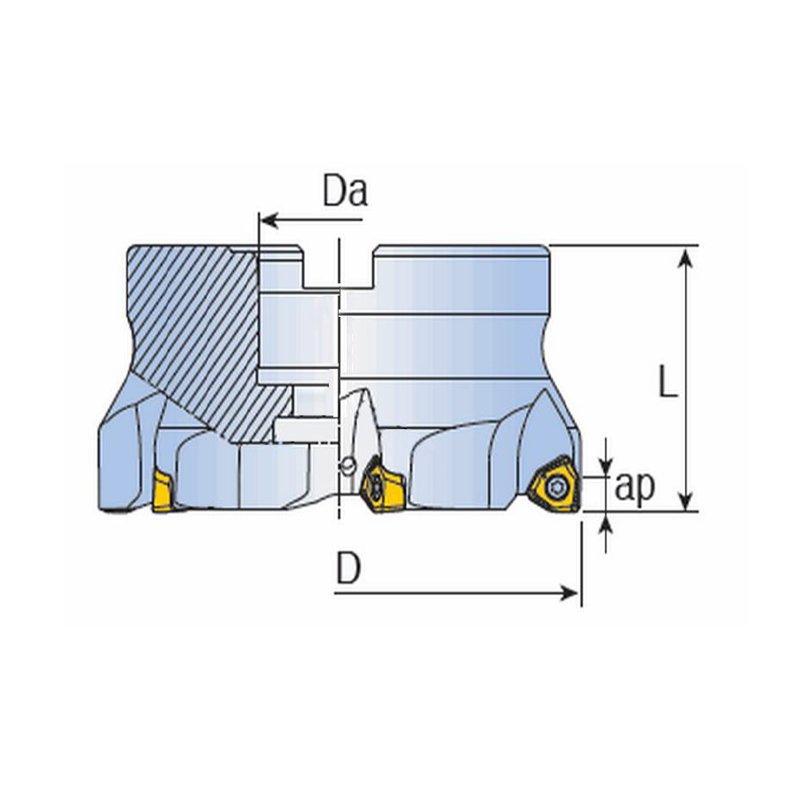

MODEL



DIMENSION)

CONNE

CTOR

kg

SUITABLE INSERTS

D

Da

L

ap

CFM90XN-440A16R-06

4

40

16

40

6.2

A

0.3

XNGU 0604

CFM90XN-450A22R-06

4

50

22

40

6.2

A

0.4

CFM90XN-650A22R-06

6

50

22

40

6.2

A

0.4

CFM90XN-463A22R-06

4

63

22

40

6.2

A

0.5

CFM90XN-663A22R-06

6

63

22

40

6.2

A

0.5

CFM90XN-763A22R-06

7

63

22

40

6.2

A

0.5

CFM90XN-580A27R-06

5

80

27

50

6.2

A

1.0

CFM90XN-780A27R-06

7

80

27

50

6.2

A

1.0

CFM90XN-980A27R-06

9

80

27

50

6.2

A

1.0

CFM90XN-6100B32R-06

6

100

32

50

6.2

B

1.9

CFM90XN-8100B32R-06

8

100

32

50

6.2

B

1.9

CFM90XN-11100B32R-06

11

100

32

50

6.2

B

1.9

CFM90XN-7125B40R-06

7

125

40

63

6.2

B

3.2

CFM90XN-11125B40R-06

11

125

40

63

6.2

B

3.2

CFM90XN-14125B40R-06

14

125

40

63

6.2

B

3.2



INSERT MODEL

DIMENSION)

GRADE

d

t

ap

a

r

FEED (mm/TEETH)

CT5320

CT5420

CT7320

CT7420

XNGU 060408-M

9. 26

4. 76

6.2

1.96

0.8

0.08-0.15

XNGU 090508-M

13.05

6. 70

9.2

2.0

0.8

0.10-0.20





XNGU 090508-ML

13.05

6. 70

9.2

2.0

0.8

0.05-0.10





XNMU 090508R-M

13.05

6. 70

9.2

2.0

0.8

0.05-0.10







MODEL

SCREW

WRENCH





CFM90XN-06

CSC3080

CTS08W

CFM90XN-09

CST4010

CTS15W



MODEL



DIMENSION)

CONNE

CTOR

kg

SUITABLE INSERTS

D

Da

L

ap

CFM90XN-450A22R-09

4

50

22

40

9.2

A

0.3

XNGU 0905

CFM90XN-550A22R-09

5

50

22

40

9.2

A

0.4

CFM90XN-463A22R-09

4

63

22

40

9.2

A

0.5

CFM90XN-663A22R-09

6

63

22

40

9.2

A

0.5

CFM90XN-763A22R-09

7

63

22

40

9.2

A

0.5

CFM90XN-580A27R-09

5

80

27

50

9.2

A

1.0

CFM90XN-780A27R-09

7

80

27

50

9.2

A

1. 1

CFM90XN-980A27R-09

9

80

27

50

9.2

A

1. 1

CFM90XN-6100B32R-09

6

100

32

50

9.2

A

1.9

CFM90XN-8100B32R-09

8

100

32

50

9.2

B

1.8

CFM90XN-11100B32R-09

11

100

32

50

9.2

B

1.9

CFM90XN-7125B40R-09

7

125

40

63

9.2

B

3. 1

CFM90XN-11125B40R-09

11

125

40

63

9.2

B

3. 1

CFM90XN-14125B40R-09

14

125

40

63

9.2

B

3.2

CFM90XN-12160C40R-09

12

160

40

63

9.2

C

4.3

CFM90XN-16160C40R-09

16

160

40

63

9.2

C

4.3

CFM90XN-14200C60R-09

14

200

60

63

9.2

C

5.9

CFM90XN-18200C60R-09

18

200

60

63

9.2

C

5.9

CFM90XN-18250C60R-09

18

250

60

63

9.2

C

10.7

CFM90XN-22250C60R-09

22

250

60

63

9.2

C

10.8


MODEL

SCREW

WRENCH





CFM90XN-09

CST4010

CTS15W
