Boring tool: fine boring body

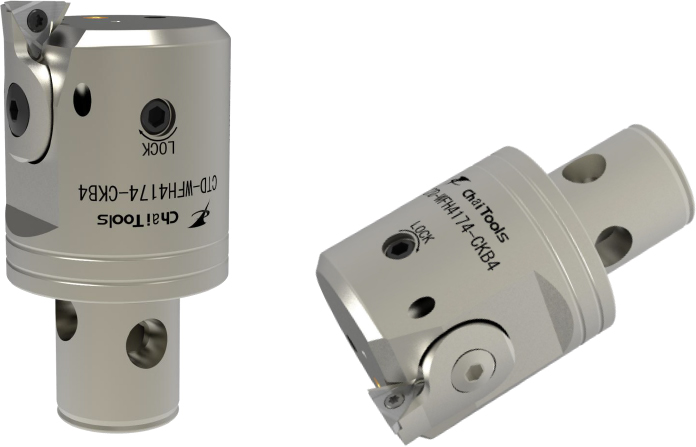

CTD-WFH Fine Boring Tools

Boring tool: fine boring body
  • FEATURE
  • INQUIRY
FEAURES

  • Fine boring main body
  • CK CONNECT
  • Standard cutter head with internal coolant

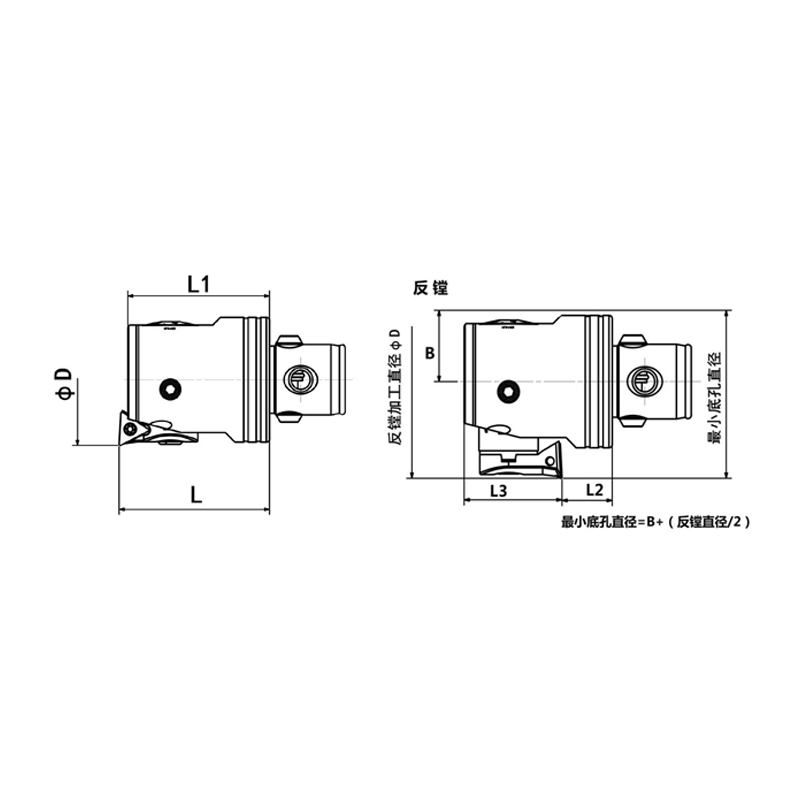

PRODUCT MODEL

CONNE

CLAMP

BORING HOLE

REVERSE BORING

INSER

CT

DIA0D

L

L1

RANGE0D

L2

L3

B

TS

CTD-WFH2036-CKB1

CK1

WFH1-1

20 〜26





-

10.5

20

10

TP

0802

WFH1-2

25 〜31

32.5

30.5

30 〜31

WFH1-3

30 〜36





30 〜36

CTD-WFH2547-CKB2

CK2

WFH2-1

25 〜33





-

11.5

21.5

12.5

WFH2-2

32 〜40

35.5

33

36 〜40

WFH2-3

39 〜47





39 〜47

CTD-WFH3260-CKB3

CK3

WFH3-1

32 〜42





-

10

27

16

WFH3-2

41 〜51

40

37

46 〜51

WFH3-3

50 〜60





50 〜60

CTD-WFH4174-CKB4

CK4

WFH4-1

41 〜54





-

12

31

20

TC

1102

WFH4-2

50 〜63

47

43

53 〜63

WFH4-3

61 〜74





61 〜74

CTD-WFH5395-CKB5

CK5

WFH5-1

53 〜70





62 〜70

15

37

25.5

WFH5-2

65 〜82

57

52

65 〜82

WFH5-3

78 〜95





78 〜95

CTD-WFH68150-CKB6

CK6

WFH6-1

68 〜100





80 〜100

23

44

32.5

WFH6-2

94 〜126

71

67

94 〜126

WFH6-3

118〜150





118〜150

CTD-WFH100203-CKB6

CK6

WFH6-1

100〜153





112〜153

23

44

46.5

WFH6-2

126〜179

71

67

126〜179

WFH6-3

150〜203





150〜203

CTD-WFH100203-CKB7

CK7

WFH6-1

100〜153





112〜153

39

44

46.5

WFH6-2

126〜179

87

83

126〜179

WFH6-3

150〜203





150〜203


◎Standard cutter head with internal coolant, inserts to be ordered separately
◎WFHO-1CLAMP,WFHO-2、WFHO-3CLAMP,Please order separately


COMPATIBLE CONNECTOR: CK1/CK2/C扪

COMPATIBLE CONNECTOR: CK4/CK5/CK6/CK7

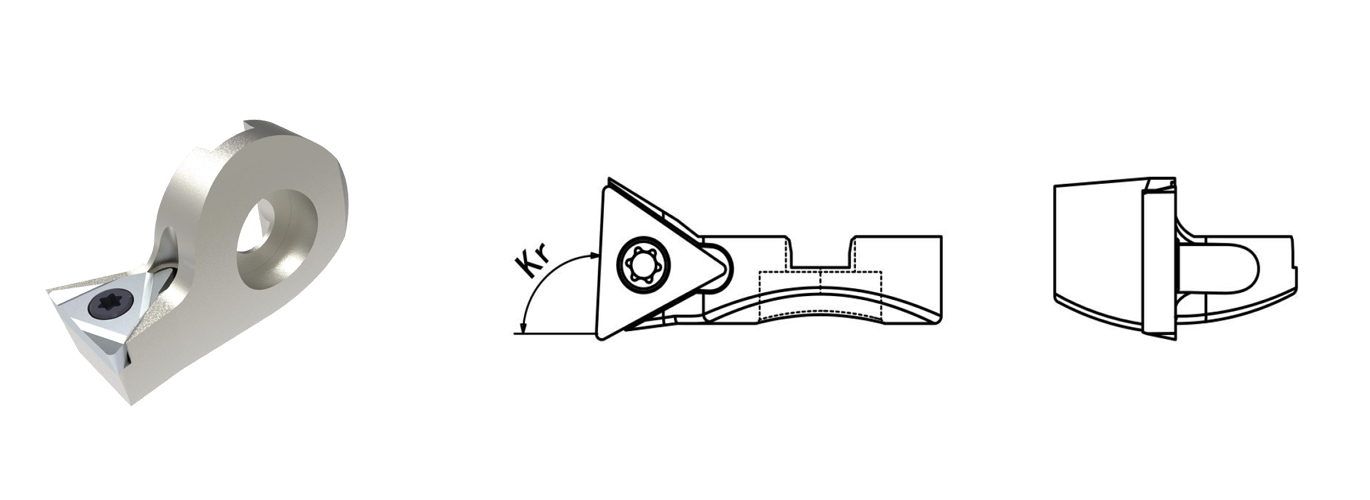

PRODUCT

Kr

INSERTS

PRODUCT

Kr

INSERTS

PRODUCT

Kr

INSERTS

WFH1-1









92°

















TP08









WFH4-1









92°

















TC11









WFH4-1E









90°

















TC11







WFH1-2

WFH4-2

WFH4-2E

WFH1-3

WFH4-3

WFH4-3E

WFH2-1

WFH5-1

WFH5-1E

WFH2-2

WFH5-2

WFH5-2E

WFH2-3

WFH5-3

WFH5-3E

WFH3-1

WFH6-1

WFH6-1E

WFH3-2

WFH6-2

WFH6-2E

WFH3-3

WFH6-3

WFH6-3E


◎Inserts to be ordered separately

INSERTS MODEL GRADE

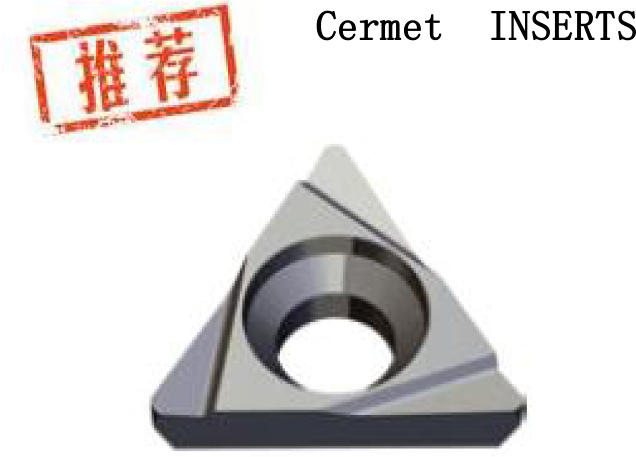

TPGH 080202L-F CT4100
TPGH 080204L-F CT4100
TCGT 110204L-F CT4100

◇COMPATIBLE TAEGUTEC, KYOCERA


ACCESSORY

INSERTS

MODEL

SCREW

WRENCH





TP08

CSC2250

CTS07W

TC11

CSC2560

CTS08W

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional CNC tool manufacturers in China.

The following information is help you to understand more:

  • Industry experience: Over 20 years
  • Product Category: 10000+
  • Number of patents: 41
  • Plant area: 3000m²+
  • Technician: 30+
  • Annual Production Capacity: 90 million (100,000 steel products,
    10 million blades)
