CWC Fine Boring Tools

Solid hard small diameter fine boring

Contact now

FEATURE
INQUIRY

FEAURES

Solid hard antivibration boring bar
Adapted to CN fine boring head
Precise boring on the assembly finetuning mechanism

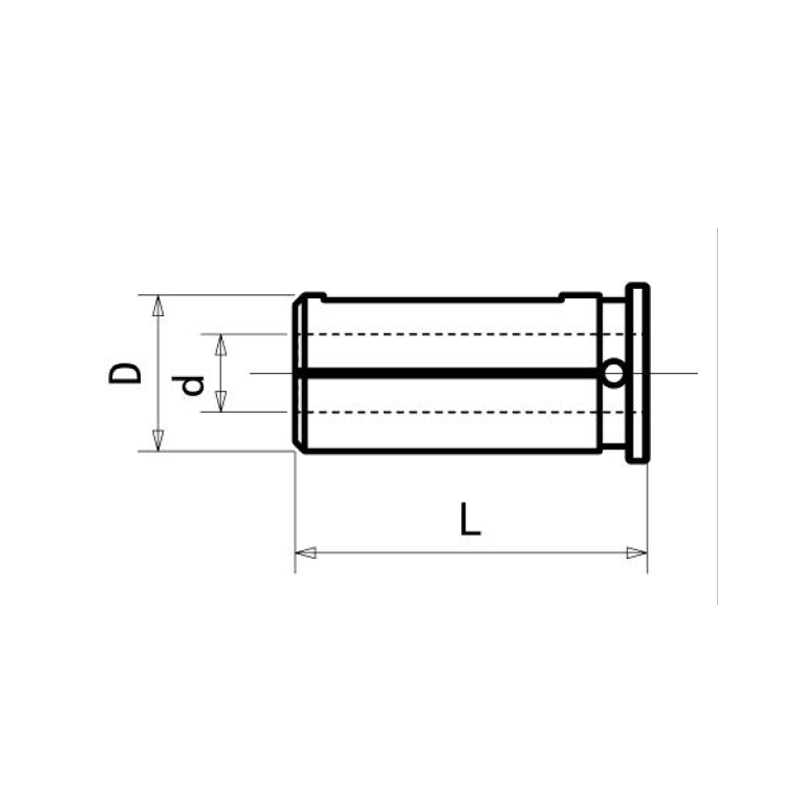

conversion sleeve

PRODUCT MODEL	DIMENSION			Combined tungsten steel handle
PRODUCT MODEL	D	d	L	Combined tungsten steel handle
CEC1608	16	8	37	CWC08+M5
CEC1610	16	10	37	CWC10*M6
CEC1612	16	12	37	CWC12*M6
CEC1614	16	14	37	CWC14*M6

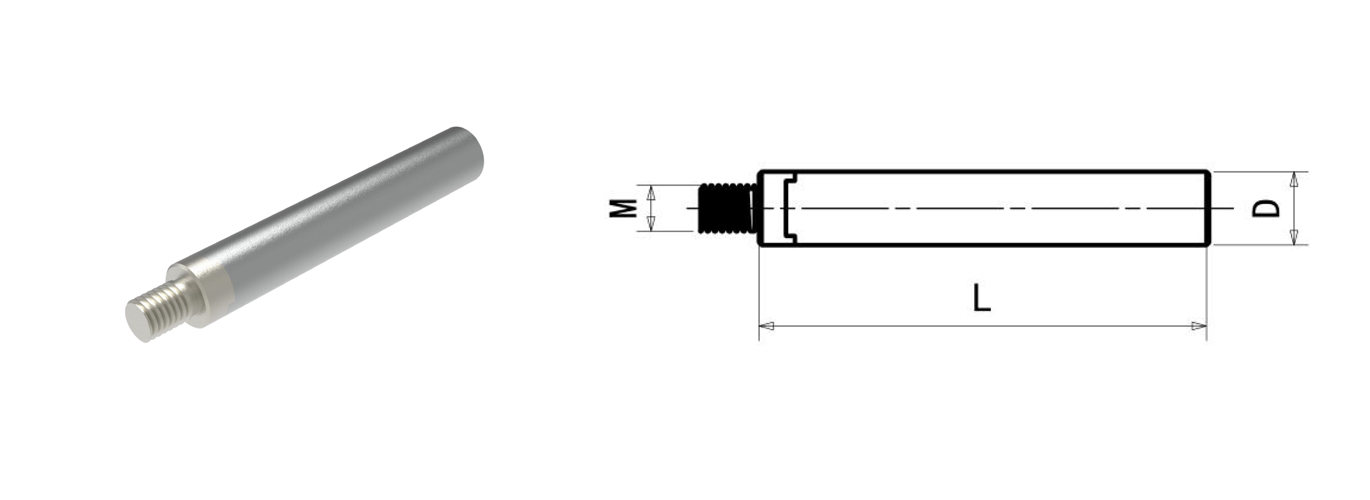

Carbide anti-vibration tool holder

MODEL	DIMENSION				W. kg	boring head
MODEL	D	L	M	conversion sleeve	W. kg	boring head
CWC08H100M5	8	100	M5	CEC1608	0. 08	CN09/10. 5
CWC10H100M6	10	100	M6	CEC1610	0. 15	CN12
CWC10H150M6	10	150		CEC1610	0.23	CN12
CWC12H100M6	12	100		CEC1612	0.24	CN14
CWC12H150M6	12	150		CEC1612	0. 33	CN14
CWC14H150M6	14	150		CEC1614	0.43	CN16
CWC14H200M6	14	200		CEC1614	0. 58	CN16
CWC16H100M10	16	100	M10	一	0.42	CN18/2/2/24/2/28/30/32/ 34/36/38/40/4/N46
CWC16H150M10	16	150	M10		0.61
CWC16H200M10	16	200	M10		0. 82

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional CWC Fine Boring Tools suppliers and Wholesale CWC Fine Boring Tools company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
