Gear and Rack Milling Cutter Series

Home / Product / Gear and Rack Milling Cutter Series / Gear Four-Station Fine Milling Series:CSM…C GEAR and Rack MILLING CUTTER SERIES
Gear Four-Station Fine Milling Cutter

Gear Four-Station Fine Milling Series:CSM…C GEAR and Rack MILLING CUTTER SERIES

Gear Four-Station Fine Milling Cutter
  • FEATURE
  • INQUIRY

MODEL

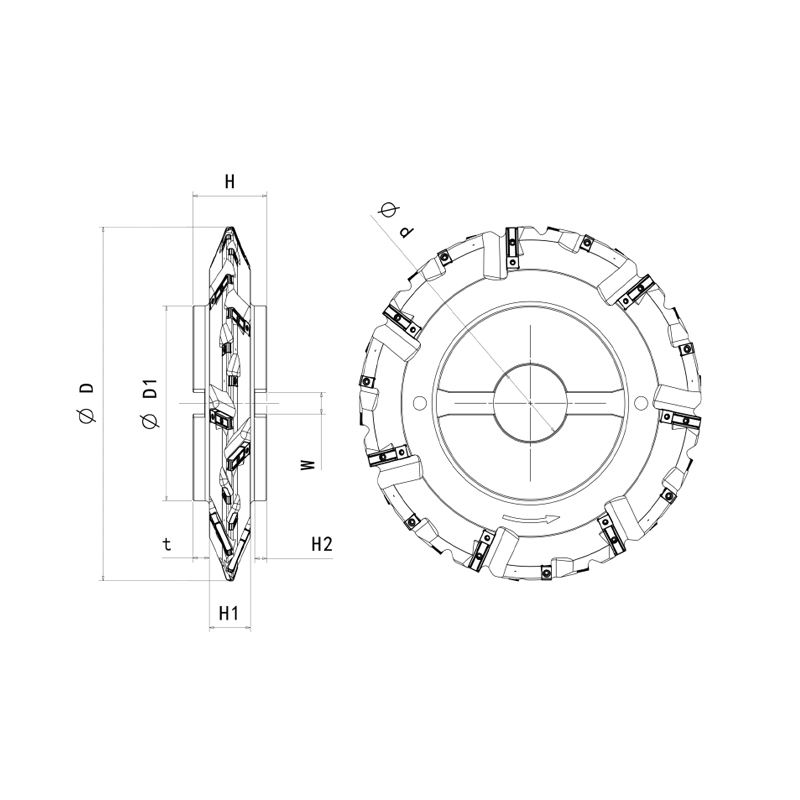

DIMENSIONS

MOULD

INSERTS

D

d

H

zeff.

D1

CSM-28400D100W90-M10C

28

400

100

90

7/7

190

10

14xAl,

14xC

CSM-32450D100W90-M10C

32

450

100

90

8/8

190

16xAl,

16xC

CSM-28400D100W90-M12C

28

400

100

90

7/7

190

12

14xAl,

14xD

CSM-32450D100W90-M12C

32

450

100

90

8/8

190

16xAl,

16xD

CSM-28400D100W90-M14C

28

400

100

90

7/7

190



14xAl,

14xE

CSM-32450D100W90-M14C

32

450

100

90

8/8

190

14

16xAl,

16xE

CSM-28400D100W90-M16C

28

400

100

90

7/7

190

16

14xAl,

14xF

CSM-32450D100W90-M16C

32

450

100

90

8/8

190

16xAl,

16xF

CSM-28400D100W90-M18C

28

400

100

90

7/7

190

18

14xAl,

14xG

CSM-32450D100W90-M18C

32

450

100

90

8/8

190

16xAl,

16xG


◎ABOVE IS ONLY FOR REFERENCE.
◎STANDARD CUTTER WITHOUT INTERNAL COOLANT
◎INSERTS TO BE ORDERED SEPARATELY
