Gear and Rack Milling Cutter Series

Home / Product / Gear and Rack Milling Cutter Series / Gear Rough Milling Series:CSM…A GEAR and Rack MILLING CUTTER SERIES

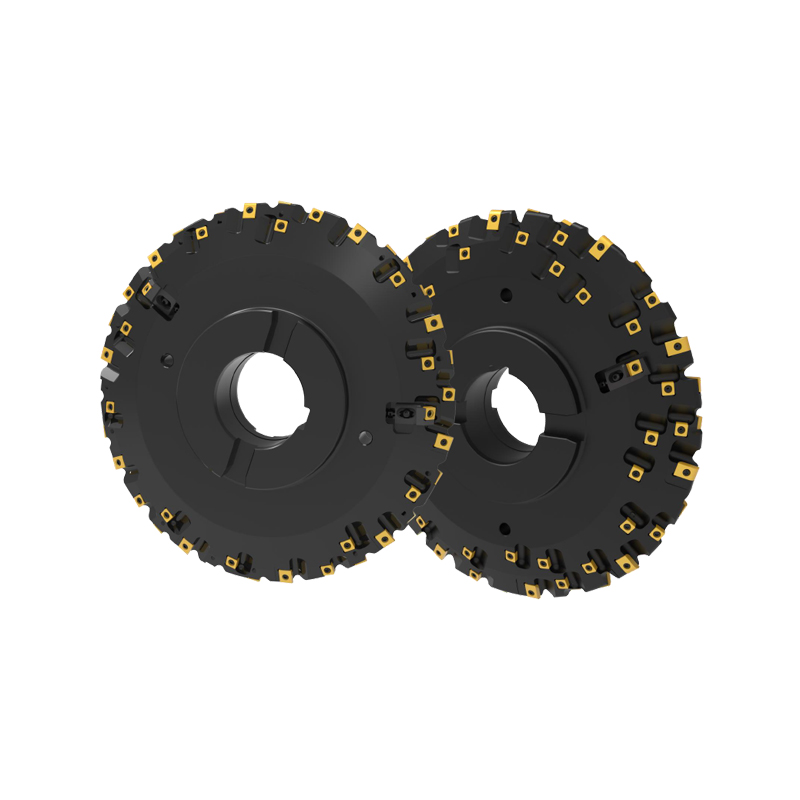

Gear Rough Milling Cutter

Gear Rough Milling Series:CSM…A GEAR and Rack MILLING CUTTER SERIES

Gear Rough Milling Cutter
  • FEATURE
  • INQUIRY

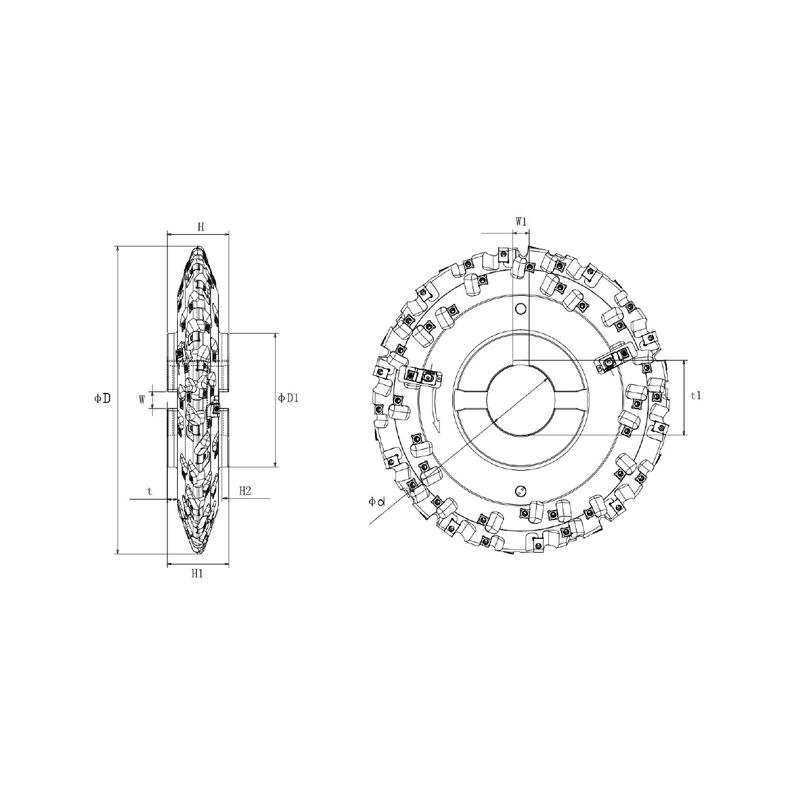

MODEL



DIMENSIONS

MOULD

INSERTS

D

d

H

zeff.

D1

CSM-40400D90W80-M10A

40

400

90

80

8/4

190

10

16xC, 24xY/Z

CSM-56450D100W90-M10A

56

450

100

90

10/5

190

20xC, 36xY/Z

CSM-40400D90W80-M12A

40

400

90

80

8/4

190

12

16xD, 24xY/Z

CSM-56450D100W90-M12A

56

450

100

90

10/5

190

20xD, 36xY/Z

CSM-40400D90W80-M14A

40

400

90

80

8/4

190

14

16xE, 24xY/Z

CSM-56450D100W90-M14A

56

450

100

90

10/5

190

20xE, 36xY/Z

CSM-40400D90W80-M16A

40

400

90

80

8/4

190

16

16xF, 24xY/Z

CSM-56450D100W90-M16A

56

450

100

90

10/5

190

20xF, 36xY/Z

CSM-40400D90W80-M18A

40

400

90

80

8/4

190

18

16xG, 24xY/Z

CSM-56450D100W90-M18A

56

450

100

90

10/5

190

20xG, 36xY/Z

CSM-48400D90W80-M20A

48

400

90

80

8/4

190

20

16xH, 32xY/Z

CSM-60450D100W90-M20A

60

450

100

90

10/5

190

20xH, 40xY/Z

CSM-48400D90W80-M22A

48

400

90

80

8/4

190

22

16x1, 32xY/Z

CSM-60450D100W90-M22A

60

450

100

90

10/5

190

20x1, 40xY/Z

CSM-48400D90W80-M24A

48

400

90

80

8/4

190

24

16xJ, 32xY/Z

CSM-60450D100W90-M24A

60

450

100

90

10/5

190

20xJ, 40xY/Z


◎ABOVE IS ONLY FOR REFERENCE.
◎STANDARD CUTTER WITHOUT INTERNAL COOLANT
◎INSERTS TO BE ORDERED SEPARATELY
