Gear Two-Station Fine Milling Cutter

Gear two-station precision milling series:CSM…B

Gear Two-Station Fine Milling Cutter
  • FEATURE
  • INQUIRY

MODEL

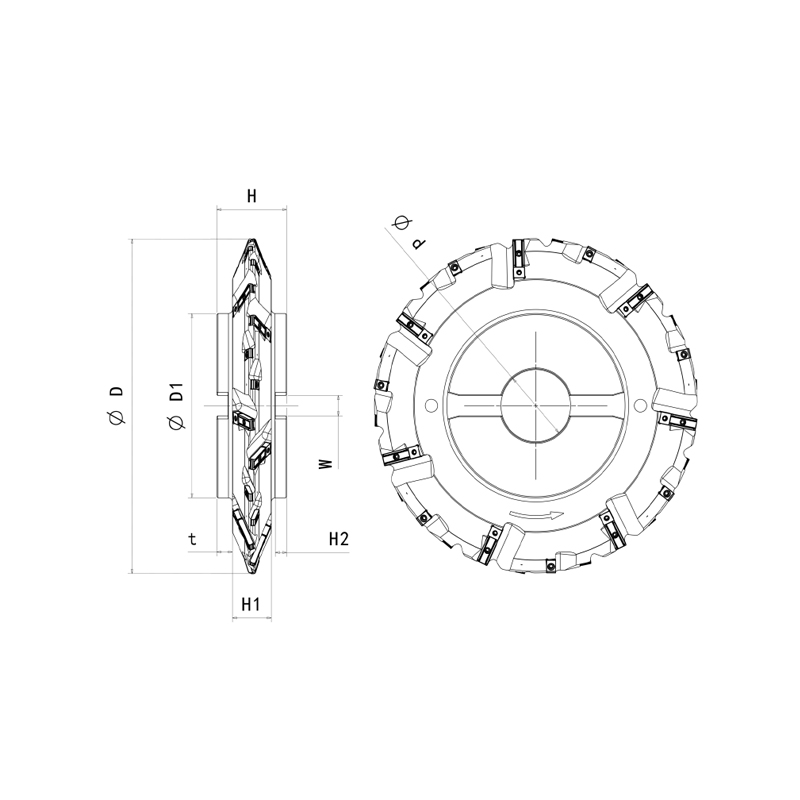

DIMENSIONS

MOULD

INSERTS

D

d

H

zeff.

D1

CSM-28400D100W90-M10B

28

400

100

90

7/7

190

10

14xA, 14xC

CSM-32450D100W90-M10B

32

450

100

90

8/8

190

16xA, 16xC

CSM-28400D100W90-M12B

28

400

100

90

7/7

190

12

14xA, 14xD

CSM-32450D100W90-M12B

32

450

100

90

8/8

190

16xA, 16xD

CSM-28400D100W90-M14B

28

400

100

90

7/7

190

14

14xA, 14xE

CSM-32450D100W90-M14B

32

450

100

90

8/8

190

16xA, 16xE

CSM-28400D100W90-M16B

28

400

100

90

7/7

190

16

14xA, 14xF

CSM-32450D100W90-M16B

32

450

100

90

8/8

190

16xA, 16xF

CSM-28400D100W90-M18B

28

400

100

90

7/7

190

18

14xA, 14xG

CSM-32450D100W90-M18B

32

450

100

90

8/8

190

16xA, 16xG

CSM-28400D100W90-M20B

28

400

100

90

7/7

190

20

14xB, 14xH

CSM-32450D100W90-M20B

32

450

100

90

8/8

190

16xB, 16xH

CSM-28400D100W90-M22B

28

400

100

90

7/7

190

22

14xB, 14x1

CSM-32450D100W90-M22B

32

450

100

90

8/8

190

16xB, 16x1

CSM-28400D100W90-M24B

28

400

100

90

7/7

190

24

14xB, 14xJ

CSM-32450D100W90-M24B

32

450

100

90

8/8

190

16xB, 16xJ


◎ABOVE IS ONLY FOR REFERENCE.
◎STANDARD CUTTER WITHOUT INTERNAL COOLANT
◎INSERTS TO BE ORDERED SEPARATELY
