Wholesale 3CGF Shallow groove milling cutter shank

Home / Product / Milling Cutter / Groove Milling Cutter / 3CGF Shallow groove milling cutter shank
Shallow groove milling cutter shank

3CGF Shallow groove milling cutter shank

Shallow groove milling cutter shank
  • FEATURE
  • INQUIRY
FEAURES

  • Shallow groove milling cutter shank
  • Blade turning diameterφ25 ~φ44mm
  • Wide range of blade widths, suitable for all kinds of shallow grooves and spring grooves

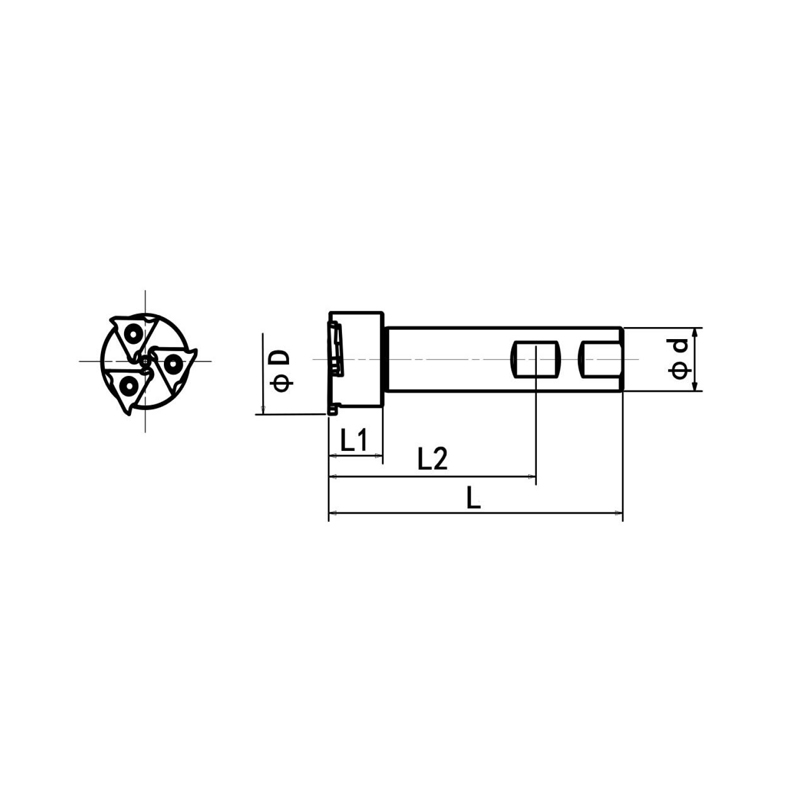

MODEL



DIMENSION MM

Grooving width (do)

INSERTS

D

d

LI

L2

L

CE3CGF -125L125Z25R-16

1

25

25

40

93

125

1. 10〜3. 00

3CGF 16L110〜300

CE3CGF -339L125Z25R-16

3

39

25

23

93

125

1. 10〜3. 00

CE3CGF -344L125Z25R-22

3

44

25

23

93

125

1.25〜4. 80

3CGF 22L125〜480


◎STANDARD CUTTER WITHOUT INTERNAL COOLANT
◎INSERTS to be ordered separately
◎Note that right-hand shanks are paired with left-hand blades


ACCESSORY

MODEL

SCREW

WRENCH





CE3CGF -16

CSG4013-P

CTS15W-P

CE3CGF -22

CSG5016

CTS20W
