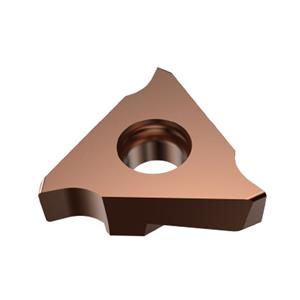

3CGF**16L/22L Grooving Tool

INSERT
  • FEATURE
  • INQUIRY

INSERT

SHAPE

INTRODUCTION





vertical blade Shallow Grooved Inserts This is the left blade

PRODUCT MODEL

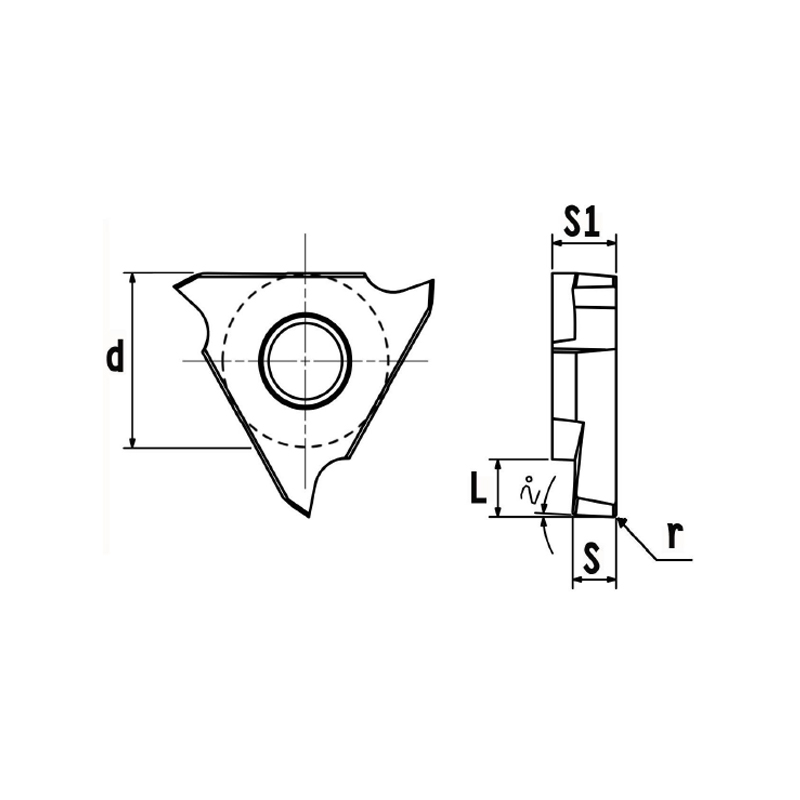

DIMENSION

GRADE

S

L

0d

SI

r

CT5520

3CGF 16L110-R01

1. 10

2.0

9. 525

3.18

0.1

3CGF 16L125-R02

1.25

2.0

9. 525

3.18

0.2

3CGF 16L145-R02

1.45

2.0

9. 525

3.18

0.2

3CGF 16L150-R02

1.50

2.0

9. 525

3.18

0.2

3CGF 16L175-R02

1.75

2.0

9. 525

3.18

0.2

3CGF 16L185-R02

1.85

2.5

9. 525

3.18

0.2

3CGF 16L200-R02

2.00

2.5

9. 525

3.18

0.2

3CGF 16L250-R02

2. 50

2.5

9. 525

3.18

0.2

3CGF 16L300-R02

3.00

3.0

9. 525

3.18

0.2

3CGF 22L125-R02

1.25

2.0

12.7

3.18

0.2

3CGF 22L145-R02

1.45

2.0

12.7

3.18

0.2

3CGF 22L150-R02

1.50

3.5

12.7

4. 76

0.2

3CGF 22L175-R02

1.75

3.5

12.7

4. 76

0.2

3CGF 22L185-R02

1.85

3.5

12.7

4. 76

0.2

3CGF 22L200-R02

2.00

3.5

12.7

4. 76

0.2

3CGF 22L230-R02

2.30

3.5

12.7

4. 76

0.2

3CGF 22L250-R03

2. 50

4.0

12.7

4. 76

0.3

3CGF 22L265-R03

2.65

4.0

12.7

4. 76

0.3

3CGF 22L280-R03

2.80

4.0

12.7

4. 76

0.3

3CGF 22L300-R03

3.00

4.0

12.7

4. 76

0.3

3CGF 22L320-R03

3.20

4.0

12.7

4. 76

0.3

3CGF 22L330-R03

3.30

4.0

12.7

4. 76

0.3

3CGF 22L350-R03

3. 50

5.0

12.7

4. 76

0.3

3CGF 22L400-R04

4.0

5.0

12.7

4. 76

0.4

3CGF 22L430-R04

4.3

5.0

12.7

4. 76

0.4

3CGF 22L450-R04

4.5

5.0

12.7

4. 76

0.4

3CGF 22L480-R04

4.8

5.0

12.7

5. 06

0.4
