3CGF**16R/22R

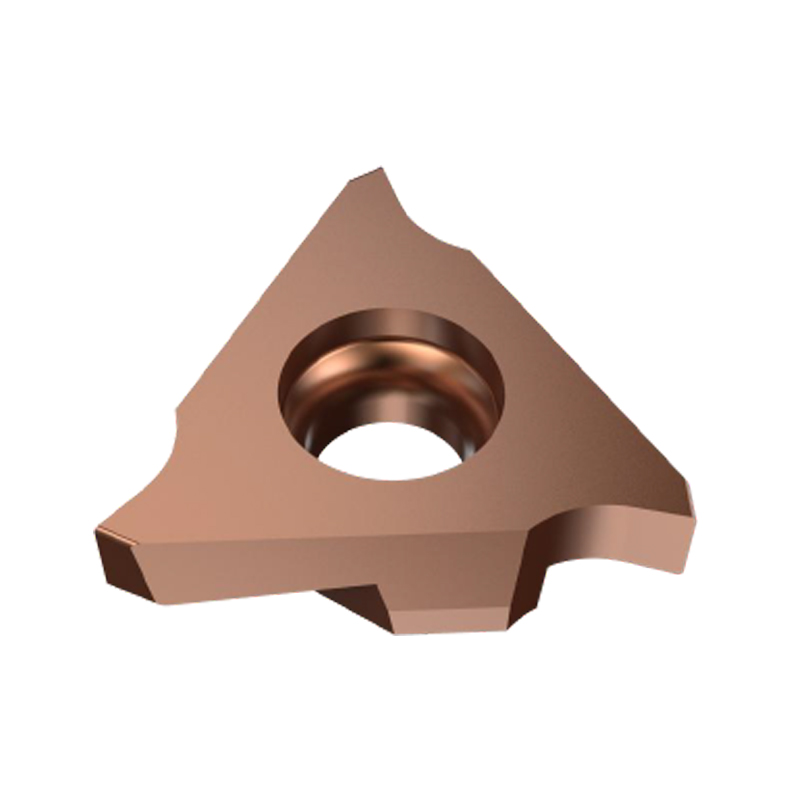

MILLING INSERT Grooving Tool

3CGF**16R/22R
  • FEATURE
  • INQUIRY

INSERT

SHAPE

INTRODUCTION





vertical blade Shallov Grooved Inserts This is the RIGHT blade

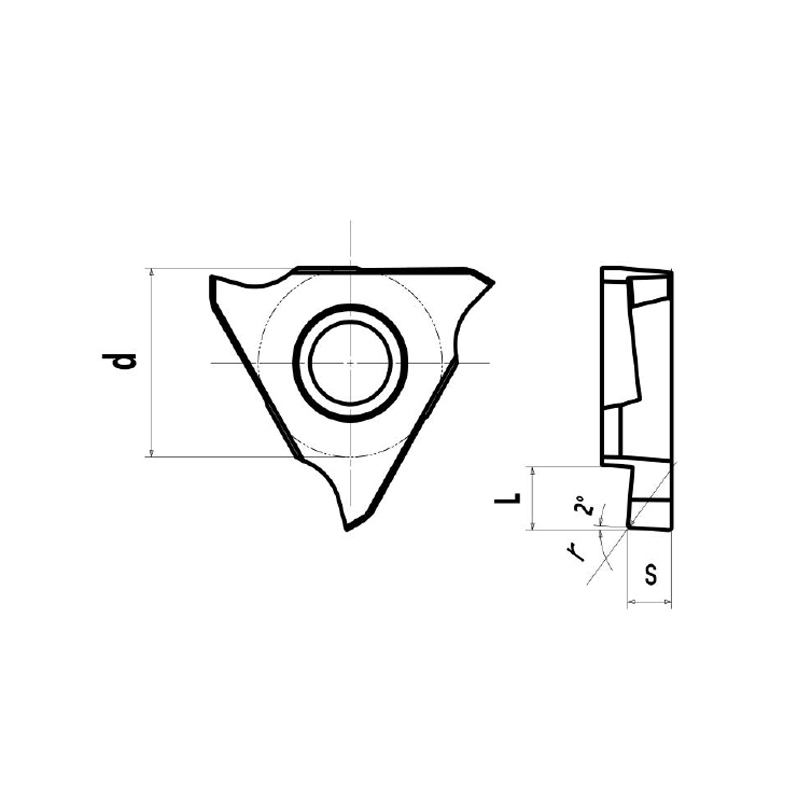

INSERT MODEL

DIMENSION

GRADE

S

L

0d

SI

r

CT5520

3CGF 16R110-R01

1. 10

2.0

9. 525

3.18

0.1

3CGF 16R125-R02

1.25

2.0

9. 525

3.18

0.2

3CGF 16R145-R02

1.45

2.0

9. 525

3.18

0.2

3CGF 16R150-R02

1.50

2.0

9. 525

3.18

0.2

3CGF 16R175-R02

1.75

2.0

9. 525

3.18

0.2

3CGF 16R185-R02

1.85

2.5

9. 525

3.18

0.2

3CGF 16R200-R02

2.00

2.5

9. 525

3.18

0.2

3CGF 16R250-R02

2. 50

2.5

9. 525

3.18

0.2

3CGF 16R300-R02

3.00

3.0

9. 525

3.18

0.2

3CGF 22R125-R02

1.25

2.0

12.7

3.18

0.2

3CGF 22R145-R02

1.45

2.0

12.7

3.18

0.2

3CGF 22R150-R02

1.50

3.5

12.7

4. 76

0.2

3CGF 22R175-R02

1.75

3.5

12.7

4. 76

0.2

3CGF 22R185-R02

1.85

3.5

12.7

4. 76

0.2

3CGF 22R200-R02

2.00

3.5

12.7

4. 76

0.2

3CGF 22R230-R02

2.30

3.5

12.7

4. 76

0.2

3CGF 22R250-R03

2. 50

4.0

12.7

4. 76

0.3

3CGF 22R265-R03

2.65

4.0

12.7

4. 76

0.3

3CGF 22R280-R03

2.80

4.0

12.7

4. 76

0.3

3CGF 22R300-R03

3.00

4.0

12.7

4. 76

0.3

3CGF 22R320-R03

3.20

4.0

12.7

4. 76

0.3

3CGF 22R330-R03

3.30

4.0

12.7

4. 76

0.3

3CGF 22R350-R03

3. 50

5.0

12.7

4. 76

0.3

3CGF 22R400-R04

4.0

5.0

12.7

4. 76

0.4

3CGF 22R430-R04

4.3

5.0

12.7

4. 76

0.4

3CGF 22R450-R04

4.5

5.0

12.7

4. 76

0.4

3CGF 22R480-R04

4.8

5.0

12.7

5. 06

0.4
