TTFR/L-RN Grooving Tool

FACE DEEP GROOVING AND TURNING MILL

Contact now

FEATURE
INQUIRY

FEAURES

Externalface grooving holder

APPLICATION

Cut width: 3～6mm
Maximum depth of cut: 25mm

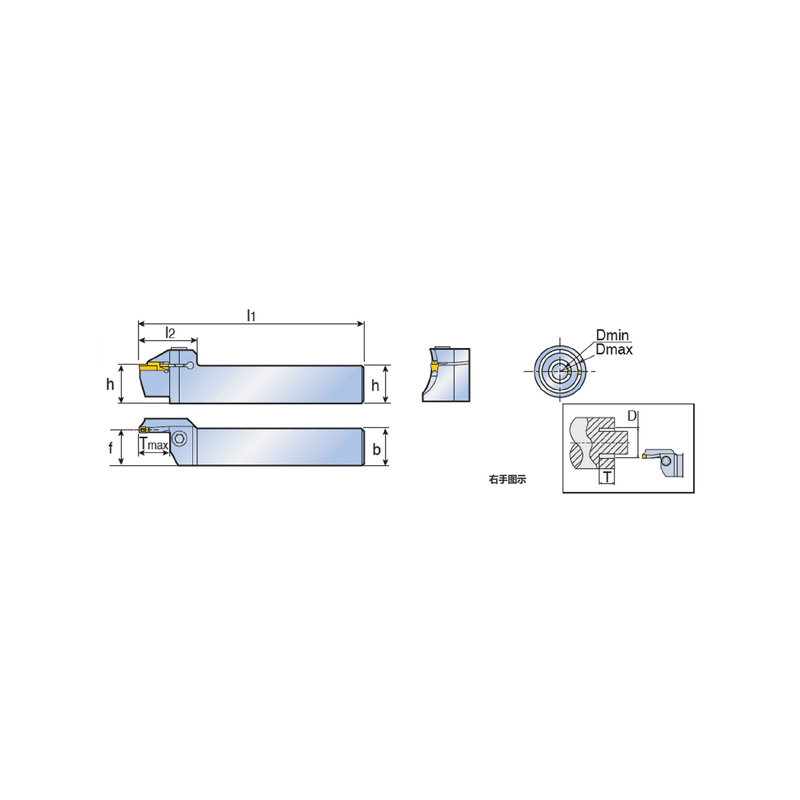

PRODUCT MODEL	HOLDER SIZE		DIMENSION								COMPATIBLE INSERT
PRODUCT MODEL	HOLDER SIZE		h	b	11	f	12	Tmax	Dmin	Dmax	COMPATIBLE INSERT
TTFR/L 20-21-30-3T10RN	3		20	20	125	19	31	10	21	30	TDGU TDGX TDGC TDEF
TTFR/L 20-24-35-3T10RN	3		20	20	125	19	31	10	24	35
TTFR/L 20-29-40-3T10RN	3		20	20	125	19	31	10	29	40
TTFR/L 20-34-50-3T10RN	3		20	20	125	19	31	10	34	50
TTFR/L 20-44-70-3T15RN	3		20	20	125	19	35	15	44	70
TTFR/L 20-64-100-3T15RN	3		20	20	125	19	35	15	64	100
TTFR/L 20-19-30-4T10RN	4		20	20	125	18.6	31	10	19	30
TTFR/L 20-22-36-4T10RN	4		20	20	125	18.6	31	10	22	36
TTFR/L 20-28-42-4T16RN	4		20	20	125	18.6	36	16	28	42
TTFR/L 20-34-50-4T16RN	4		20	20	125	18.6	36	16	34	50
TTFR/L 20-42-70-4T16RN	4		20	20	125	18.6	36	16	42	70
TTFR/L 20-62-120-4T16RN	4		20	20	125	18.6	36	16	62	120
TTFR/L 20-112-200-4T16RN	4		20	20	125	18.6	36	16	112	200
TTFR/L 25-30-3RN	3		25	25	150	24.0	38	10.0	24	35
TTFR/L 25-35-3RN	3		25	25	150	24.0	38	10.0	29	40
TTFR/L 25-40-3RN	3		25	25	150	24.0	38	10.0	34	50
TTFR/L 25-50-3RN	3		25	25	150	24.0	38	15.0	44	70
TTFR/L 25-70-3RN	3		25	25	150	24.0	38	15.0	64	100
TTFR/L 25-30-4RN	4		25	25	150	23.6	39	10.0	22	36
TTFR/L 25-36-4RN	4		25	25	150	23.6	39	20.0	28	42
TTFR/L 25-42-4RN	4		25	25	150	23.6	39	20.0	34	50
TTFR/L 25-50-4RN	4		25	25	150	23.6	39	20.0	42	70
TTFR/L 25-70-4RN	4		25	25	150	23.6	39	20.0	62	120
TTFR/L 25-120-4RN	4	25		25	150	23.6	39	20.0	112	200
TTFR/L 25-200-4RN	4	25		25	150	23.6	39	20.0	200	CO
TTFR/L 25-60-5RN	5	25		25	150	23. 1	49	25.0	50	80
TTFR/L 25-60-5T15RN	5	25		25	150	23. 1	41	15.0	50	80
TTFR/L 25-80-5RN	5	25		25	150	23. 1	49	25.0	70	110
TTFR/L 25-80-5T15RN	5	25		25	150	23. 1	41	15.0	70	110
TTFR/L 25-110-5RN	5	25		25	150	23. 1	49	25.0	100	150
TTFR/L 25-150-5RN	5	25		25	150	23. 1	49	25.0	140	200
TTFR/L 25-200-5RN	5	25		25	150	23. 1	49	25.0	200	oo
TTFR/L 25-60-6RN	6	25		25	150	22.6	49	25.0	48	70
TTFR/L 25-70-6RN	6	25		25	150	22.6	49	25.0	58	100
TTFR/L 25-100-6RN	6	25		25	150	22.6	49	25.0	88	180
TTFR/L 25-180-6RN	6	25		25	150	22.6	49	25.0	168	400
TTFR/L 25-400-6RN	6	25		25	150	22.6	49	25.0	400	OO

◎INSERTS to be ordere s
◎This SHANK has no internal coolant

ACCESSORY

PRODUCT MODEL	SCREW	WRENCH
PRODUCT MODEL
TTFR/L 20…RN	CLA0602010	CBL50
TTFR/L 25-3/4RN	CLA0602510	CBL50
TTFR/L 25…5/6RN	CLA08020125	CBL60

face machining	Note on insert selection
	First, confirm the minimum machining diameter of end face GROOVING on page E04.
