External Shallow Grooving Toolholder

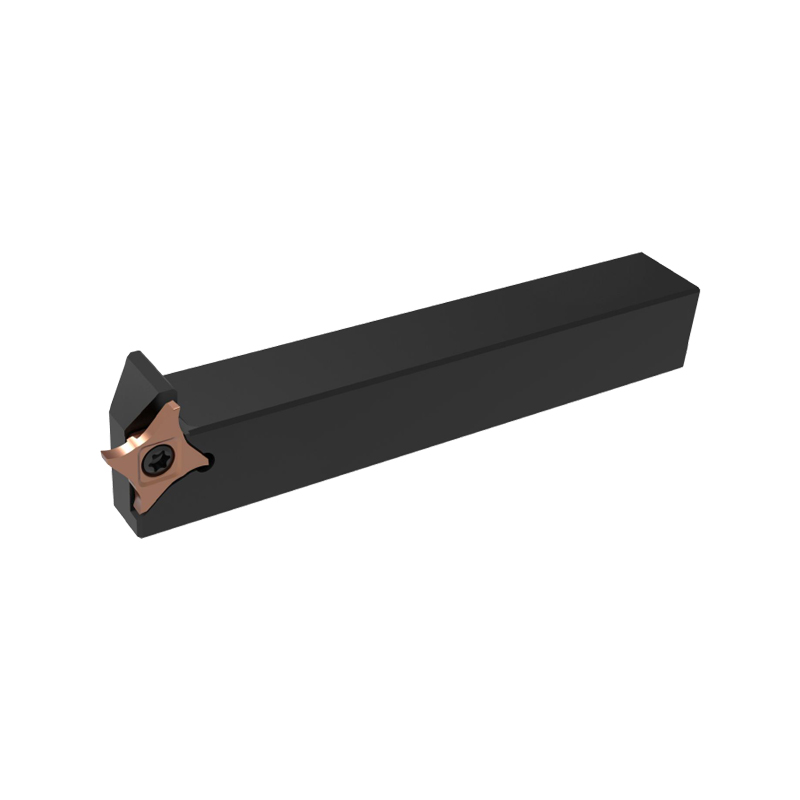

4CH/4CHP Grooving Holders

External Shallow Grooving Toolholder
  • FEATURE
  • INQUIRY
FEAURES

  • Shallow groove turning tool holder


APPLICATION

  • Cut width: 2.0~3.5mm ·
  • Depth of cut:4.5-6.5mm

PRODUCT MODEL

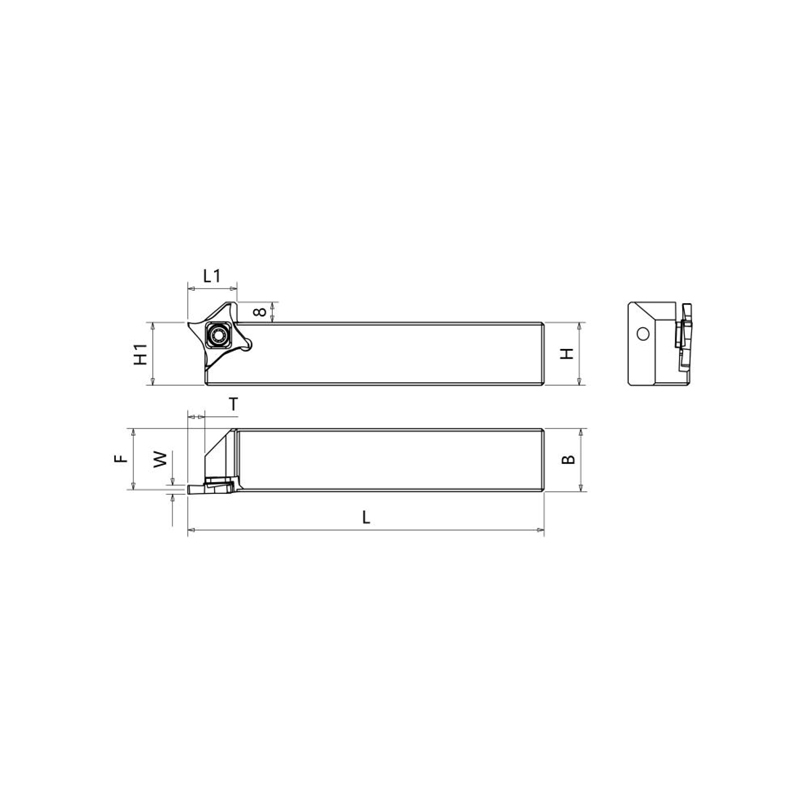

DIMENSION

COMPATIBLE INSERT

H

B

L

F

LI

T

CUT WIDTH

4CHR/L 10-27

10

10

120

21

4. 5-6. 5

2. 0-3. 5

4CGF 27

4CHR/L 12-27

12

12

120

25

4CHR/L 16-27

16

16

120

30

4CHR/L 20-27

20

20

120

25

4CHR/L 25-27

25

25

135

30


◎Inserts are ordered separately, this shank has no internal coolant.
◎RIGHT SHANK FOR RIGHT INSERT, LEFT SHANK FOR LEFT INSERTS

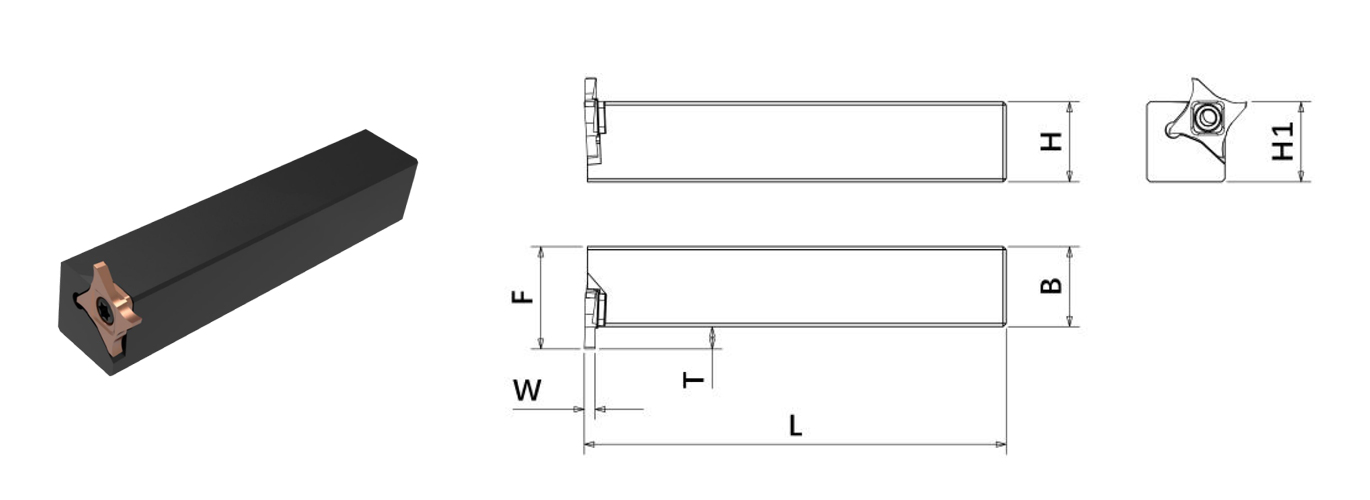

PRODUCT MODEL

DIMENSION

COMPATIBLE INSERT

H

B

L

F



T

cut width w

4CHPR/L 16-27

16

16

120

24









4CHPR/L 20-27

20

20

120

28



4. 5-6. 5

2. 0-3. 5

4CGF 27

4CHPR/L 25-27

25

25

135

33








◎Inserts are ordered separately, this shank has no internal coolant.
◎RIGHT SHANK FOR LEFT INSERTS,LEFT SHANK(L)FOR RIGHT INSERTS(R)。
