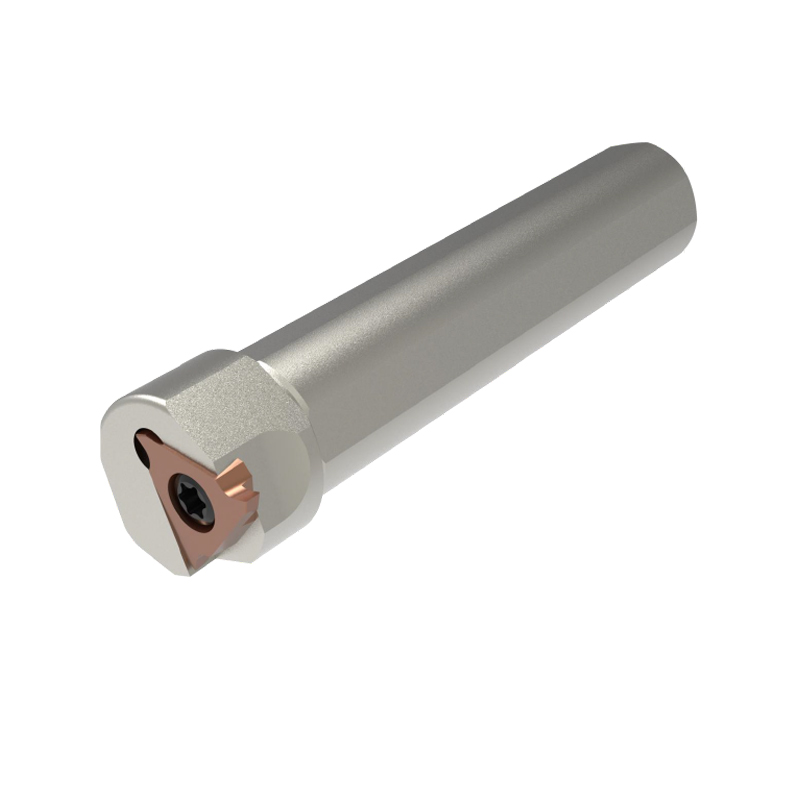

SQCR/L Grooving Holders

Inner hole shallow groove turning tool holder

Contact now

FEATURE
INQUIRY

FEAURES

internal hole shallow grooving turning tool holder

APPLICATION

Cut width: 2～4mm
Maximum depth of cut: 8.5mm

◎RIGHT HAND SHANK

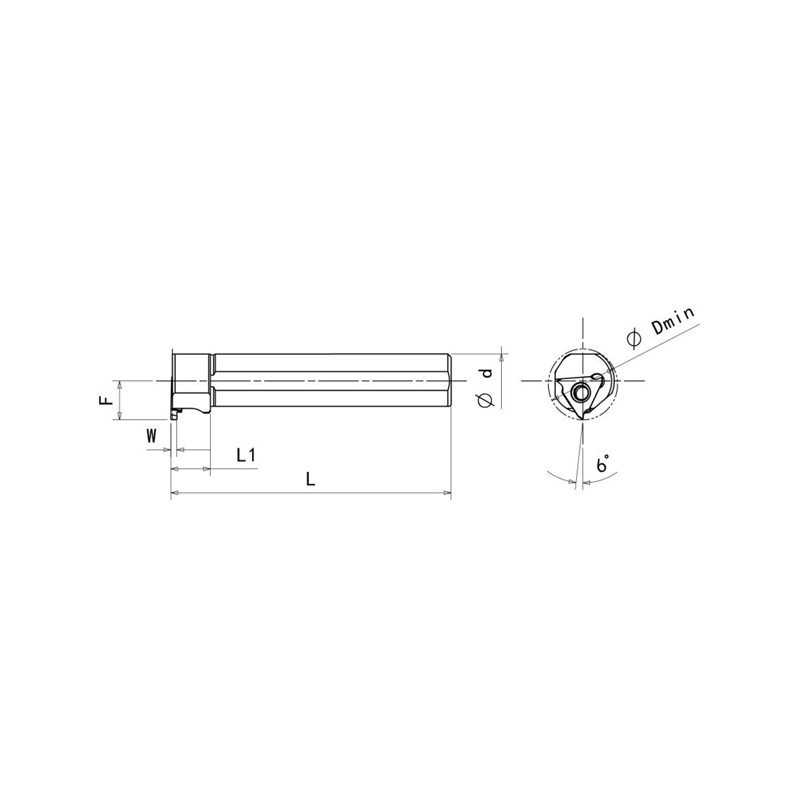

PRODUCT MODEL	DIMENSION						COMPATIBLE INSERT
PRODUCT MODEL	Dmin	d	L	F	LI	cut wide	COMPATIBLE INSERT
S20M-QC1615R/L 25	26	20	150	12.5	15	1. 1-1.8	3CGF 16R/L 110-180
S20M-QC1625R/L 25	26	20	150	12.5	15	1. 8-3.0	3CGF 16R/L 180-300
S25M-QC2215R/L 35	35	25	150	18.2	15	1.0-2. 3	3CGF 22R/L 100-230
S25M-QC2225R/L 35	35	25	150	18.2	20	2. 3-3. 3	3CGF 22R/L 230-330
S25M-QC2235R/L 35	35	25	150	18.2	20	3. 3-4. 8	3CGF 22R/L 330-480

◎INSERTS to be ordere s
◎RIGHT SHANK FOR RIGHT INSERT, LEFT SHANK FOR LEFT INSERTS

◎This SHANK has no internal coolant

ACCESSORY

PRODUCT MODEL	SCREW	WRENCH
PRODUCT MODEL
SQCR/L16	CSG4011-P	CTS15W-P
SQCR/L22	CSG5012-P	CTS20W-P

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional SQCR/L Grooving Holders suppliers and Wholesale SQCR/L Grooving Holders company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
