CDH-SE Drilling Inserts

HEAD CHANGABLE DRILL INSERTS

Contact now

FEATURE
INQUIRY

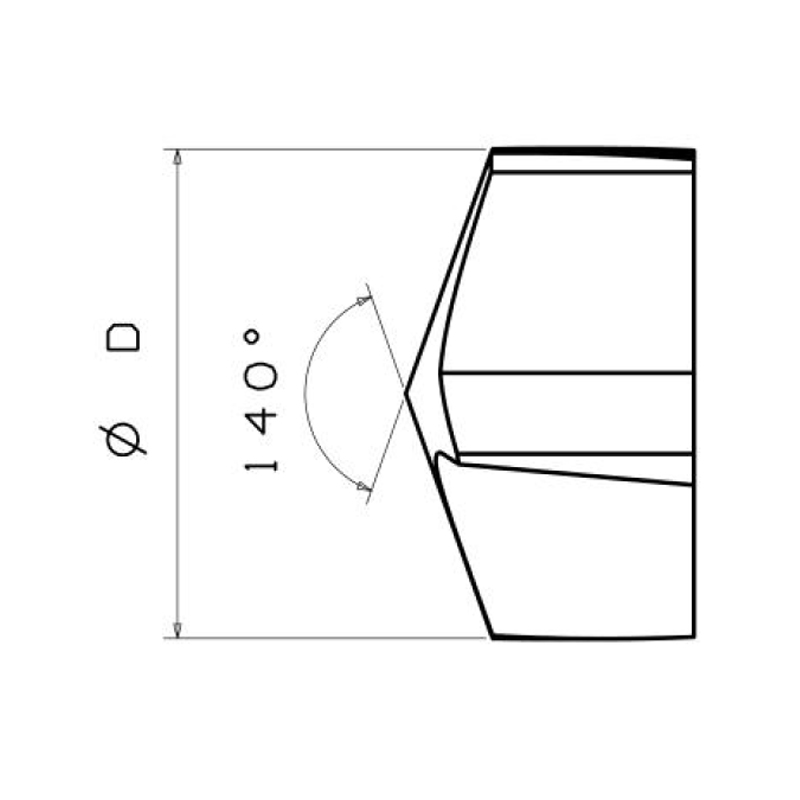

PRODUCT MODEL	DIMENSION			toleranceK7 (METRIC)
	D		HOLDER SIZE
	mm	In	HOLDER SIZE
CDH1250SE	12. 50	0. 4921	C
CDH1300SE	13. 00	0.5118	C
CDH1350SE	13. 50	0. 531	c
CDH1351SE	13.51	0. 5319	B
CDH1400SE	14. 00	0. 5512	B
CDH1450SE	14. 50	0. 5709	B
CDH1451SE	14.51	0. 5713	A	+0. 001
CDH1500SE	15. 00	0.5906	A	/+0.019
CDH1550SE	15. 50	0.6102	A
CDH1600SE	16. 00	0.6299	1
CDH1650SE	16. 50	0.6496	1
CDH1700SE	17. 00	0.6693	1
CDH1750SE	17. 50	0. 689	1
CDH1800SE	18. 00	0. 7087	1
CDH1801SE	18.01	0. 7087	2
CDH1850SE	18. 50	0. 7283	2
CDH1900SE	19. 00	0. 748	2
CDH1950SE	19. 50	0. 7677	2
CDH2000SE	20. 00	0. 7874	3	+0. 002
CDH2050SE	20. 50	0. 8071	3	/+0.023
CDH2100SE	21.00	0.8268	3
CDH2150SE	21.50	0. 8460	3
CDH2200SE	22. 00	0.8661	3
CDH2201SE	22.01	0.8665	4
CDH2250SE	22. 50	0.8858	4
CDH2300SE	23. 00	0.9055	4
CDH2350SE	23. 50	0.9252	4
CDH2400SE	24. 00	0.9449	4
CDH2401SE	24.01	0.9453	5
CDH2450SE	24. 50	0.9646	5
CDH2500SE	25. 00	0. 9843	5
CDH2550SE	25. 50	1. 0039	5
CDH2600SE	26. 00	1. 0236	5	+0. 002 /+0.023
CDH2601SE	26.01	1. 0240	6
CDH2650SE	26. 50	1. 0433	6
CDH2700SE	27. 00	1. 0630	6
CDH2750SE	27. 50	1.0827	6
CDH2800SE	28. 00	1.1024	6
CDH2801SE	28. 016	1.1030	7
CDH2850SE	28. 50	1.1220	7
CDH2900SE	29. 00	1.1417	7
CDH2950SE	29. 50	1.1614	7
CDH3000SE	30. 00	1.1811	7
CDH3001SE	30.01	1.1815	8
CDH3050SE	30. 50	1. 2008	8	+0. 002 /+0.027
CDH3100SE	31.00	1. 2205	8
CDH3150SE	31.50	1. 2402	8
CDH3200SE	32. 00	1. 2598	8
