Wholesale XOP 5160-20T2-05 5D indexable insert u drill

Home / Product / Drill Cutter / Indexable Insert U Drill / XOP 5160-20T2-05 5D indexable insert u drill
We are expert in providing customized service.  Our powerful technical team will design the new products according to the drawings and the workpiece. Design and create new ways of processing to reduce the process flow and improve the production efficiency.

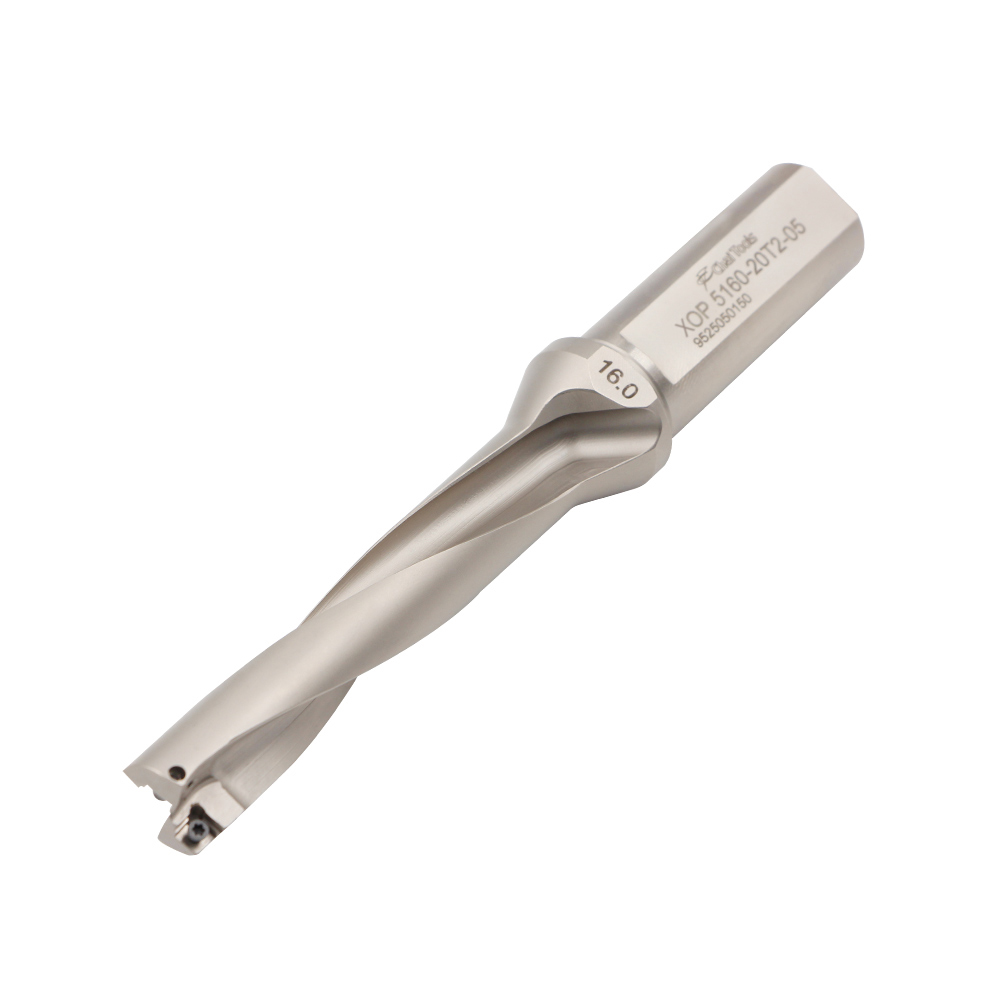

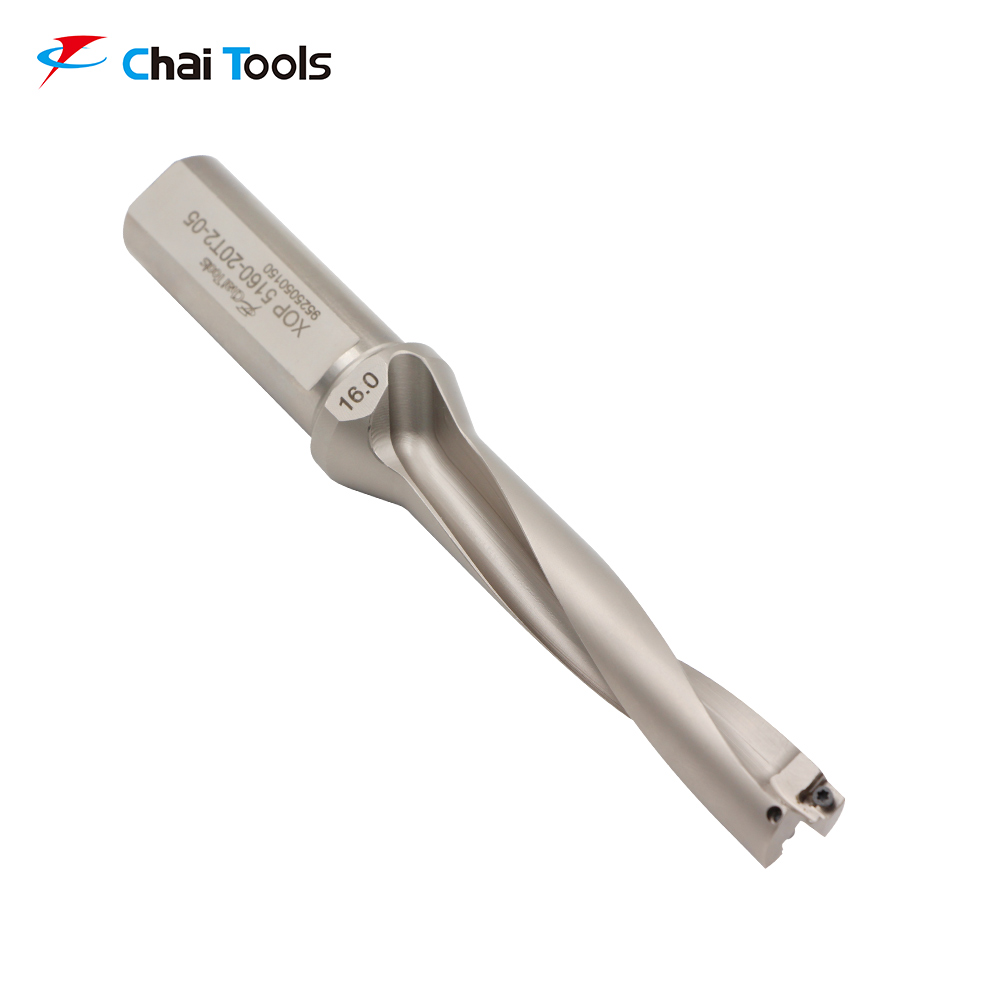

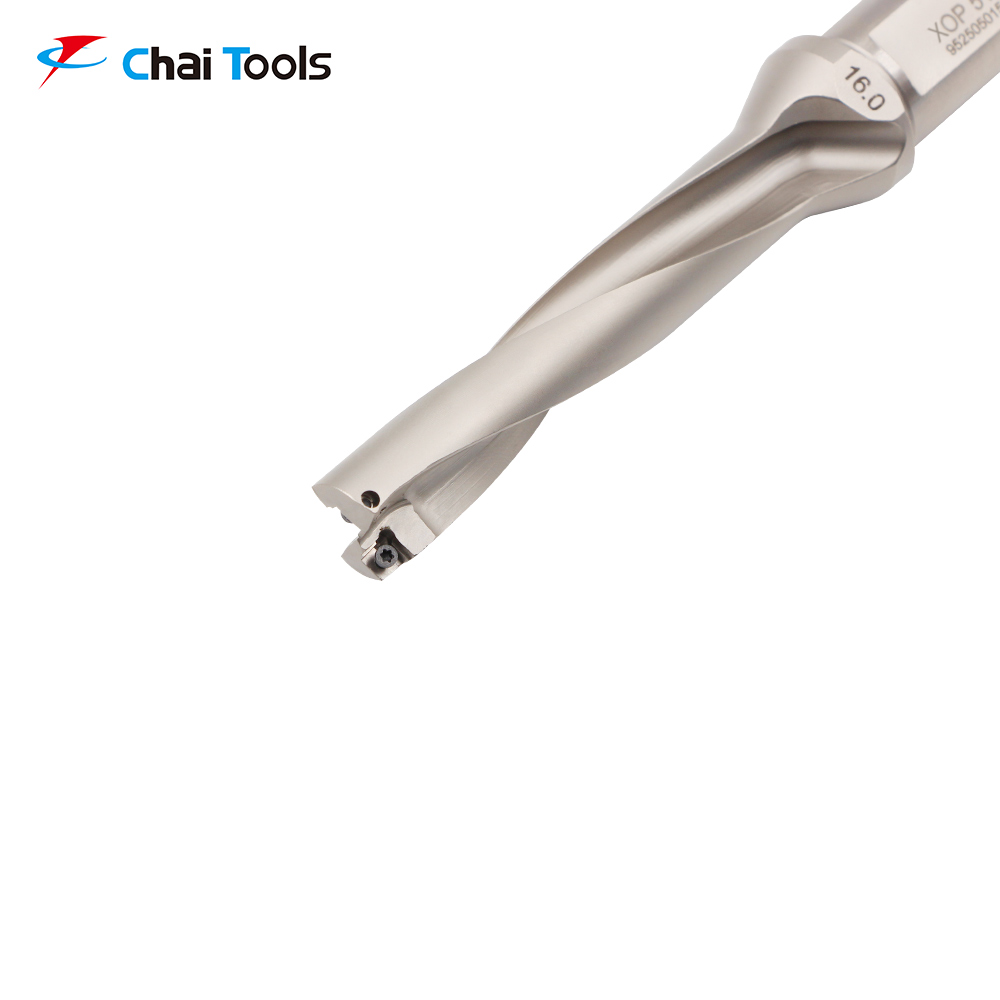

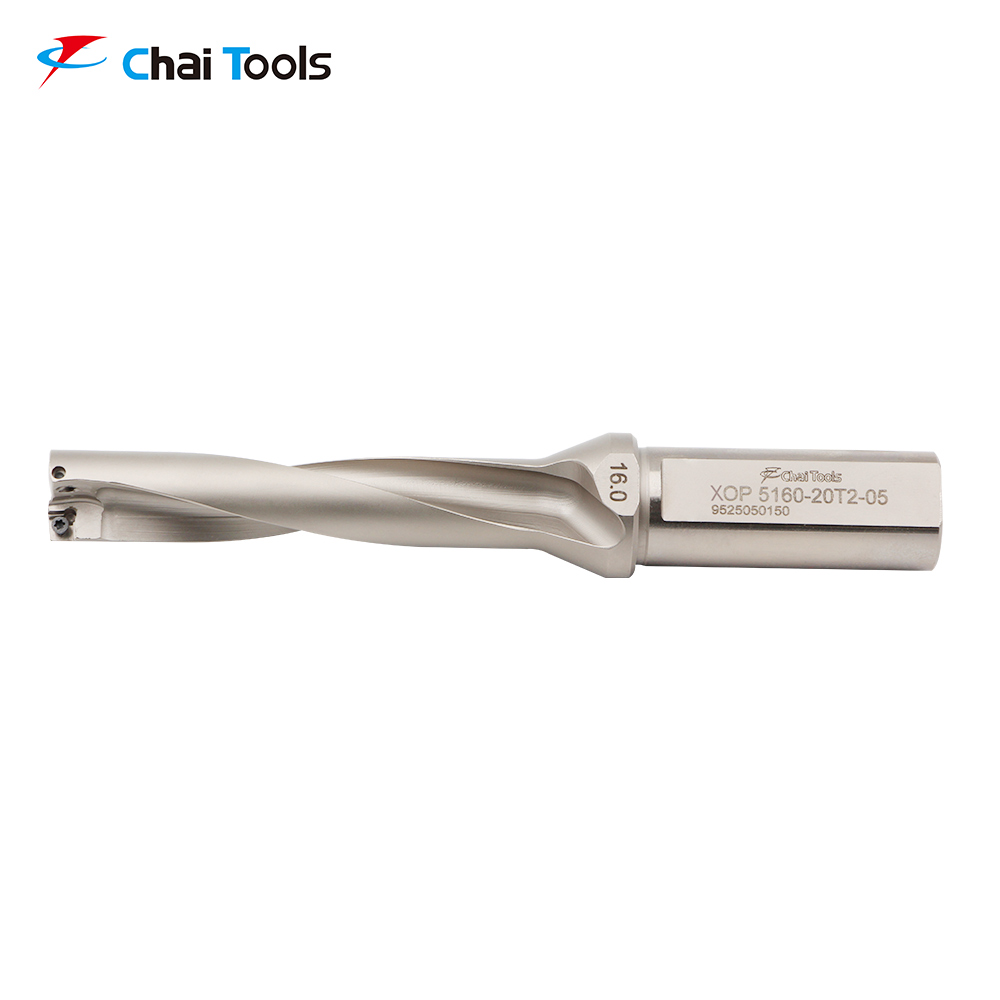

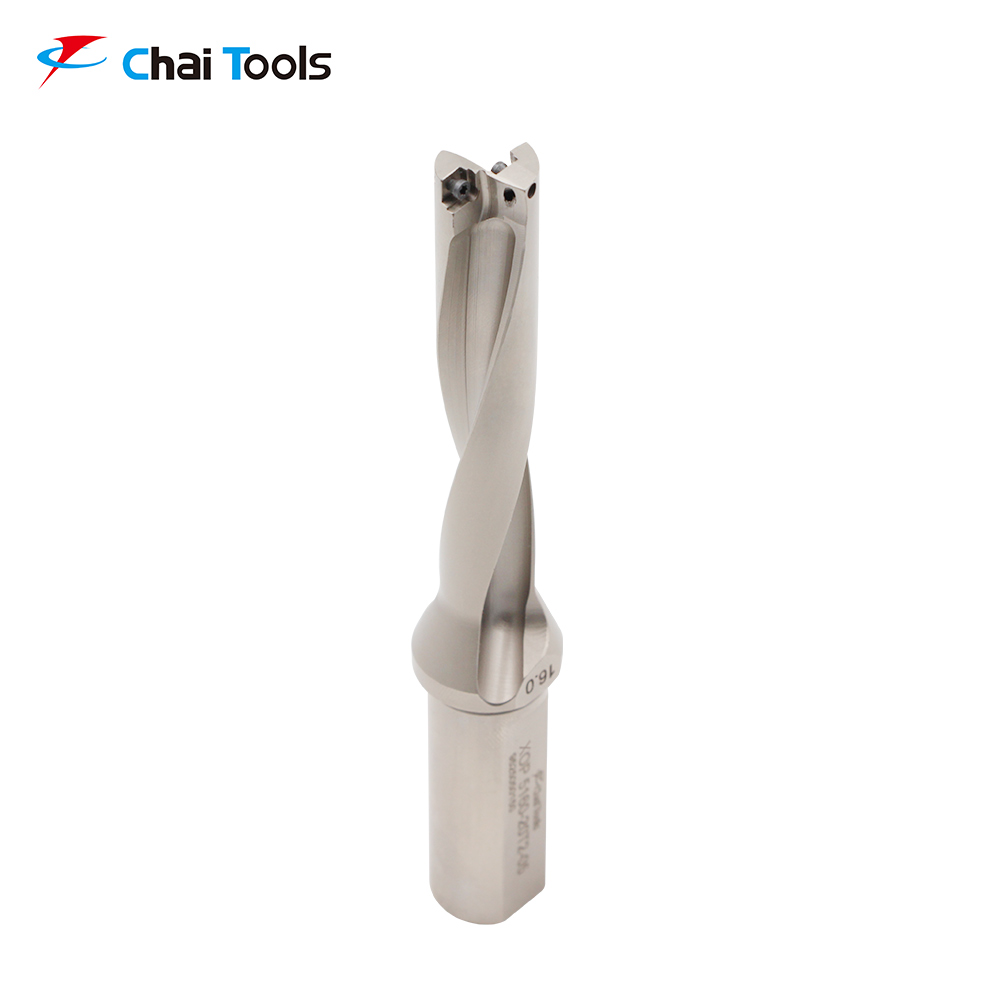

XOP 5160-20T2-05 5D indexable insert u drill

We are expert in providing customized service.  Our powerful technical team will design the new products according to the drawings and the workpiece. Design and create new ways of processing to reduce the process flow and improve the production efficiency.
Contact now
  • FEATURE
  • INQUIRY

1. One kind of indexable drill bit, the range of drilling diameter is Φ14~Φ50mm. The Drilling depth is 2XDiameter.

2. Matched with SOMT insert and also our own XOMX insert, almost has the same service life but

    much lower price, with good cost performance.

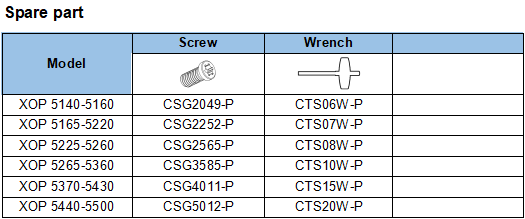

3. Spare parts are imported from Switzerland and Germany in good quality, further prolong the service life.

4. Provided complete specification and competitive price.

◎Drilling depth: 5XDia.

Model

Dimension（mm）

Insert

D

d

D3

L

L1

L2

Ls

XOP 5140-20T2-05

14.0

20

25

138

70

88

50

XOMX 05

XOP 5145-20T2-05

14.5

20

25

144

75

94

50

XOP 5150-20T2-05

15.0

20

25

144

75

94

50

XOP 5155-20T2-05

15.5

20

25

150

80

100

50

XOP 5160-20T2-05

16.0

20

25

150

80

100

50

XOP 5165-25T2-06

16.5

25

32

161

85

105

56

XOMX 06

XOP 5170-25T2-06

17.0

25

32

161

85

105

56

XOP 5175-25T2-06

17.5

25

32

167

90

111

56

XOP 5180-25T2-06

18.0

25

32

167

90

111

56

XOP 5185-25T2-06

18.5

25

32

172

95

116

56

XOP 5190-25T2-06

19.0

25

32

172

95

116

56

XOP 5195-25T2-07

19.5

25

32

179

100

123

56

XOMX 07

XOP 5200-25T2-07

20.0

25

32

179

100

123

56

XOP 5205-25T2-07

20.5

25

32

184

105

128

56

XOP 5210-25T2-07

21.0

25

32

184

105

128

56

XOP 5215-25T2-07

21.5

25

32

189

110

133

56

XOP 5220-25T2-07

22.0

25

32

189

110

133

56

XOP 5222-25T2-07

22.2

25

32

189

111

133

56

XOP 5225-25T2-08

22.5

25

32

193

115

137

56

XOMX 08

XOP 5230-25T2-08

23.0

25

32

193

115

137

56

XOP 5230-32T2-08

23.0

32

40

197

115

137

60

XOP 5235-25T2-08

23.5

25

32

198

120

142

56

XOP 5235-32T2-08

23.5

32

40

202

120

142

60

XOP 5240-25T2-08

24.0

25

32

198

120

142

56

XOP 5240-32T2-08

24.0

32

40

202

120

142

60

XOP 5245-25T2-08

24.5

25

32

203

125

147

56

XOP 5245-32T2-08

24.5

32

40

207

125

147

60

XOP 5250-25T2-08

25.0

25

32

203

125

147

56

XOP 5250-32T2-08

25.0

32

40

207

125

147

60

XOP 5255-25T2-08

25.5

25

32

207

130

151

56

XOP 5255-32T2-08

25.5

32

40

211

130

151

60

XOP 5260-25T2-08

26.0

25

32

207

130

151

56

XOP 5260-32T2-08

26.0

32

40

211

130

151

60

XOP 5265-32T2-09

26.5

32

40

218

135

158

60

XOMX 09

XOP 5270-25T2-09

27.0

25

40

214

135

158

56

XOP 5270-32T2-09

27.0

32

40

218

135

158

60

XOP 5275-32T2-09

27.5

32

40

223

140

163

60

XOP 5280-25T2-09

28.0

25

40

219

140

163

56

XOP 5280-32T2-09

28.0

32

40

223

140

163

60

XOP 5282-32T2-09

28.2

32

40

223

141

163

60

XOP 5285-32T2-09

28.5

32

40

228

145

168

60

XOP 5290-25T2-09

29.0

25

40

224

145

168

56

XOP 5290-32T2-09

29.0

32

40

228

145

168

60

XOP 5395-32T2-09

39.5

32

40

233

150

173

60

XOP 5300-32T2-09

30.0

32

40

233

150

173

60

XOP 5305-32T2-09

30.5

32

40

238

155

178

60

XOP 5310-32T2-09

31.0

32

40

238

155

178

60

XOP 5320-32T2-11

32.0

32

40

243

160

183

60

XOMX 11

XOP 5320-40T2-11

32.0

40

50

253

160

183

70

XOP 5330-32T2-11

33.0

32

40

248

165

188

60

XOP 5330-40T2-11

33.0

40

50

258

165

188

70

XOP 5340-32T2-11

34.0

32

40

253

170

193

60

XOP 5340-40T2-11

34.0

40

50

263

170

193

70

XOP 5350-32T2-11

35.0

32

40

258

175

198

60

XOP 5350-40T2-11

35.0

40

50

268

175

198

70

XOP 5360-32T2-11

36.0

32

40

263

180

203

60

XOP 5360-40T2-11

36.0

40

50

273

180

203

70

XOP 5370-32T2-13

37.0

32

50

273

185

213

60

XOMX 13

XOP 5370-40T2-13

37.0

40

50

283

185

213

70

XOP 5380-32T2-13

38.0

32

50

278

190

218

60

XOP 5380-40T2-13

38.0

40

50

288

190

218

70

XOP 5390-32T2-13

39.0

32

50

283

195

223

60

XOP 5390-40T2-13

39.0

40

50

293

195

223

70

XOP 5400-32T2-13

40.0

32

50

288

200

228

60

XOP 5400-40T2-13

40.0

40

50

298

200

228

70

XOP 5410-40T2-13

41.0

40

50

303

205

233

70

XOP 5420-40T2-13

42.0

40

50

308

210

238

70

XOP 5430-40T2-13

43.0

40

50

313

215

243

70

XOP 5440-40T2-15

44.0

40

60

325

220

255

70

XOMX 15

XOP 5450-40T2-15

45.0

40

60

330

225

260

70

XOP 5460-40T2-15

46.0

40

60

335

230

265

70

XOP 5470-40T2-15

47.0

40

60

340

235

270

70

XOP 5480-40T2-15

48.0

40

60

345

240

275

70

XOP 5490-40T2-15

49.0

40

60

350

245

280

70

XOP 5500-40T2-15

50.0

40

60

355

250

285

70

◎Normal type has the inner-cooling holes.
◎Insert needs to be purchased separately.
◎Customized services are available.
