ALUMINUM MILL CUTTER：CFM90AE Milling Cutter

ALUMINUM MILL CUTTER

Contact now

FEATURE
INQUIRY

FEAURES

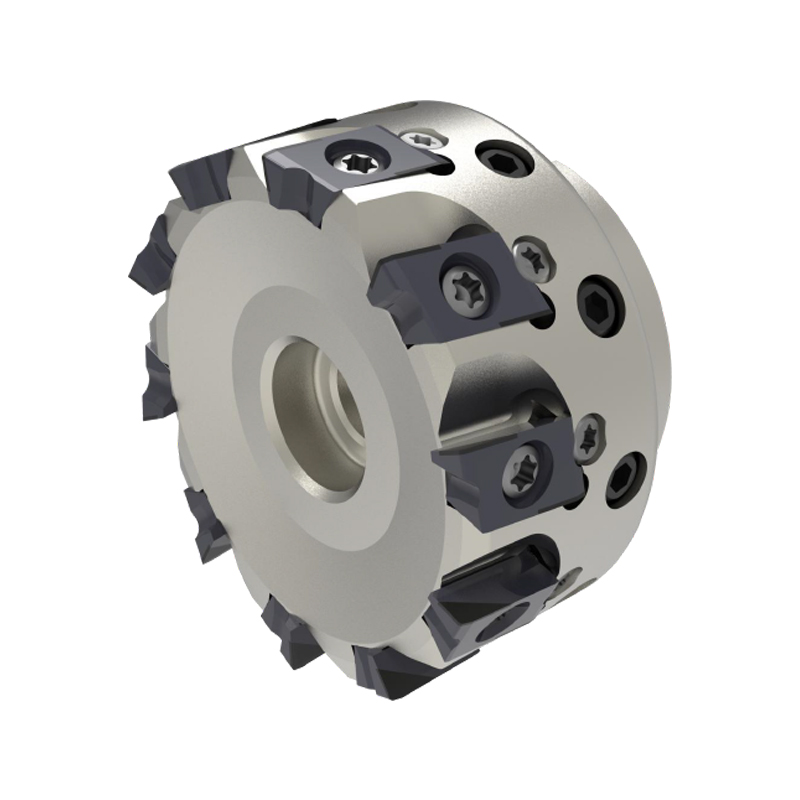

Cutter DIAφ40～φ63mm
Aluminum cutter head, dynamic balance treatment, high-speed machining applications Equipped with a fine-tuning mechanism, easy to adjust, suitable for finishing

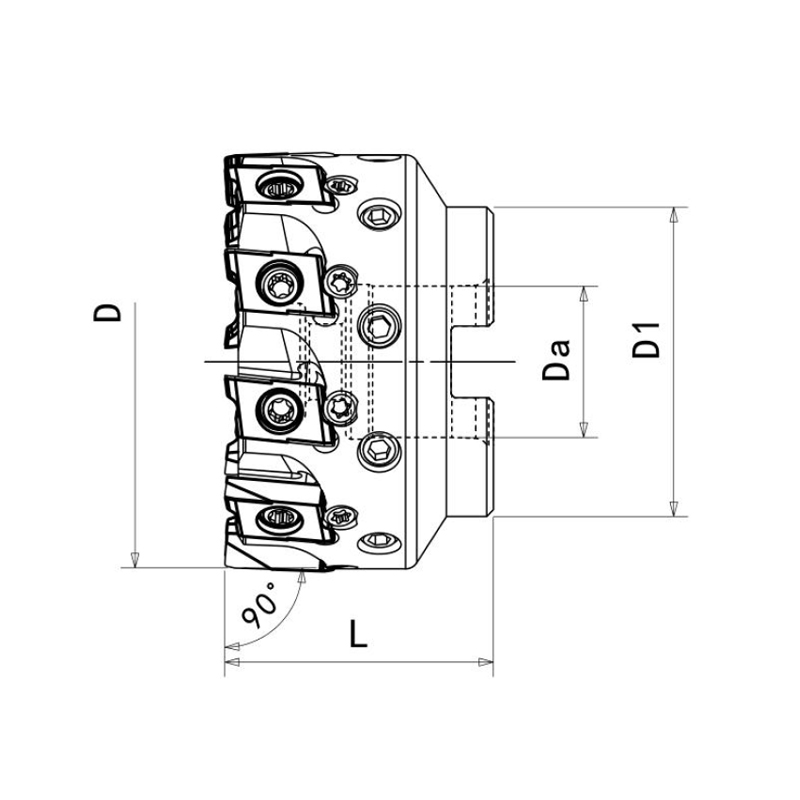

MODEL			DIMENSION				kg	MATERIAL	INSERT
MODEL		D	Da	D1	L	APraax	kg	MATERIAL	INSERT
CFM90AE-640A16R-15	6	40	16	36	40	11	0. 36	STEEL	AEGT 1504
CFM90AE-850A22R-15	8	50	22	45	40	11	0. 55
CFM90AE-1063A22R-15	10	63	22	45	40	11	0. 75

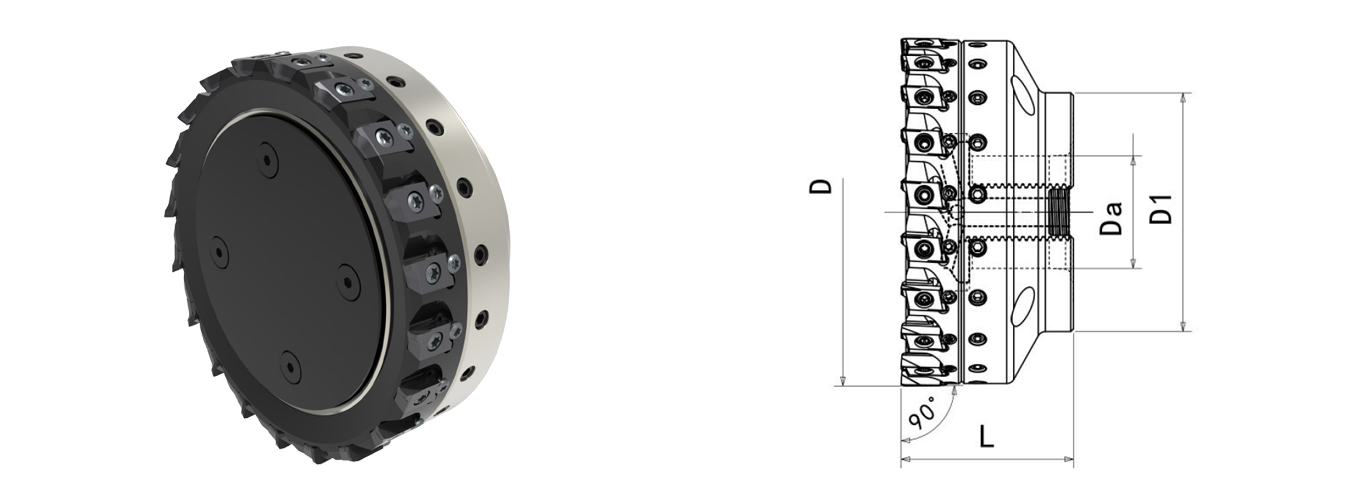

MODEL			DIMENSION				kg	MATERIAL	INSERT
MODEL		D	Da	D1	L	APraax	kg	MATERIAL	INSERT
CFM90AE-1280A27R-15	12	80	27	50	50	11	0. 96	STEEL RIGHT + ALU ALLOY BODY	AEGT 1504
CFM90AE-16100B32R-15	16	100	32	70	50	11	1.45
CFM90AE-20125B40R-15	20	125	40	90	63	11	2.40
CFM90AE-24160C40R-15	24	160	40	115	63	11	3.00
CFM90AE-30200C40R-15	30	200	60	150	63	11	4. 25
CFM90AE-36250C60R-15	36	250	60	200	63	11	6. 50

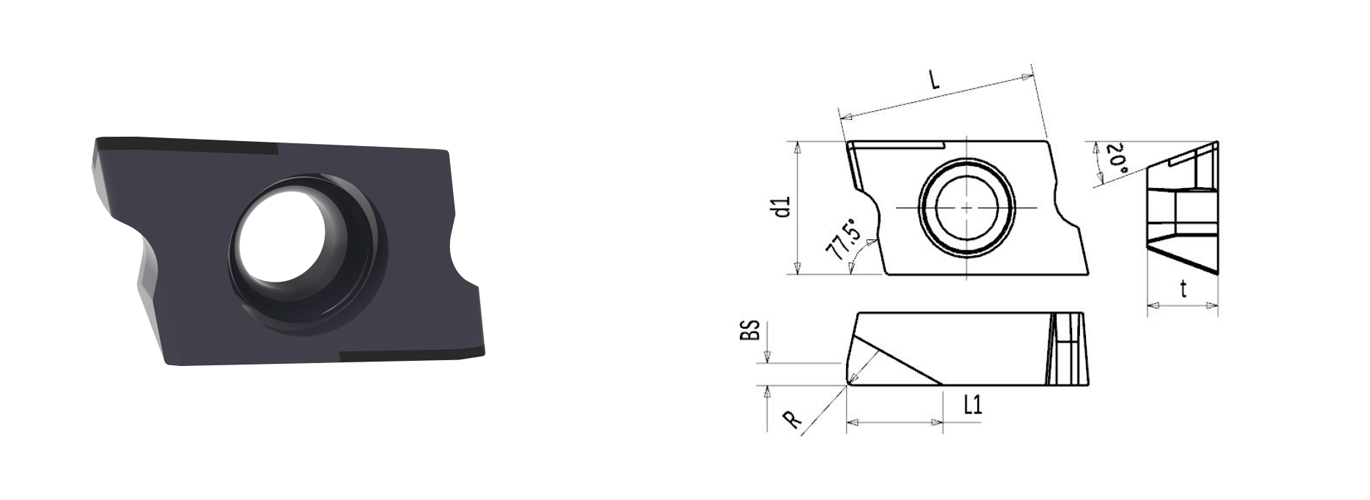

MODEL

EDGE LENGTH

WIPER

DIMENSION

EDGE

MATERIAL

AEGT 1504XPCD

YES

14.0

9.2

5.0

0.4

6.8

1.54

PCD

CUTTER DIA	COVER BOLT	RING SCREW	WRENCH
CUTTER DIA
40-63	CLP10	一	一
80	CLP12	CLJ0510	CBL25
100	CLP16	CLJ0610	CBL30
125	CLP20	CLJ0810	CBL40
160	CLP24	CLJ0810	CBL40
200	CLP28	CLJ0810	CBL40
250	CLP32	CLJ0810	CBL40

ACCESSORY

MODEL	DIA	INSERT SCR.	Mir-adj. sc.	WRENCH	balance s.	WRENCH	steel wire

CFM90AE	40-63	CSG4013-P	CSX3011-P	asisw-p	CLC0600610	CBL30	一
	80-250						CLGC060
