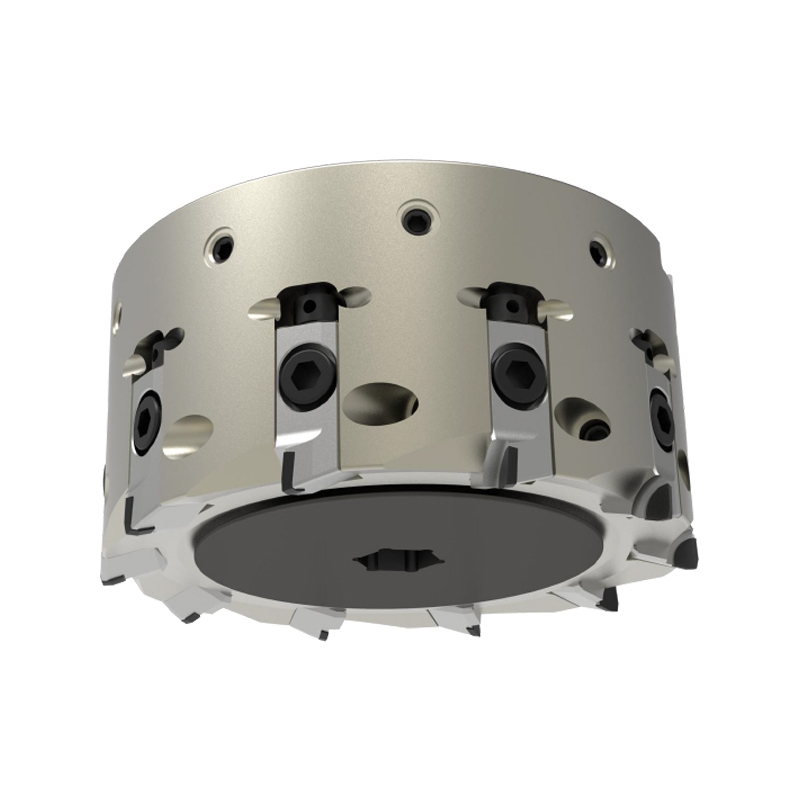

ALUMINUM MILL CUTTER：CFM90PCD-L Milling Cutter

ALUMINUM MILL CUTTER

Contact now

FEATURE
INQUIRY

FEAURES

Cutter DIAφ63～φ400mm
Aluminum cutter head, dynamic balance treatment, high-speed machining applications Equipped with a fine-tuning mechanism, easy to adjust, suitable for finishing

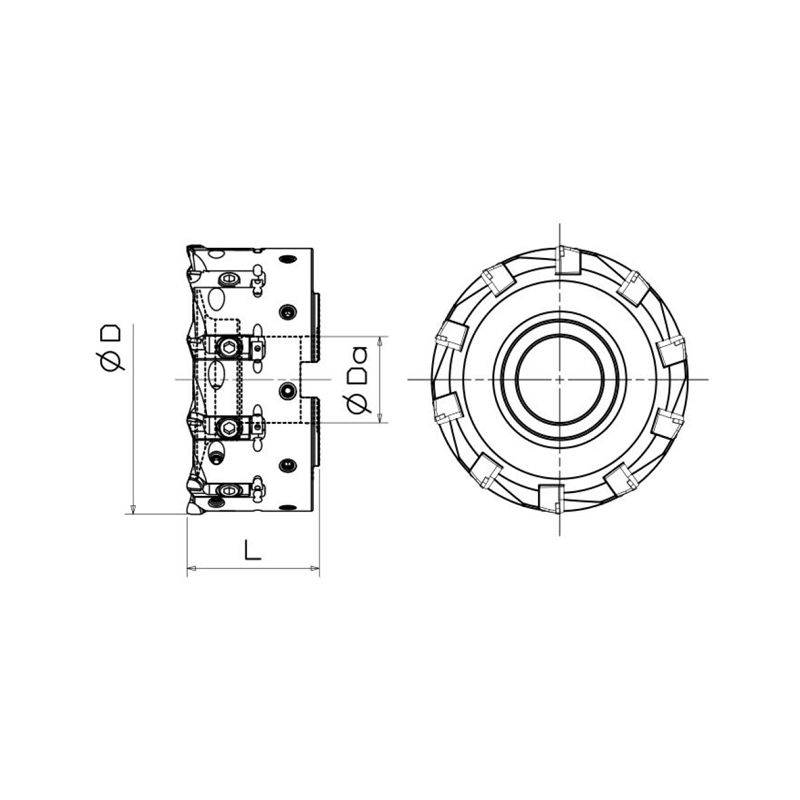

MODEL		DIMENSION				kg	COMPATIBLE CLAMP
MODEL		D	Da	L	Traax	kg	COMPATIBLE CLAMP
CFM90PCD-463B22R-L	4	63	22	48	4	0. 80	DJ-PCD-AL
CFM90PCD-680B27R-L	6	80	27	50	4	0. 75
CFM90PCD-8100B32R-L	8	100	32	50	4	1.20
CFM90PCD-10125B40R-L	10	125	40	63	4	2.20
CFM90PCD-12160C40R-L	12	160	40	63	4	2.15
CFM90PCD-14180C40R-L	14	180	40	63	4	2.60
CFM90PCD-16200C60R-L	16	200	60	63	4	4. 40
CFM90PCD-18250C60R-L	18	250	60	63	4	7.00
CFM90PCD-20315C60R-L	20	315	60	80	4	14.10
CFM90PCD-22400C60R-L	22	400	60	80	4	22.10

ACCESSORY

MODEL	CLAMP	CLAMP SCREW	WRENCH	CLAMP Dynamic balance adjustment screw
MODEL				CLAMP Dynamic balance adjustment screw
CFM90PCD-L	DJ-PCD-AL	CLA0601210	CBL50/CBL30	CLC0600610
