Single-piece three-sided milling cutter HOLDER

CN THREE SIDED MILL CUTTER:CSMCN-H Milling Cutter

Single-piece three-sided milling cutter HOLDER
  • FEATURE
  • INQUIRY
FEAURES

  • Cutter DIAφ63~φ250mm
  • Single-piece three-sided milling cutter head The strength of the vertical blade is good, which makes the tool safer


MODEL



DIMENSION MM

CONNECTOR

INSERTS

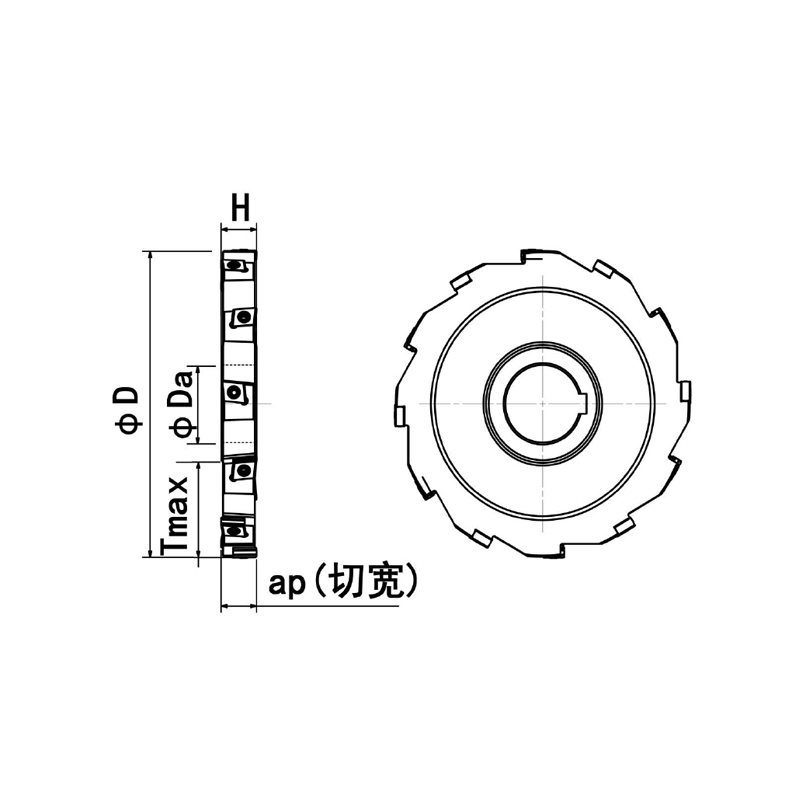

ap

D

Da

H

Traax

CSMCN-663W15H22N-10

6

15

63

22

15

15

HUB

CNHX 1005

CSMCN-880W15H22N-10

8

15

80

22

15

24

HUB

CSMCN-10100W15H27N-10

10

15

100

27

15

30

HUB

CSMCN-12125W15H32N-10

12

15

125

32

15

40

HUB

CSMCN-14160W15H40N-10

14

15

160

40

15

52

HUB

CSMCN-16200W15H50N-10

16

15

200

50

15

65

HUB

CSMCN-18250W15H60N-10

18

15

250

60

15

80

HUB

CSMCN-663W20H22N-13

6

20

63

22

20

15

HUB

CNHX 1311

CSMCN-880W20H22N-13

8

20

80

22

20

24

HUB

CSMCN-10100W20H27N-13

10

20

100

27

20

30

HUB

CSMCN-12125W20H32N-13

12

20

125

32

20

40

HUB

CSMCN-14160W20H40N-13

14

20

160

40

20

52

HUB

CSMCN-16200W20H50N-13

16

20

200

50

20

65

HUB

CSMCN-18250W20H60N-13

18

20

250

60

20

80

HUB

CSMCN-663W25H22N-16

6

25

63

22

25

15

HUB

CNHX 1606

CSMCN-880W25H22N-16

8

25

80

22

25

24

HUB

CSMCN-10100W25H27N-16

10

25

100

27

25

30

HUB

CSMCN-12125W25H32N-16

12

25

125

32

25

40

HUB

CSMCN-14160W25H40N-16

14

25

160

40

25

52

HUB

CSMCN-16200W25H50N-16

16

25

200

50

25

65

HUB

CSMCN-18250W25H60N-16

18

25

250

60

25

80

HUB


INSERTS

SHAPE

INTRODUCTION

INSERT PAGE





• Vertical blade

• Central blade, no distinction LEFT/RIGHT

B150

INSERT MODEL

EDGE

LONG

DIMENSION MM

FEED

GRADE

1

dl

t

r

(nm/TEETH)

CT5320

CT5420

CT7320

CT7420

CT101

CNHX 100504-ML

10

0.4

0. 1 〜0.3



CNHX 100508-ML

10

0.8

0. 1 〜0.3



CNHX 100512-ML

10

1.2

0. 1 〜0.3



CNHX 100516-ML

10

1.6

0. 1 〜0.3



CNHX 121116

12

2.4

0. 1 〜0.3



CNHX 121120

12

3.0

0.1 〜0.3



CNHX 131104-ML

13

12.7

11

5.4

0.4

0.1 〜0. 35



CNHX 131108-ML

13

12.7

11

5.4

0.8

0.1 〜0. 35



CNHX 131112-ML

13

12.7

11

5.4

1.2

0.1 〜0. 35



CNHX 131116-ML

13

12.7

11

5.4

1.6

0.1 〜0. 35



CNHX 131124-ML

13

12.7

11

5.4

2.4

0.1 〜0. 35



CNHX 131130-ML

13

12.7

11

5.4

3.0

0.1 〜0. 35



CNHX 160604-ML

16

16.0

12

6.4

0.4

0.1 〜0.4



CNHX 160608-ML

16

16.0

12

6.4

0.8

0.1 〜0.4



CNHX 160612-ML

16

16.0

12

6.4

1.2

0.1 〜0.4



CNHX 160616-ML

16

16.0

12

6.4

1.6

0.1 〜0.4



CNHX 160624-ML

16

16.0

12

6.4

2.4

0.1 〜0.4



CNHX 160630-ML

16

16.0

12

6.4

3.0

0.1 〜0.4



ACCESSORY

MODEL

SCREW

WRENCH





CSMCN-10

CSG4013-P

CTS15W-P

CSMCN-13

CSG4013-P

CTS15W-P

CSMCN-16

CSG5016

CTS20W
