MILLING CUTTER CLAMP SYSTEM

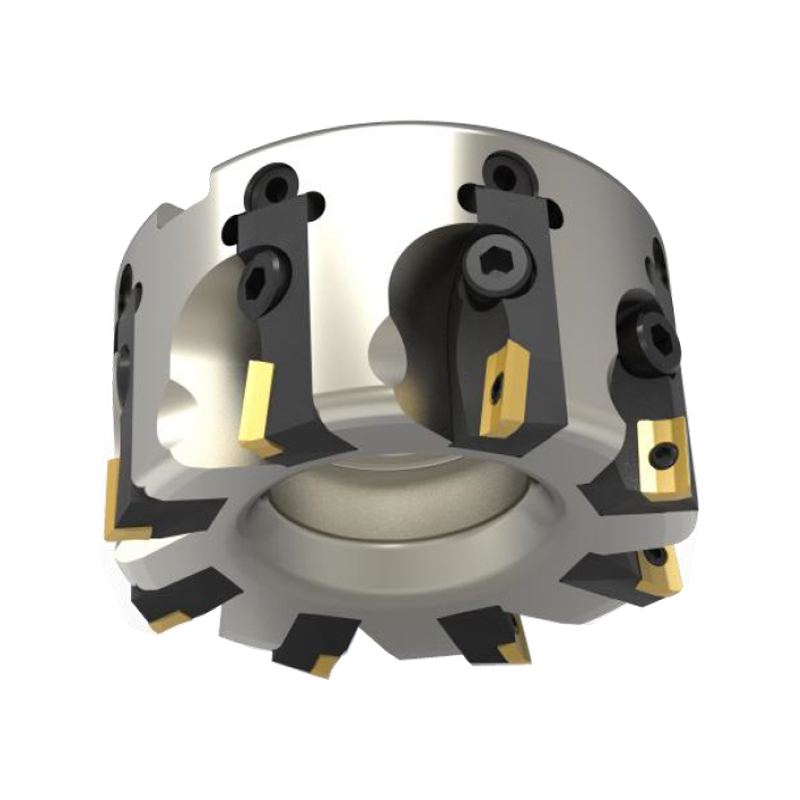

CZH Milling Cutter

MILLING CUTTER CLAMP SYSTEM
  • FEATURE
  • INQUIRY

FEAURES

  • Cutter DIAφ125~φ500mm
  • Changable tool holder with various main declination angles and various shapes of blades can be used.
  • Equipped with a microadjust unit, easy to adjust, suitable for fine finishing.

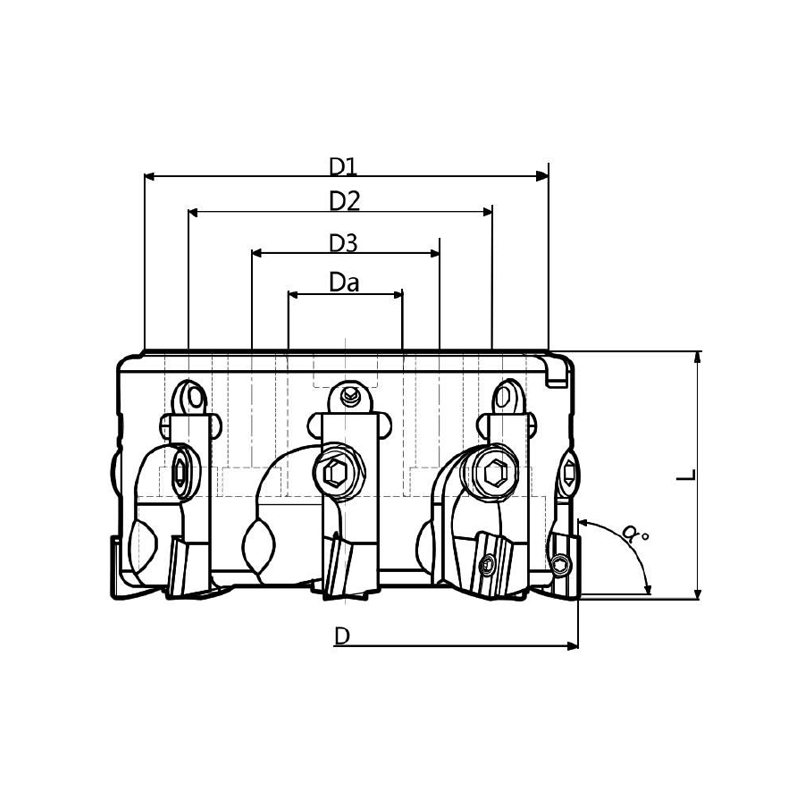

MODEL



DIMENSION

CONNE

CTOR

kg

CLAMP MODEL

D

Da

D3

D2

Dl

L

CZH-6125B40R

6

125

40





108

68

B

3. 83

CZH-CA

CZH-8125B40R

8

125

40





108

68

B

3. 54

CZH-8160C40R

8

160

40

66.7



137

63

C

5. 78

CZH-12160C40R

12

160

40

66.7



137

63

C

5. 20

CZH-10200C60R

10

200

60

101.6



178

63

C

8. 80

CZH-14200C60R

14

200

60

101.6



178

80

C

12. 57

CZH-12250C60R

12

250

60

101.6



228

63

C

14. 78

CZH-18250C60R

18

250

60

101.6



228

63

C

13. 93

CZH-16315D60R

16

315

60

101.6

177.8

293

80

D

30. 74

CZH-22315D60R

22

315

60

101.6

177.8

293

80

D

25. 42

CZH-26400D60R

26

400

60

101.6

177.8

300

80

D



CZH-40500D60R

40

500

60

101.6

177.8

300

80

D




ACCESSORY

MODEL

CLAMP

WEDGE

VEDGE SCREW

MOUNT SCREW

WRENCH

WRENCH













CZH

CZH-CA

CYC12Y

CLD0602010

CLA08025125

CBL30

CTS15W
