THREE SIDED EDGE MILL CUTTER: FIXED SINGLE INSERT TYPE

N VERTICAL 3 SIDED INSERT BLADE CUTTER SERIES:CS Milling Cutter

THREE SIDED EDGE MILL CUTTER: FIXED SINGLE INSERT TYPE
  • FEATURE
  • INQUIRY
FEAURES

  • Cutter DIAφ63~φ250mm
  • Single-piece three-sided milling cutter head The strength of the vertical blade is good, which makes the tool safer
  • Suitable for all kinds of slot milling

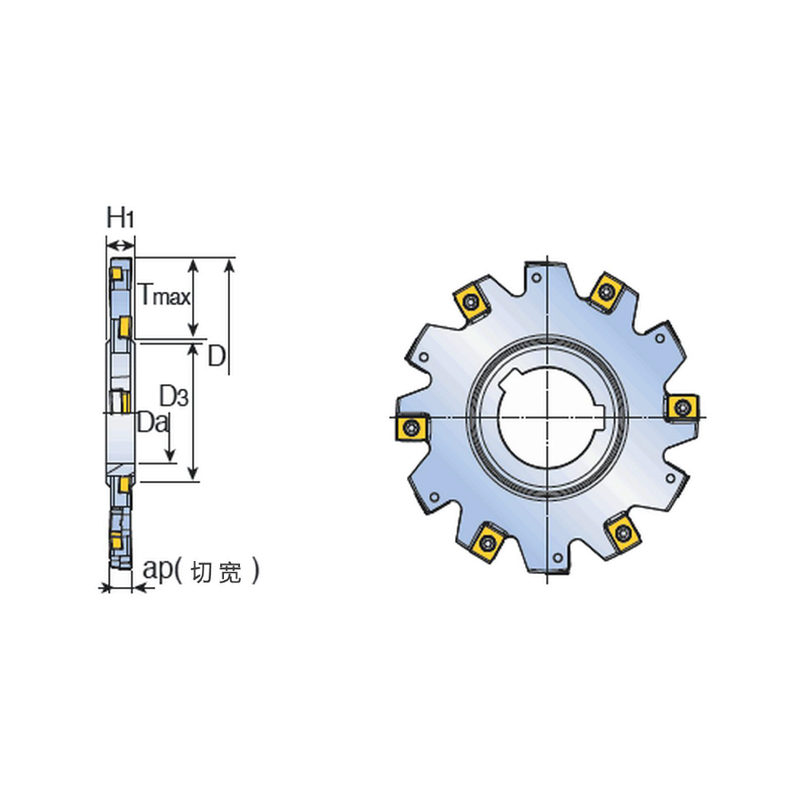

MODEL



ap

(mm)

DIMENSION MM

kg

INSERTS

D

Da

D3

HI

Tmax

CSMZN-863W04H22-023

4+4

4

63

22

34

8

12.0

0. 1

ZNHT 023

CSMZN-1080W04H22-023

5+5

4

80

22

34

8

21.0

0. 1

CSMZN-12100W04H27-023

6+6

4

100

27

41

12

27.0

0.2

CSMZN-14125W04H40-023

7+7

4

125

40

55

12

32.0

0.4

CSMZN-863W05H22-028

4+4

5

63

22

34

8

13.0

0. 1

ZNHT 028

CSMZN-1080W05H22-028

5+5

5

80

22

34

8

21.0

0.2

CSMZN-12100W05H27-028

6+6

5

100

27

41

12

27.0

0.3

CSMZN-14125W05H40-028

7+7

5

125

40

55

12

33.0

0.4

CSMZN-18160W05H40-028

9+9

5

160

40

55

12

50.0

0.7

CSMZN-863W06H22-033

4+4

6

63

22

34

8

13.0

0. 1

ZNHT 033

CSMZN-1080W06H22-033

5+5

6

80

22

34

8

21.5

0.2

CSMZN-12100W06H27-033

6+6

6

100

27

41

12

27.0

0.3

CSMZN-14125W06H40-033

7+7

6

125

40

55

12

33.0

0.5

CSMZN-18160W06H40-033

9+9

6

160

40

55

12

50.0

0.8

CSMZN-20200W06H50-033

10+10

6

200

50

69

12

63.0

1.2

CSMZN-880W07H22-038

4+4

7

80

22

34

12

20.0

0.2

ZNHT 038

CSMZN-10100W07H27-038

5+5

7

100

27

41

12

26.5

0.3

CSMZN-12125W07H40-038

6+6

7

125

40

55

12

32.0

0.5

CSMZN-16160W07H40-038

8+8

7

160

40

55

12

49.5

0.8

CSMZN-18200W07H50-038

9+9

7

200

50

69

12

62.5

1.3

CSMZN-24250W07H50-038

12+12

7

250

50

69

12

87.5

2. 1

CSMZN-880W08H22-043

4+4

8

80

22

34

12

20.5

0.2

ZNHT 043

CSMZN-10100W08H27-043

5+5

8

100

27

41

12

27.0

0.3

CSMZN-12125W08H40-043

6+6

8

125

40

55

12

32.5

0.9

ZNHT 043

CSMZN-16160W08H40-043

8+8

8

160

40

55

12

50.0

0.9

CSMZN-18200W08H50-043

9+9

8

200

50

69

12

63.0

1.4

CSMZN-24250W0册50-043

12+12

8

250

50

69

12

88.0

2.3

CSMZN-10100W09H27-048

5+5

9

100

27

41

12

27.5

0.4

ZNHT 048

CSMZN-12125W09H40-048

6+6

9

125

40

55

12

33.0

0.6

CSMZN-16160W09H40-048

8+8

9

160

40

55

12

50.5

1.0

CSMZN-18200W09H50-048

9+9

9

200

50

69

12

63.5

1.6

CSMZN-24250W09H50-048

12+12

9

250

50

69

12

88.5

2.6

CSMZN-10100W10H27-053

5+5

10

100

27

41

12

28.0

0.4

ZNHT 053

CSMZN-12125W10H40-053

6+6

10

125

40

55

12

33.5

0.6

CSMZN-16160W10H40-053

8+8

10

160

40

55

12

51.0

1. 1

CSMZN-18200W10H50-053

9+9

10

200

50

69

12

64.0

1.8

CSMZN-24250W10H50-053

12+12

10

250

50

69

12

89.0

2.9

CSMZN-8100W11H27-058

4+4

11

100

27

41

16

28.0

0.4

ZNHT 058

CSMZN-10125W11H40-058

5+5

11

125

40

55

16

33.5

0.6

CSMZN-14160W11H40-058

7+7

11

160

40

55

16

51.0

1. 1

CSMZN-16200W11H50-058

8+8

11

200

50

69

16

64.0

1.8

CSMZN-22250W11H50-058

11+11

11

250

50

69

16

89.0

2.9

CSMZN-8100W12H27-063

4+4

12

100

27

41

16

28.0

0.4

ZNHT 063

CSMZN-10125W12H40-063

5+5

12

125

40

55

16

33.5

0.6

CSMZN-14160W12H40-063

7+7

12

160

40

55

16

51.0

1. 1

CSMZN-16200W12H50-063

8+8

12

200

50

69

16

64.0

1.8

CSMZN-22250W12H50-063

11+11

12

250

50

69

16

89.0

2.9

CSMZN-8100W13H27-068

4+4

13

100

27

41

16

28.0

0.4

ZNHT 068

CSMZN-10125W13H40-068

5+5

13

125

40

55

16

33.5

0.6

CSMZN-14160W13H40-068

7+7

13

160

40

55

16

51.0

1. 1

CSMZN-16200W13H50-068

8+8

13

200

50

69

16

64.0

1.8

CSMZN-22250W13H50-068

11+11

13

250

50

69

16

89.0

2.9

CSMZN-8100W14H27-073

4+4

14

100

27

41

16

28.0

0.4

ZNHT 073

CSMZN-10125W14H40-073

5+5

14

125

40

55

16

33.5

0.6

CSMZN-14160W14H40-073

7+7

14

160

40

55

16

51.0

1. 1

CSMZN-16200W14H50-073

8+8

14

200

50

69

16

64.0

1.8

CSMZN-22250W14H50-073

11+11

14

250

50

69

16

89.0

2.9




ACCESSORY

MODEL

SCREW

WRENCH





CSMZN-023

CSX2531

CTS08W

CSMZN-028

CSX2542

CTS08W

CSMZN-033

CSX2553

CTS08W

CSMZN-038

CSX4051

CTS15W

CSMZN-043

CSX4061

CTS15W

CSMZN-048

CSX4070

CTS15W

CSMZN-053

CSX4080

CTS15W

CSMZN-058/063

CSY5012

CTS20W

CSMZN-068/073

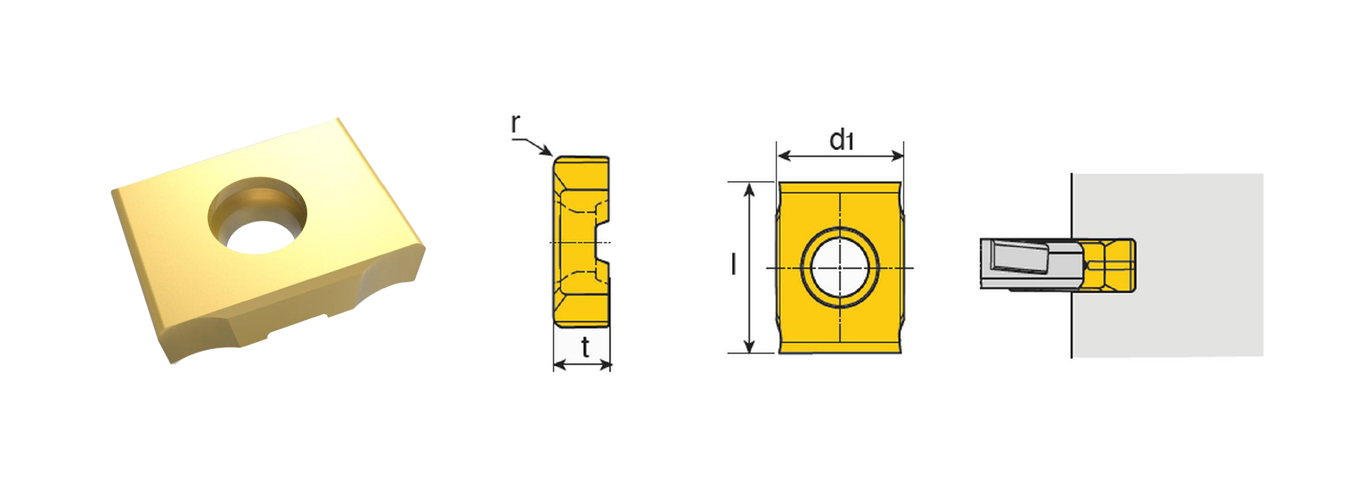

MODEL

EDGE LONG

DIMENSION MM

进给

GRADE

1

dl

t

r

(mm/齿)

CT5320

ZNHT 023-04-ML

023

10

7.5

2.3

0.4

0. 05〜0. 08

ZNHT 028-04-ML

028

10

7.5

2.8

0.4

0. 05〜0. 08

ZNHT 033-04-ML

033

10

7.5

3.3

0.4

0. 05〜0. 12

ZNHT 038-04-ML

038

13

10

3.8

0.4

0.05 〜0. 12

ZNHT 043-04-ML

043

13

10

4.3

0.4

0.05 〜0. 12

ZNHT 043-08-ML

043

13

10

4.3

0.8

0.05 〜0. 12

ZNHT 048-04-ML

048

13

10

4.8

0.4

0.05 〜0. 12

ZNHT 048-08-ML

048

13

10

4.8

0.8

0.05 〜0. 12

ZNHT 053-04-ML

053

13

10

5.3

0.4

0.05 〜0. 12

ZNHT 053-08-ML

053

13

10

5.3

0.8

0.05 〜0. 12

ZNHT 058-04-ML

058

15

12

5.8

0.4

0.05 〜0. 12

ZNHT 058-08-ML

058

15

12

5.8

0.8

0.05 〜0. 12

ZNHT 063-04-ML

063

15

12

6.3

0.4

0.05 〜0. 12

ZNHT 063-08-ML

063

15

12

6.3

0.8

0.05 〜0. 12

ZNHT 068-08-ML

068

15

12

6.8

0.8

0.05 〜0. 12

ZNHT 068-12-ML

068

15

12

6.8

1.2

0.05 〜0. 12

ZNHT 073-08-ML

073

15

12

7.3

0.8

0.05 〜0. 12

ZNHT 073-12-ML

073

15

12

7.3

1.2

0.05 〜0. 12
