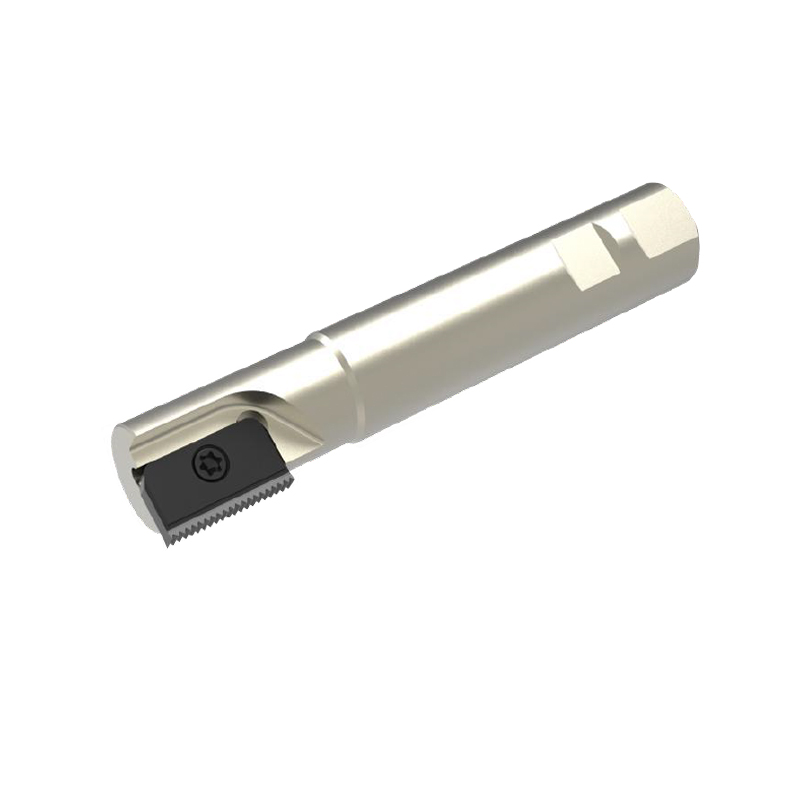

Thread milling series：SR00 Milling Cutter

Thread Milling Shank (Single Insert)

Contact now

FEATURE
INQUIRY

FEAURES

Single teeth
insert turing dia. φ9.5～φ48mm

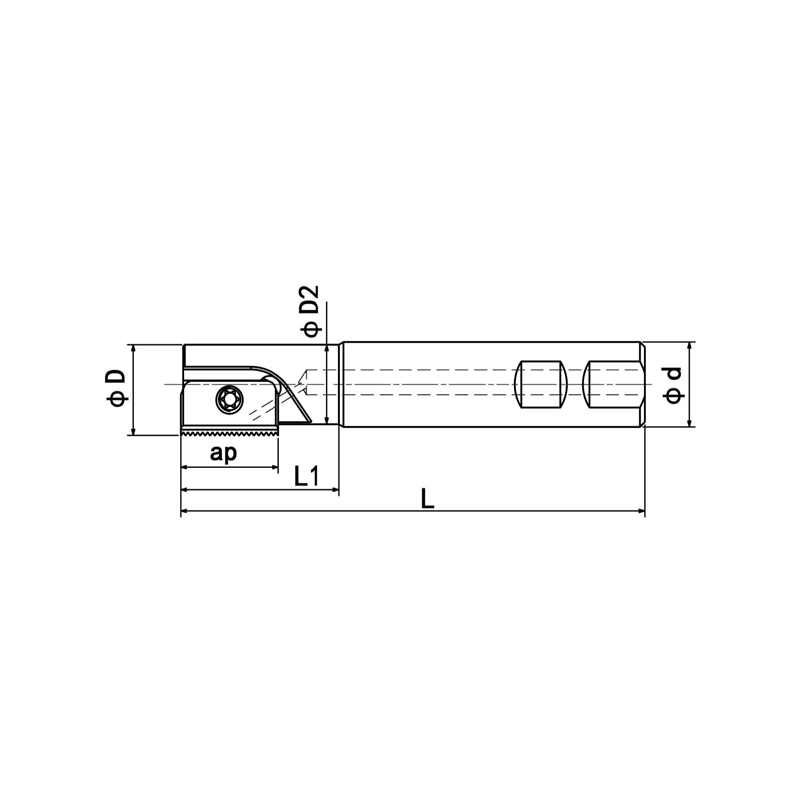

MODEL		DIMENSION m					INSERT ap (mm)
MODEL		D	D2	LI	L	d	INSERT ap (mm)
SR0009H12	1	9.5	7.5	14	85	20	TMT12
SR0010H12	1	9.9	7.6	16	85	20	TMT12
SR0012F14	1	12.0	8.9	20	75	20	TMT14
SR0014H14	1	14.5	11.2	25	85	20	TMT14
SR0017H14	1	17.0	13.4	30	85	20	TMT14
SR0018H21	1	18.0	14.4	30	85	20	TMT21
SR0021H21	1	21.0	16.5	40	94	20	TMT21
SR0029J30	1	29.0	22.4	50	110	25	TMT30
SR0048M40	1	48.0	35.0	78	153	40	TMT40

◎STANDARD CUTTER WITH INTERNAL COOLANT

◎ONLY COMPATIBLE WITH INSERTS：12-18NPT, 12-18PTF, 12-19BSPT

◎SR0018H21 NOT COMPATIBLE WITH： 2113.5ISO, 2117UN, 2118UN 21-11BSPT, 21-11.5NPT, 21-11.5NPTF

◎INSERTS TO BE ORDERED SEPARATELY，COMPATIBLE WITH TAEGUTEC INSERTS

ACCESSORY

MODEL	SCREW	WRENCH
MODEL
SR 12	S12	K12
SR 14	S14	K14
SR 21	S 21	K21
SR 30	S 30	K30
SR 40	S 40	K40
