Three-sided milling cutter head: fixed flange type

ZN VERTICAL 3 SIDED INSERT BLADE CUTTER SERIES:CSMZN…R Milling Cutter

Three-sided milling cutter head: fixed flange type
  • FEATURE
  • INQUIRY

FEAURES

  • Cutter DIAφ80~φ160mm
  • Flange type three-sided milling cutter The strength of the vertical blade is good, which makes the tool safer
  • Suitable for all kinds of slot milling

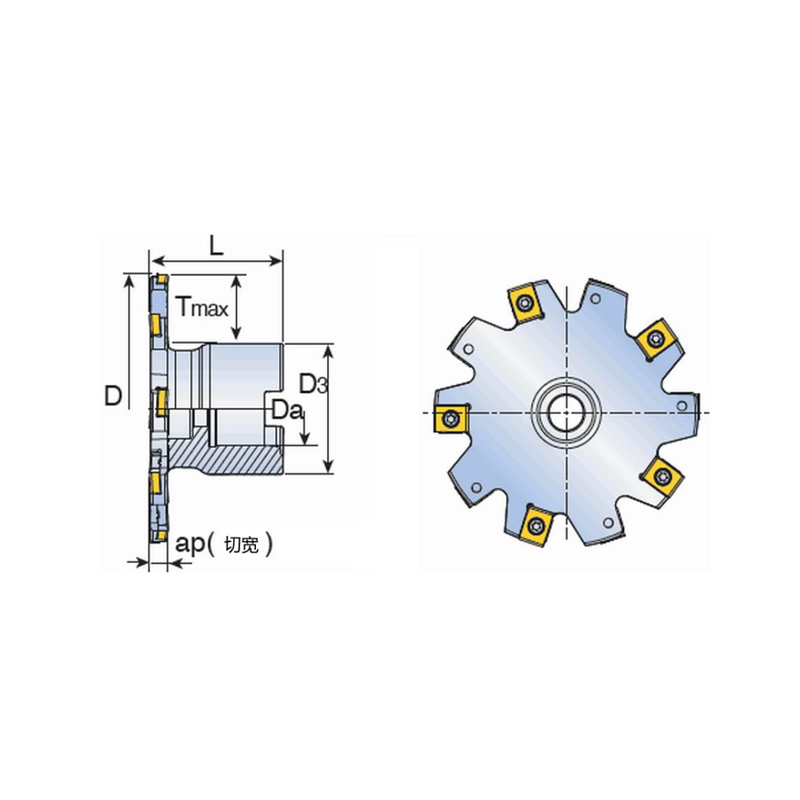

MODEL



ap

(mm)

DIMENSION MM

CONNE

CTOR

kg

INSERTS

D

Da

D3

L

Tmax

CSMZN-880W07A22R-038

4+4

7

80

22

40

50

20.0

A

0.5

ZNHT 038

CSMZN-10100W07A27R-038

5+5

7

100

27

48

50

25.5

A

0.7

CSMZN-12125W07B40R-038

6+6

7

125

40

70

50

24.5

B

1.2

CSMZN-16160W07B40R-038

8+8

7

160

40

70

50

42.0

B

1.5

CSMZN-880W08A22R-043

4+4

8

80

22

40

50

20.0

A

0.5

ZNHT 043

CSMZN-10100W08A27R-043

5+5

8

100

27

48

50

25.5

A

0.8

CSMZN-12125W08B40R-043

6+6

8

125

40

70

50

24.5

B

1.2

CSMZN-16160W08B40R-043

8+8

8

160

40

70

50

42.0

B

1.6

CSMZN-10100W09A27R-048

5+5

9

100

27

48

50

26.0

A

0.8

ZNHT 048

CSMZN-12125W09B40R-048

6+6

9

125

40

70

50

24.5

B

1.3

CSMZN-16160W09B40R-048

8+8

9

160

40

70

50

42.0

B

1.7

CSMZN-10100W10A27R-053

5+5

10

100

27

48

50

26.0

A

0.8

ZNHT 053

CSMZN-12125W10B40R-053

6+6

10

125

40

70

50

24.5

B

1.4

CSMZN-16160W10B40R-053

8+8

10

160

40

70

50

42.0

B

1.9

CSMZN-8100W11A27R-058

4+4

11

100

27

48

50

26.0

A

0.8

ZNHT 058

CSMZN-10125W11B40R-058

5+5

11

125

40

70

50

24.5

B

1.4

CSMZN-14160W11B40R-058

7+7

11

160

40

70

50

42.0

B

1.9

CSMZN-8100W12A27R-063

4+4

12

100

27

48

50

26.0

A

0.8

ZNHT 063

CSMZN-10125W12B40R-063

5+5

12

125

40

70

50

24.5

B

1.4

CSMZN-14160W12B40R-063

7+7

12

160

40

70

50

42.0

B

1.9

CSMZN-8100W13A27R-068

4+4

13

100

27

48

50

26.0

A

0.8

ZNHT 068

CSMZN-10125W13B40R-068

5+5

13

125

40

70

50

24.5

B

1.4

CSMZN-14160W13B40R-068

7+7

13

160

40

70

50

42.0

B

1.9

CSMZN-8100W14A27R-073

4+4

14

100

27

48

50

26.0

A

0.8

ZNHT 073

CSMZN-10125W14B40R-073

5+5

14

125

40

70

50

24.5

B

1.4

CSMZN-14160W14B40R-073

7+7

14

160

40

70

50

42.0

B

1.9


◎STANDARD CUTTER WITHOUT INTERNAL COOLANT
◎INSERTS TO BE ORDERED SEPARATELY


ACCESSORY

MODEL

SCREW

WRENCH





CSMZN-038

CSX4051

CTS15W

CSMZN-043

CSX4061

CTS15W

CSMZN-048

CSX4070

CTS15W

CSMZN-053

CSX4080

CTS15W

CSMZN-058

CSY5012

CTS20W

CSMZN-063

CSY5012

CTS20W

CSMZN-068

CSY5012

CTS20W

CSMZN-073

CSY5012

CTS20W
