4CGF Milling Inserts

4CGF**27

Contact now

FEATURE
INQUIRY

INSERTS		SHAPE				INTRODUCTION		SUITABLE FOR

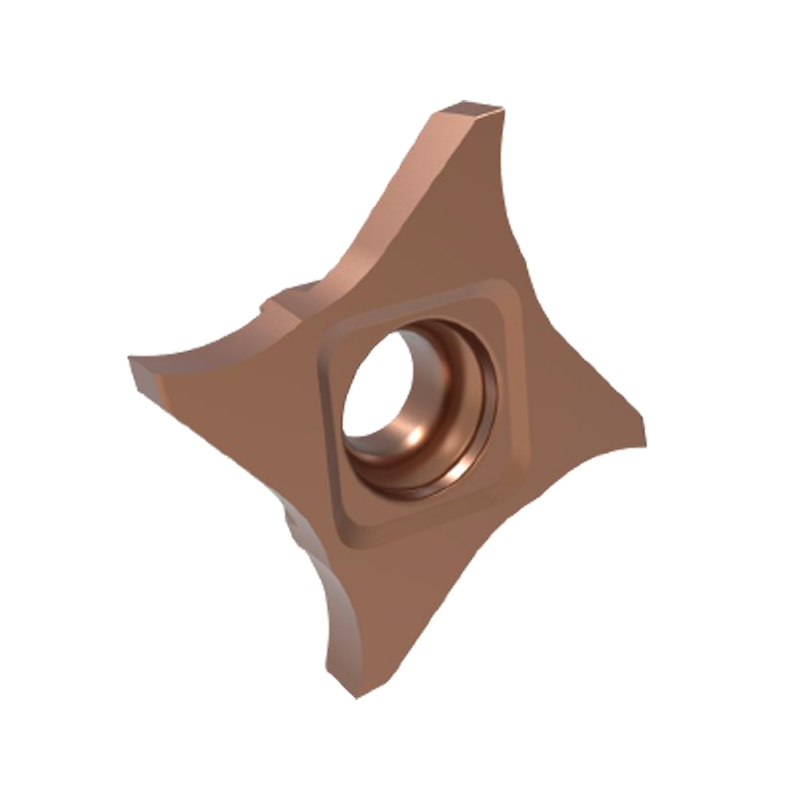

						• Vertical nount blade • Shallow grooved inserts • There are left and right hand blades, the picture shows the right hand blade Can be used as milling cutter and turning tool design		Milling shank: none Turning tool holder: E16

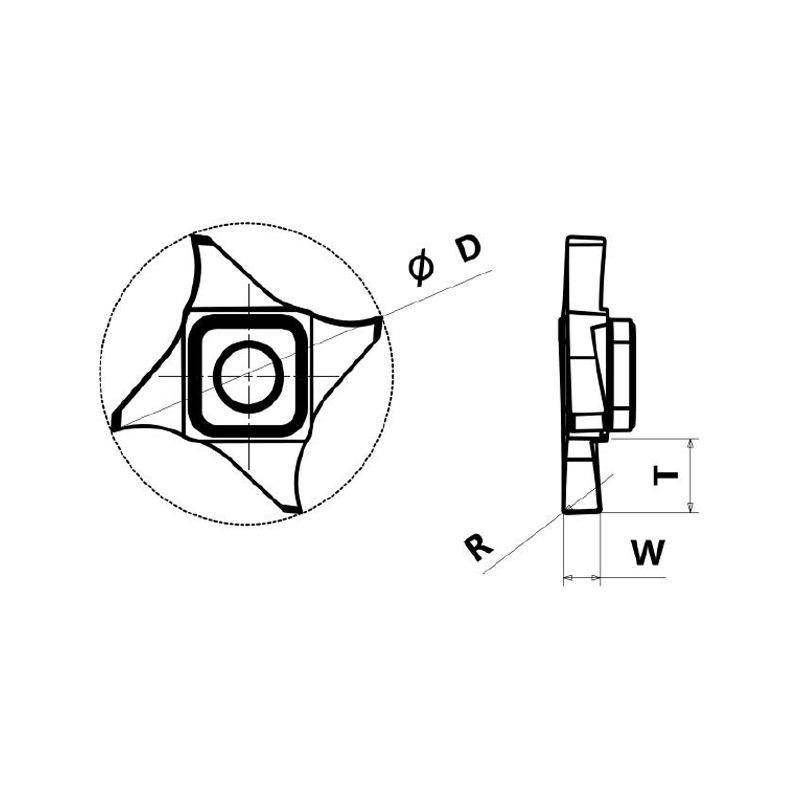

INSERT MODEL		DIMENSION (m)					LEFT/RIGHT	GRADE
INSERT MODEL		0D	1	T	R		LEFT/RIGHT	CT5520
4CC	F 27L200-R02	27.0	2.0	4.5	0.2		L	•
4CG	F 27L230-R02	27.0	2.3	5.5	0.2			•
4CC	F 27L250-R03	27.0	2.5	5.5	0.3			•
4CG	F 27L270-R03	27.0	2.7	5.5	0.3			•
4CC	F 27L300-R03	27.0	3.0	6.5	0.3			•
4CG	F 27L320-R03	27.0	3.2	6.5	0.3			•
4CC	F 27L350-R03	27.0	3.5	6.5	0.3			•
4CG	F 27R200-R02	27.0	2.0	4.5	0.2		R	•
4CC	F 27R230-R02	27.0	2.3	5.5	0.2			•
4CG	F 27R250-R03	27.0	2.5	5.5	0.3			•
4CC	F 27R270-R03	27.0	2.7	5.5	0.3			•
4CG	F 27R300-R03	27.0	3.0	6.5	0.3			•
4CC	F 27R320-R03	27.0	3.2	6.5	0.3			•
4CG	F 27R350-R03	27.0	3.5	6.5	0.3			•

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional 4CGF Milling Inserts suppliers and Wholesale 4CGF Milling Inserts company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
