AN**12/17 Milling Inserts

Contact now

FEATURE
INQUIRY

INSERTS

SHAPE

INTRODUCTION

SUITABLE FOR

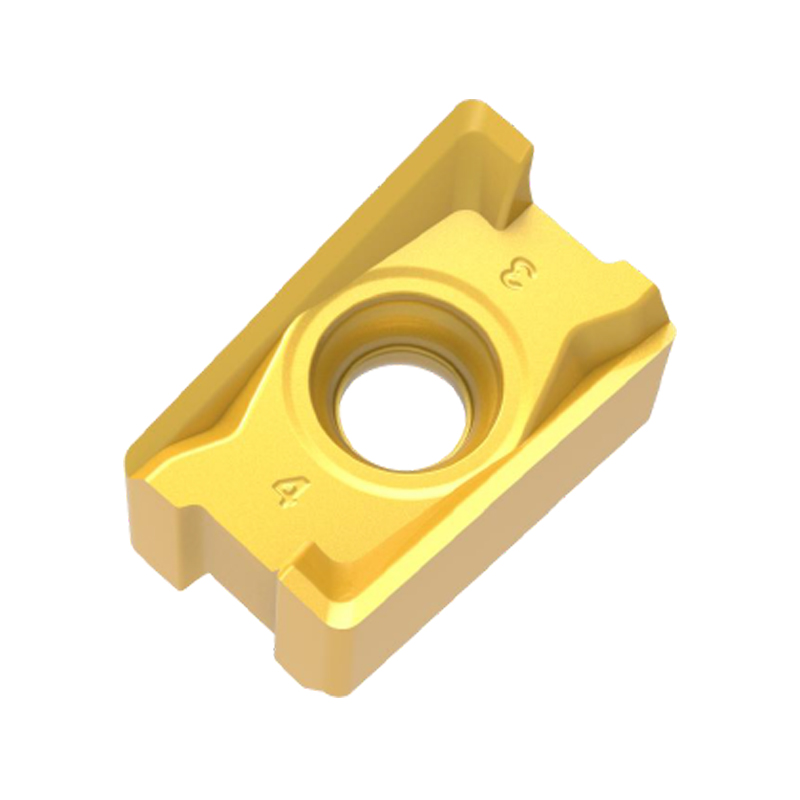

90° double-sided 4- blade precision pressed and ground blade, economical • Large positive rake angle helical cutting edge design, light cutting • Integral trimming at the bottom for good plane processing

Milling Cutter: B63 Threaded head: B90 Milling shank: B91

INSERT MODEL

EDGE

Long

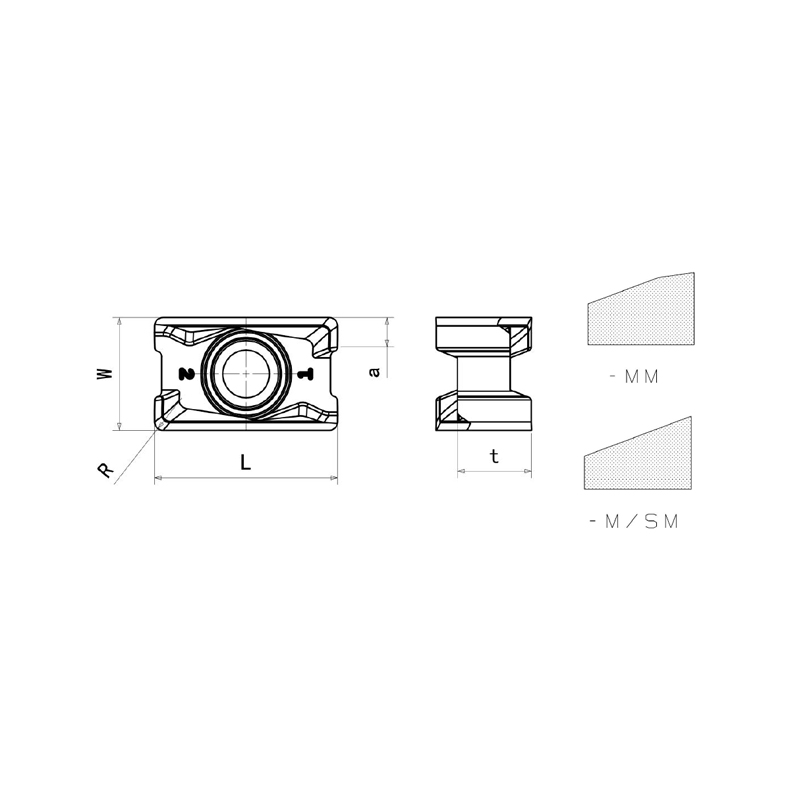

Dimension (mm)

GRADE

CT5320

CT5420

CT7320

CT7420

CT8320

ANKU 120404PFR-M

90。

12. 55

7.0

4.84

1.7

0.4

•

ANHU 120404PFR-M

0.4

ANKU 120408PFR-M

0.8

ANKU 120408PER-_

0.8

ANKU 120412PFR-M

1.2

ANKU 17T608PFR-M

90。

17.3

10.4

7. 03

2.7

0.8

•

ANKU 17T608PER-_

0.8

ANHU 17T608PER-_

0.8

ANHU 17T608PER-M

0.8

ANHU 17T608PER-SM

0.8

ANKU 17T616PFR-M

1.6

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional AN**12/17 Milling Inserts suppliers and Wholesale AN**12/17 Milling Inserts company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
