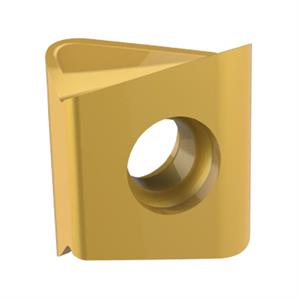

L0**14 Milling Inserts

Contact now

FEATURE
INQUIRY

INSERTS	SHAPE					INTRODUCTION			SUITABLE FOR
						• Vertical blade • Rich arc angles, which can meet the needs of large arc cutting • Sharp blade with excellent cutting performance • Various types of arcs can be ground non-standard			g cutter heac
									g cutter heac

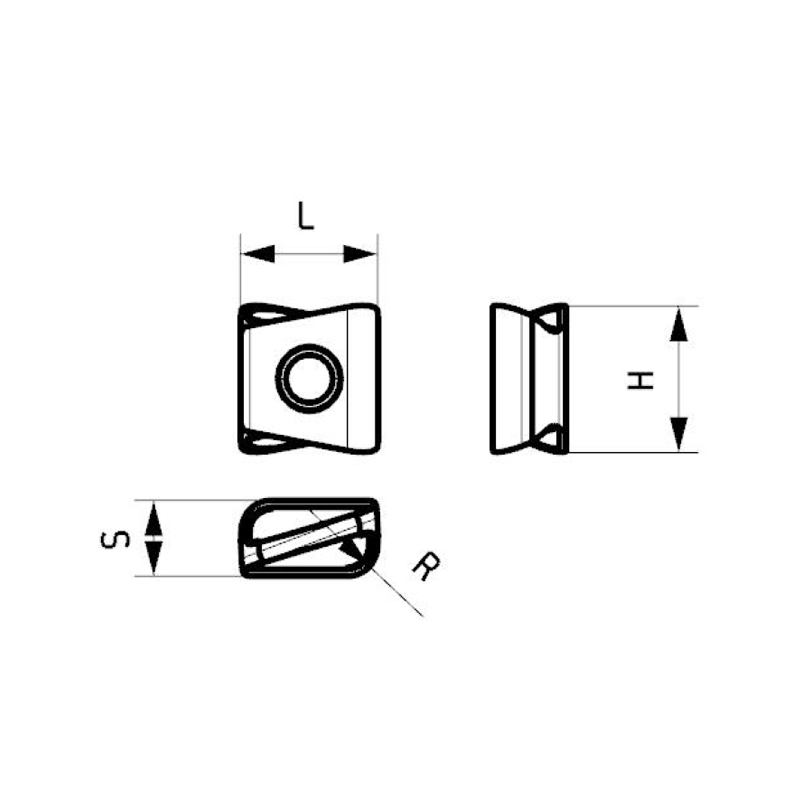

INSERT MODEL	EDGE LENGTH	DIMENSION (mm)				GRADE
INSERT MODEL	EDGE LENGTH	L	H	s	r	CT5420	CT7320	CT8320	CT8420	CT9320
LOHX 140708-ML	14	13. 97	14.48	7.5	0.8	•		•	•
LOHX 140712-ML					1. 1	•		•	•
LOHX 140716-ML					1.6	•		•	•
LOHX 140720-ML					2.0	•		•	•
LOHX 140724-ML					2.4	•		•	•
LOHX 140731-ML					3.1	•		•	•
LOHX 140740-ML					4.0	•		•	•
LOHX 140750-ML					5.0	•		•	•
LOHX 140760-ML					6.0	•		•	•

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional L0**14 Milling Inserts suppliers and Wholesale L0**14 Milling Inserts company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
