LN**09/10/12/16 Milling Inserts

Contact now

FEATURE
INQUIRY

INSERTS	SHAPE						INTRODUCTION			SUITABLE FOR

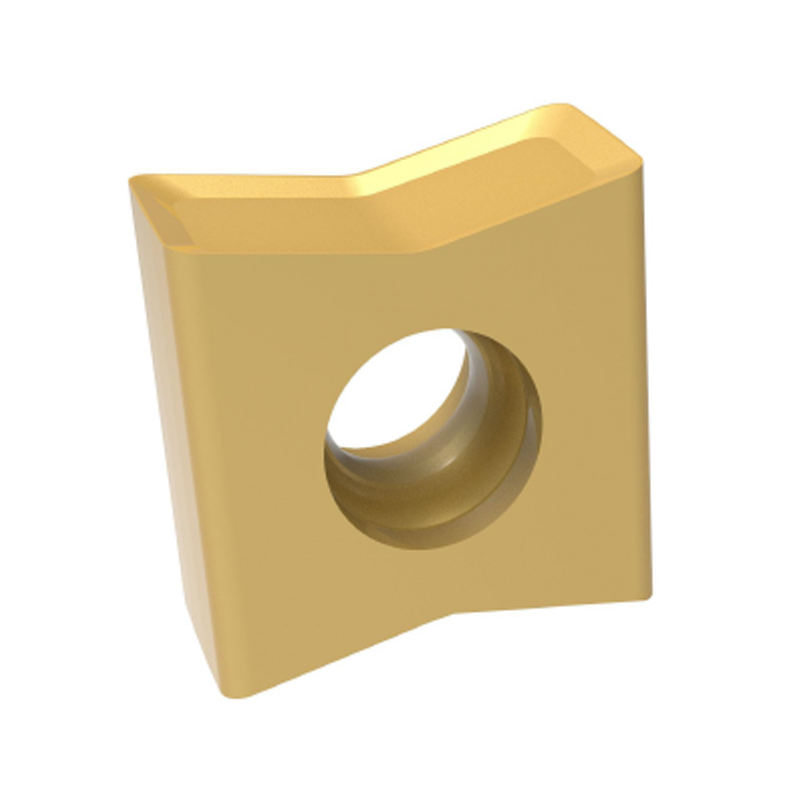

							• Butterfly Blade • Blades commonly used for double-edged cutterheads • If the design is three-sided, the bottom will not be flat • A total of 8 blades on both sides			g cutter head

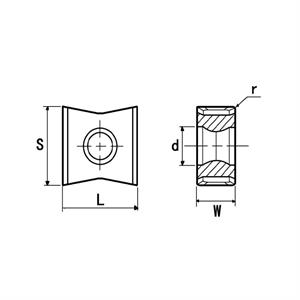

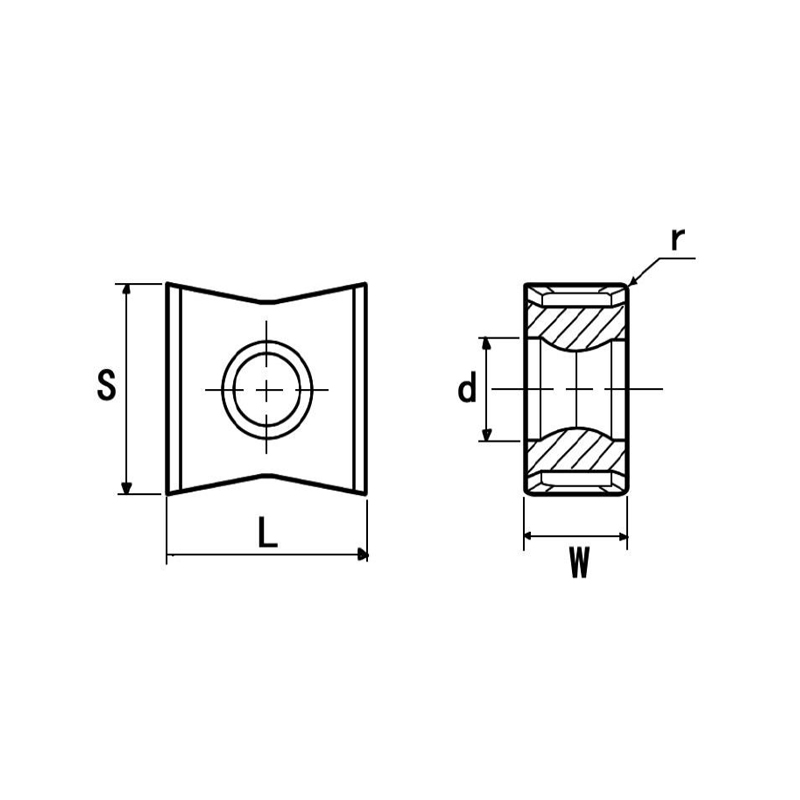

INSERT MODEL	EDGE LENGTH	DIMENSION (mm)
INSERT MODEL	EDGE LENGTH	L	S	w	d	r	CT5320	CT5420	CT7320	CT7420	CT8320
LNKX 100512-ML	10	10.0	9. 53	5.2	一	1.2	•
LNKX 120608N	12	12.7	12.3	6. 35	6	0.8	•	•	•	•
LNKX 120608N-W	12	12.7	12.3	6. 35	6	0.8	•	•	•	•

INSERTS	SHAPE						INTRODUCTION			SUITABLE FOR

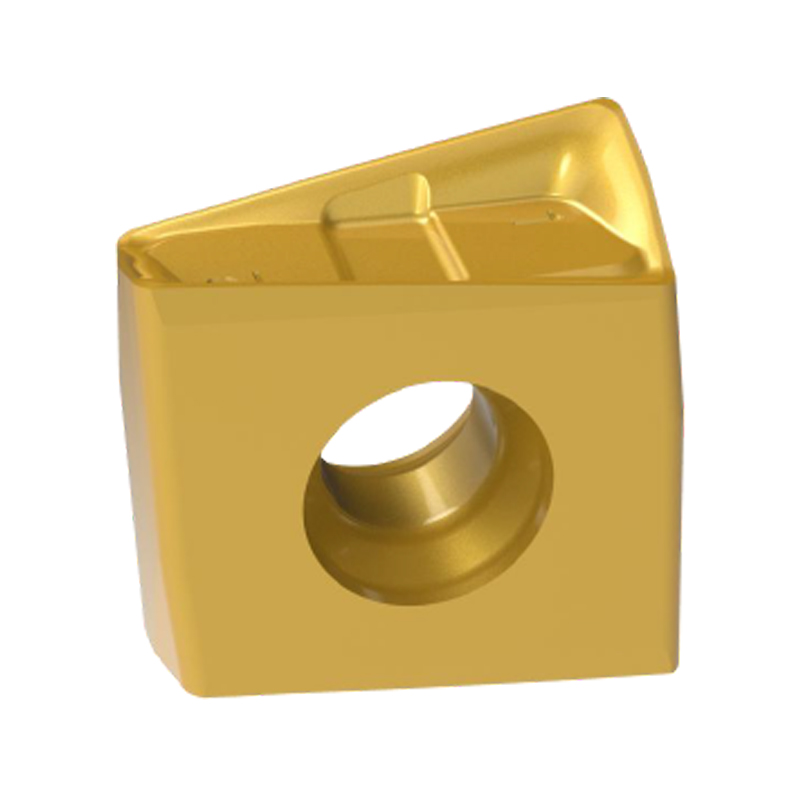

							• Has four right-hand 90° cutting edges • The design conbination of helical cutting edge and large positive rake angle nakes cutting easier and faster			Milling head: B61 Milling shank: B87 Corn milling: B99 Corn milling: B102

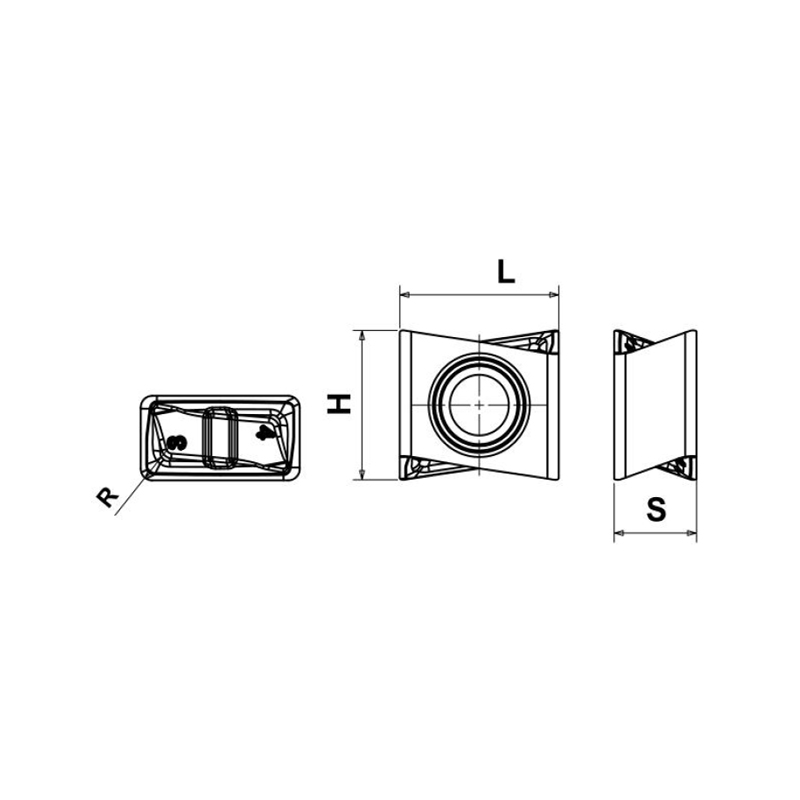

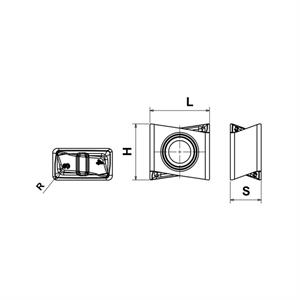

INSERT MODEL	EDGE Long	KR (° )	DIMENSION (mm)					GRADE
INSERT MODEL	EDGE Long	KR (° )	L	H	S	R	APmax	CT5320	CT7320	CT8320	CT101
LNHU 090404-M	09	90	9. 02	8. 55	4. 48	0.4	8.5	•	•	•
LNHU 120608-M	12		12.7%	13.0	6. 75	0.8	11.5	•	•	•
LNHU 120612-M	12		12.7	13.0	6. 75	1.2	11.5	•	•	•
LNHU 120608-AL	12		12.7	13.0	6. 75	0.8	11.5				•
LNHU 160808-M	16		16.4	16.2	8.0	0.8	15.0	•	•	•

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional LN**09/10/12/16 Milling Inserts suppliers and Wholesale LN**09/10/12/16 Milling Inserts company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

•Industry experience: Over 20 years
•Product Category: 10000+
•Number of patents: 41
• Plant area: 3000m²+
• Technician: 30+
• Annual Production Capacity: 90 million (100,000 steel products,
10 million blades)
