SN**12、SX**13 Milling Inserts

  • FEATURE
  • INQUIRY

INSERTS

SHAPE

INTRODUCTION

SUITABLE FOR

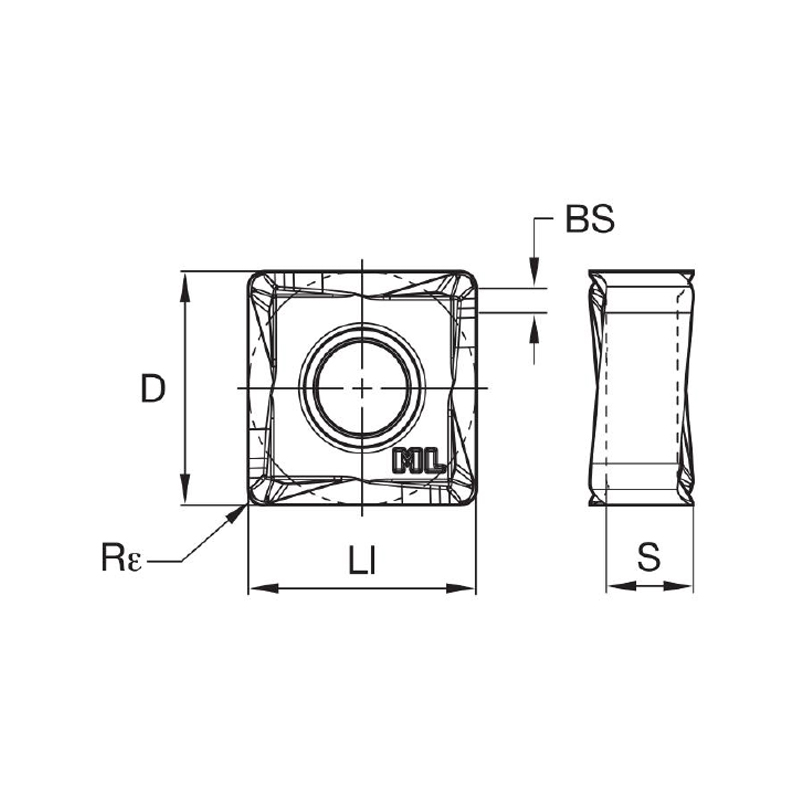

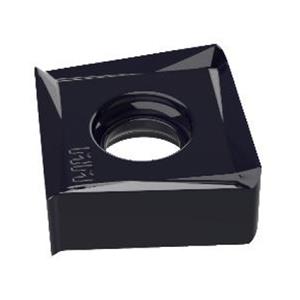

• Flat-aount double-sided 8 90-degree cutting edges, the first choice for side Billing and layer Billing

Excellent axial depth of cut performance, AP up to 10mm

• Blade integral wiper

MILL

CUTTER: B53

INSERT MODEL

EDGE Long

Dimension (mm)

GRADE

Ll

D

s

Bs

R

CT5420

CT7420

CT8320

CT8420

CT9320

SNHX 120508-M

12

12.7

12.7

4.6

1.34

0.8





INSERTS

SHAPE

INTRODUCTION

SUITABLE FOR

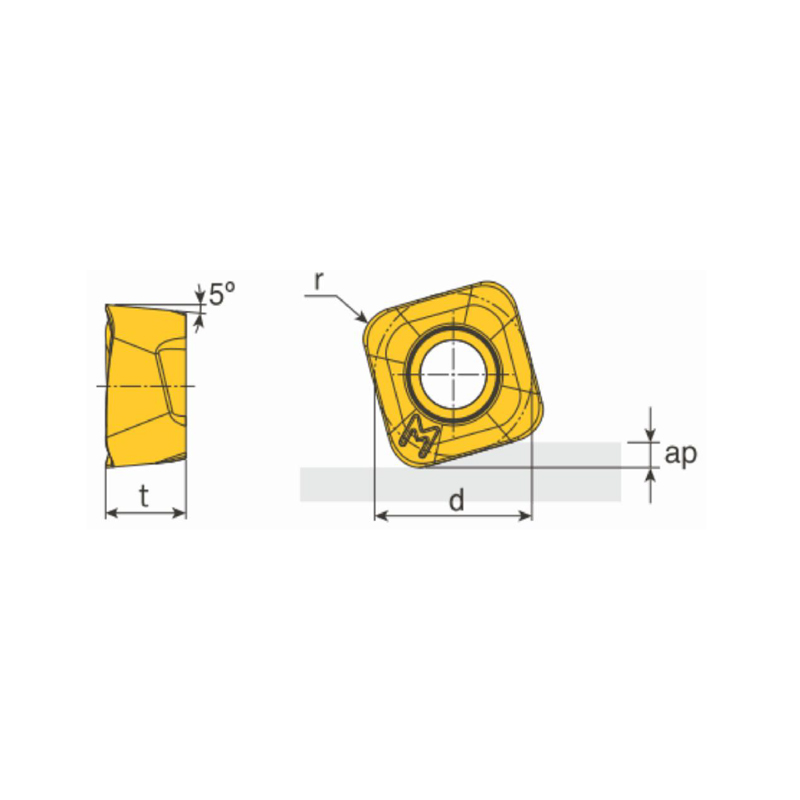

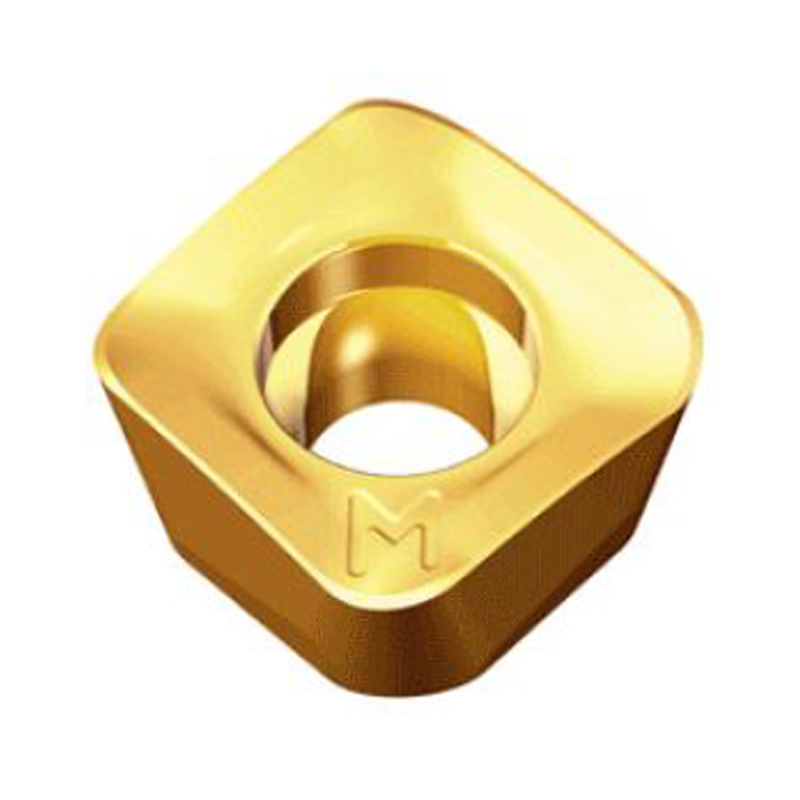

• Flat-aount 4-edge high-feed

blade • Maximum depth of cut 2. Omm • Positive inserts, with low cutting force, use machine tools with long overhangs and low power, which are used for roughing molds and

CUTTER: B76

INSERT MODEL

EDGE LENGTH

Dimension (mm)

GRADE

d

t

ap

r

CT5320

CT5420

CT7320

CT7420

SXMT 130625-M

13

13.05

6.65

2.0

2.5

Consultation You can Count on

With Over 20 years of persistent efforts by our team, We have grown into one of the high-end professional SN**12、SX**13 Milling Inserts suppliers and Wholesale SN**12、SX**13 Milling Inserts company in China. Chai Cutting Tools strictly implements procedures such as screening and auditing of raw material suppliers, incoming material testing, and incoming material comparison; first-class production process design and program control make each batch of products more stable and traceable, and obtain efficient production control. OEM/ODM available.

The following information is help you to understand more:

  • Industry experience: Over 20 years
  • Product Category: 10000+
  • Number of patents: 41
  • Plant area: 3000m²+
  • Technician: 30+
  • Annual Production Capacity: 90 million (100,000 steel products,
    10 million blades)
