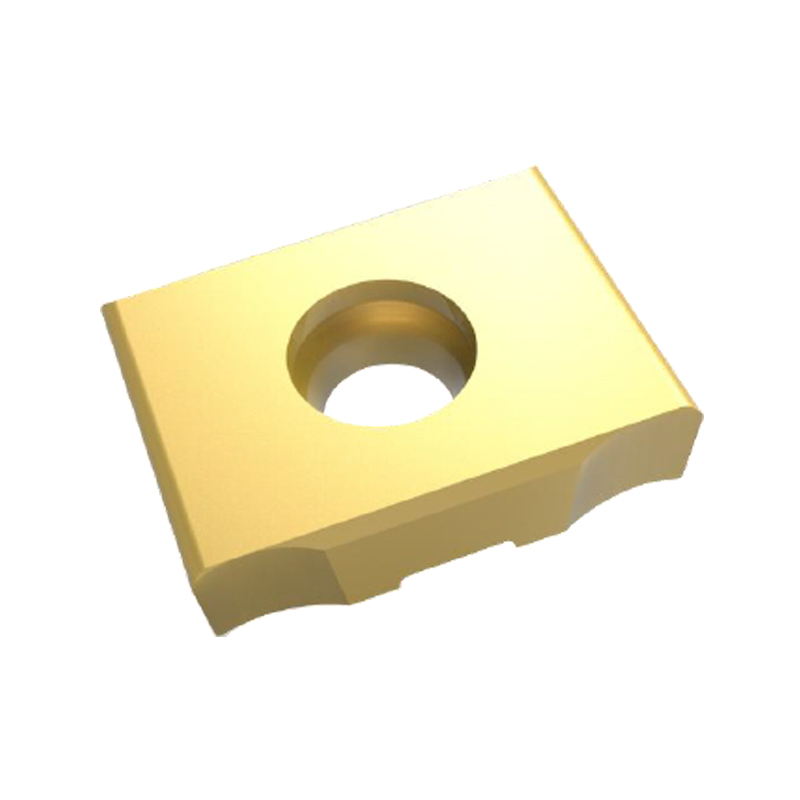

ZN**023-073 Milling Inserts

INSERTS

SHAPE

INTRODUCTION

SUITABLE FOR

• Vertical blade

• Three-sided blade commonly used blade Connonly used in the design of the three- sided blade cutter head with a cutting width of 4-14_

Three-sided CUTTER: B109 Three-sided CUTTER: B113

INSERT MODEL

EDGE LENGTH

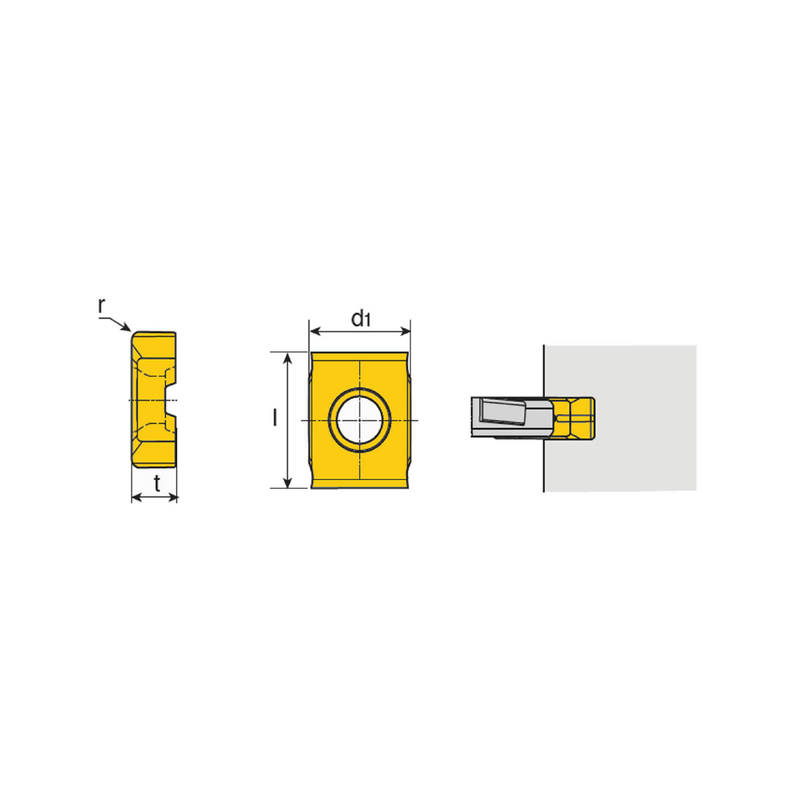

Dimension (mm)

FEED mn/TEETH

GRADE

1

dl

t

r

(mm/TEETH)

CT5320

ZNHT 018-04-ML

018

10

7.5

1.8

0.4

0. 05 〜0. 08

•

ZNHT 023-04-ML

023

10

7.5

2.3

0.4

0. 05 〜0. 08

•

ZNHT 028-04-ML

028

10

7.5

2.8

0.4

0. 05 〜0. 08

•

ZNHT 033-04-ML

033

10

7.5

3.3

0.4

0. 05 〜0. 12

•

ZNHT 038-04-ML

038

13

10

3.8

0.4

0. 05 〜0.12

•

ZNHT 043-04-ML

043

13

10

4.3

0.4

0. 05 〜0.12

•

ZNHT 043-08-ML

043

13

10

4.3

0.8

0. 05 〜0.12

•

ZNHT 048-04-ML

048

13

10

4.8

0.4

0. 05 〜0.12

•

ZNHT 048-08-ML

048

13

10

4.8

0.8

0. 05 〜0.12

•

ZNHT 053-04-ML

053

13

10

5.3

0.4

0. 05 〜0.12

•

ZNHT 053-08-ML

053

13

10

5.3

0.8

0. 05 〜0.12

•

ZNHT 058-04-ML

058

15

12

5.8

0.4

0. 05 〜0.12

•

ZNHT 058-08-ML

058

15

12

5.8

0.8

0. 05 〜0.12

•

ZNHT 063-04-ML

063

15

12

6.3

0.4

0. 05 〜0.12

•

ZNHT 063-08-ML

063

15

12

6.3

0.8

0. 05 〜0.12

•

ZNHT 068-08-ML

068

15

12

6.8

0.8

0. 05 〜0.12

•

ZNHT 068-12-ML

068

15

12

6.8

1.2

0. 05 〜0.12

•

ZNHT 073-08-ML

073

15

12

7.3

0.8

0. 05 〜0.12

•

ZNHT 073-12-ML

073

15

12

7.3

1.2

0. 05 〜0.12

•
